Glove Compartment Lock Cylinder: Service and Repair
AR68.10-P-1250SX Remove/install Lock Cylinder On Glove Compartment Lock

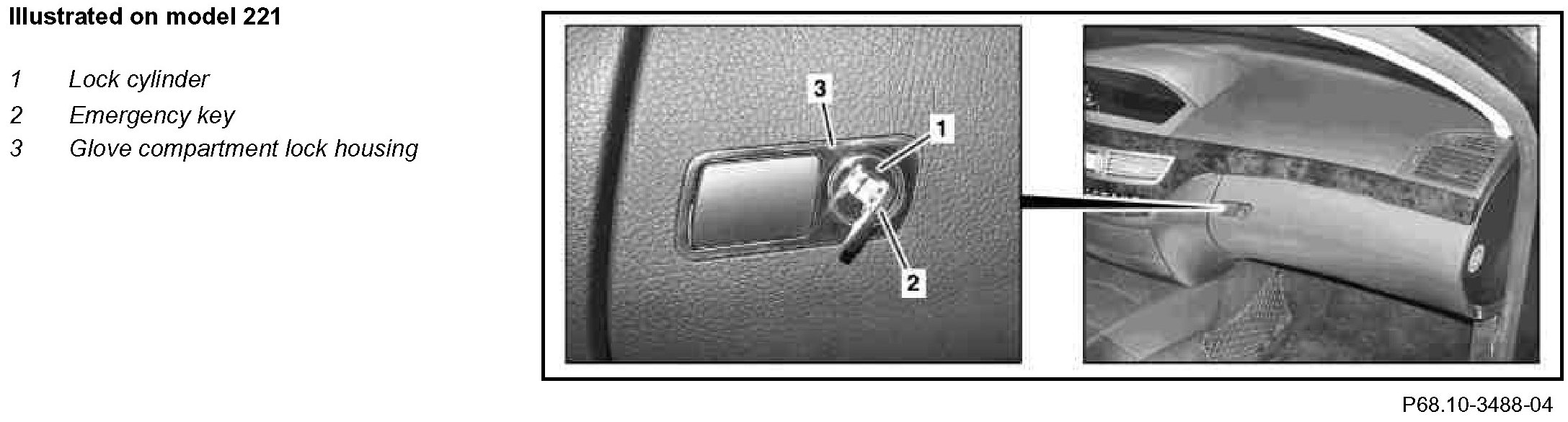

Component Identification:

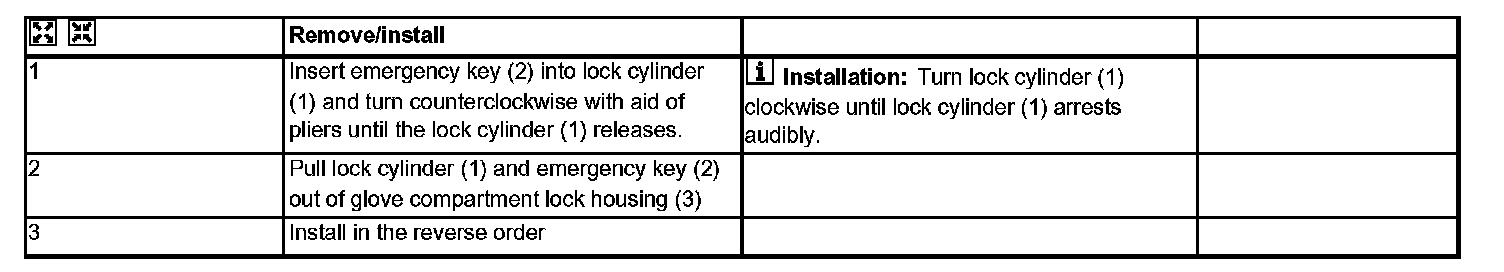

Steps 1-3:
