AR68.10-P-1000-05EW Remove, Install Cover on Instrument Panel

AR68.10-P-1000-05EW Remove, Install Cover On Instrument Panel

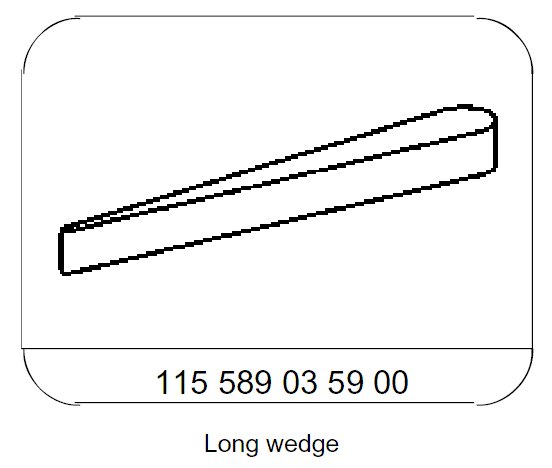

Special Tools:

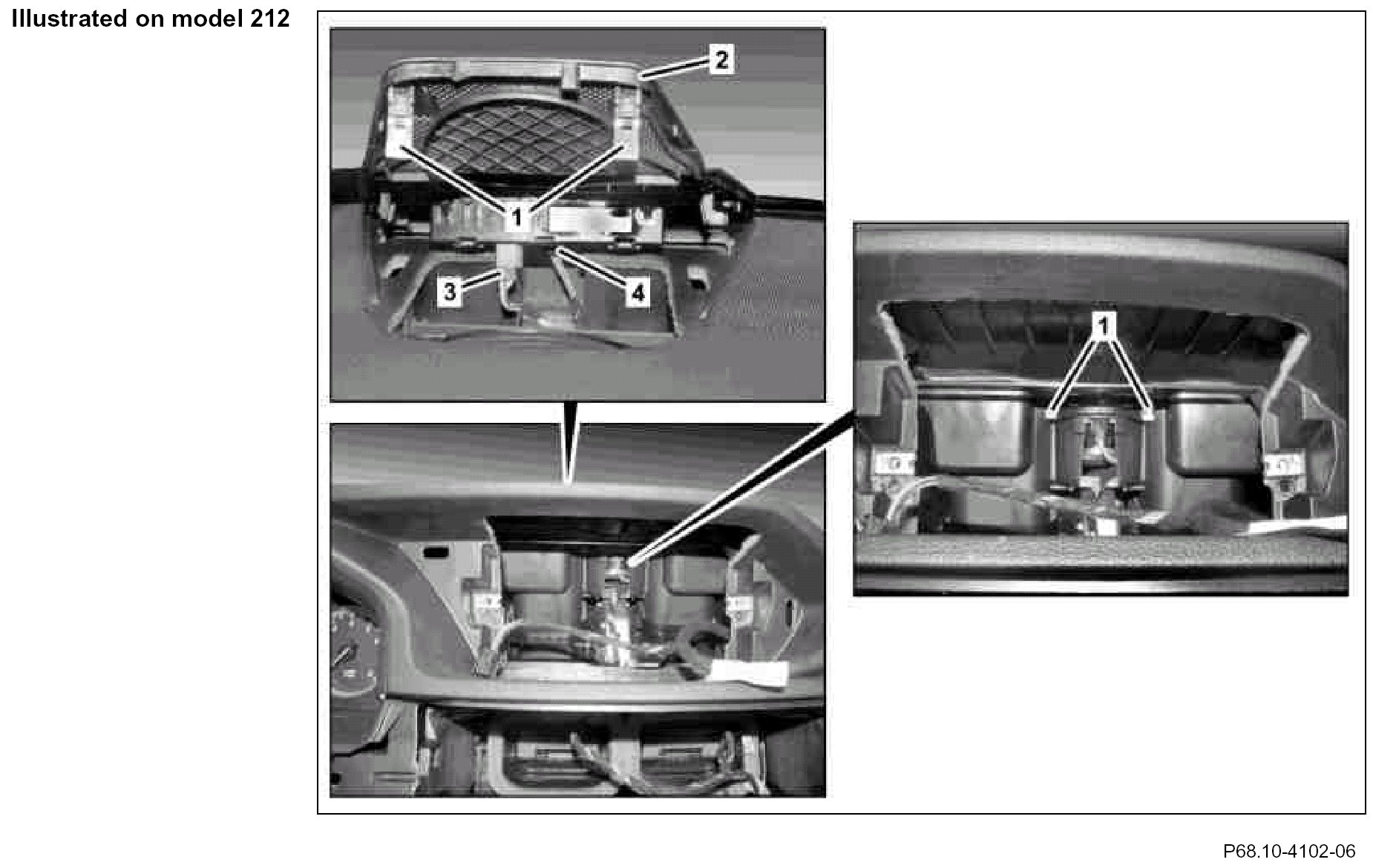

1. Remove catch hooks (1) with long wedge through shaft of Audio/COMAND display and remove cover (2) upward from instrument panel.
2. Remove cover (2) from instrument panel.
3. Disconnect electrical connector (3) from PARKTRONIC instrument panel warning indicator.
Only on vehicles with code (220) PARKTRONIC or with code (230) Exclusive parking assist

4. Disconnect electrical connector (4) from sun sensor.
5. Install in the reverse order.
