AR68.20-P-2420EW Remove/Install Stowage Compartment or Ashtray Housing



AR68.20-P-2420EW Remove/Install Stowage Compartment or Ashtray Housing
- with CODE (279) Electronic gear selector

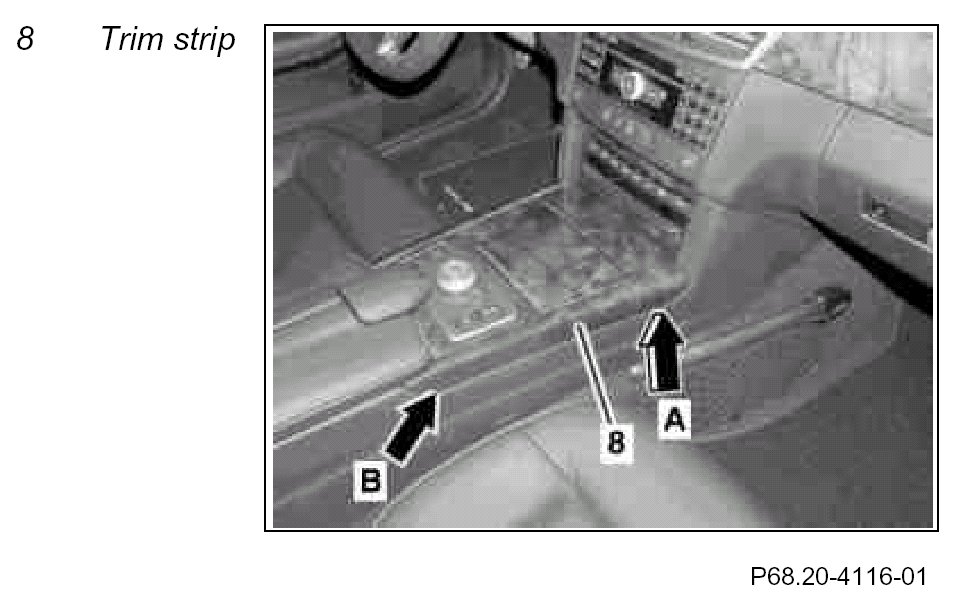

Component Identification:

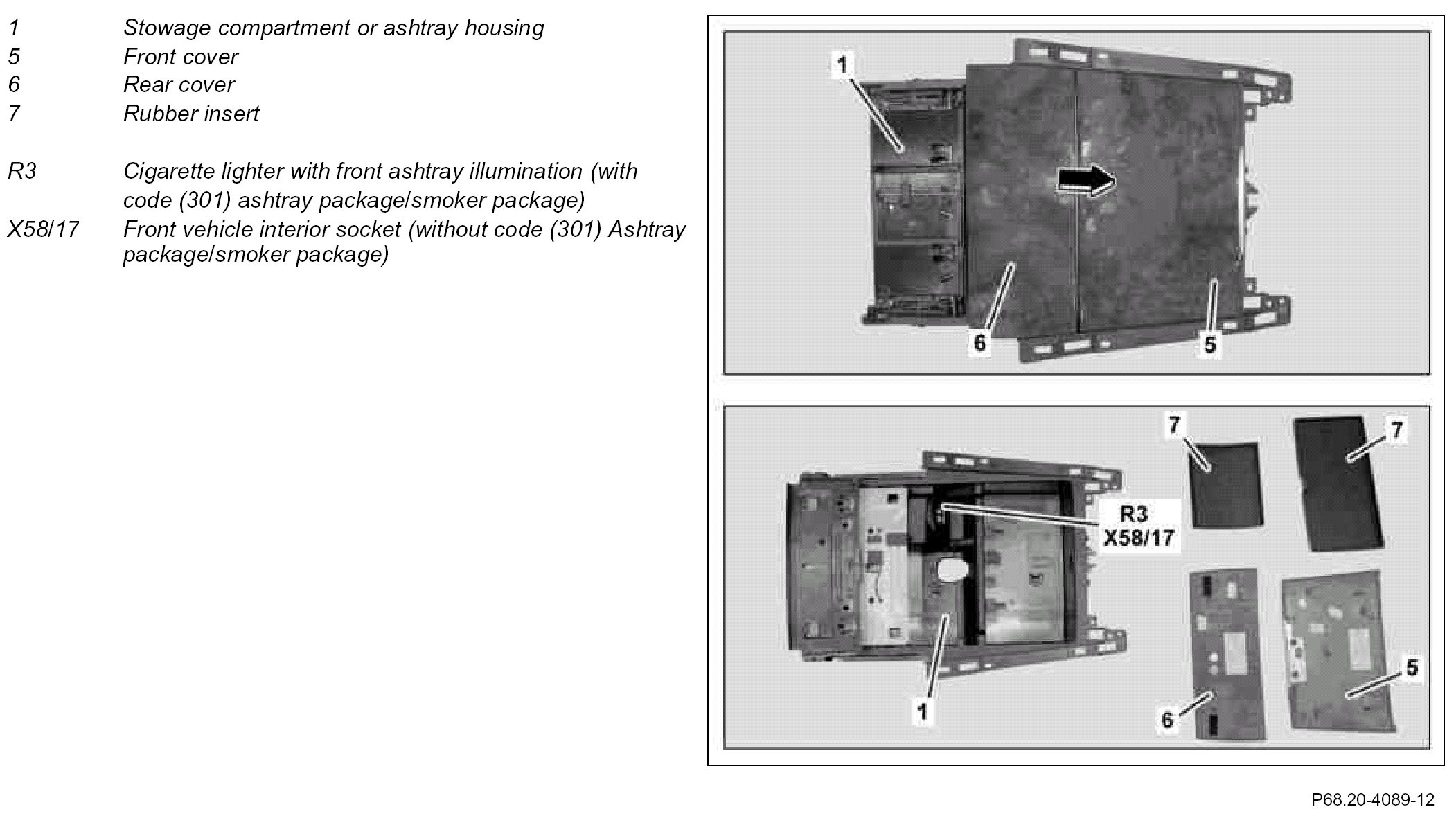

Component Identification:

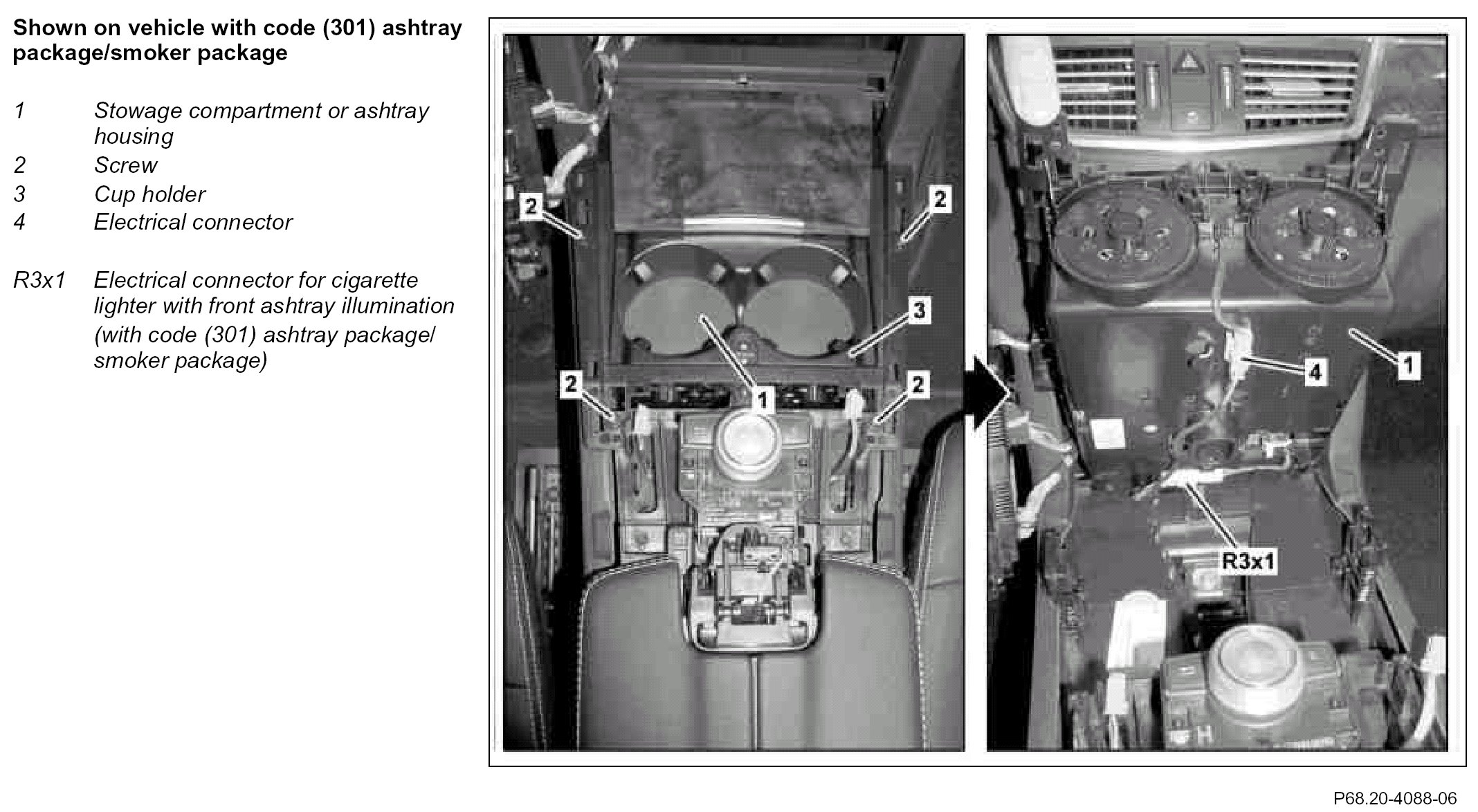

Component Identification:

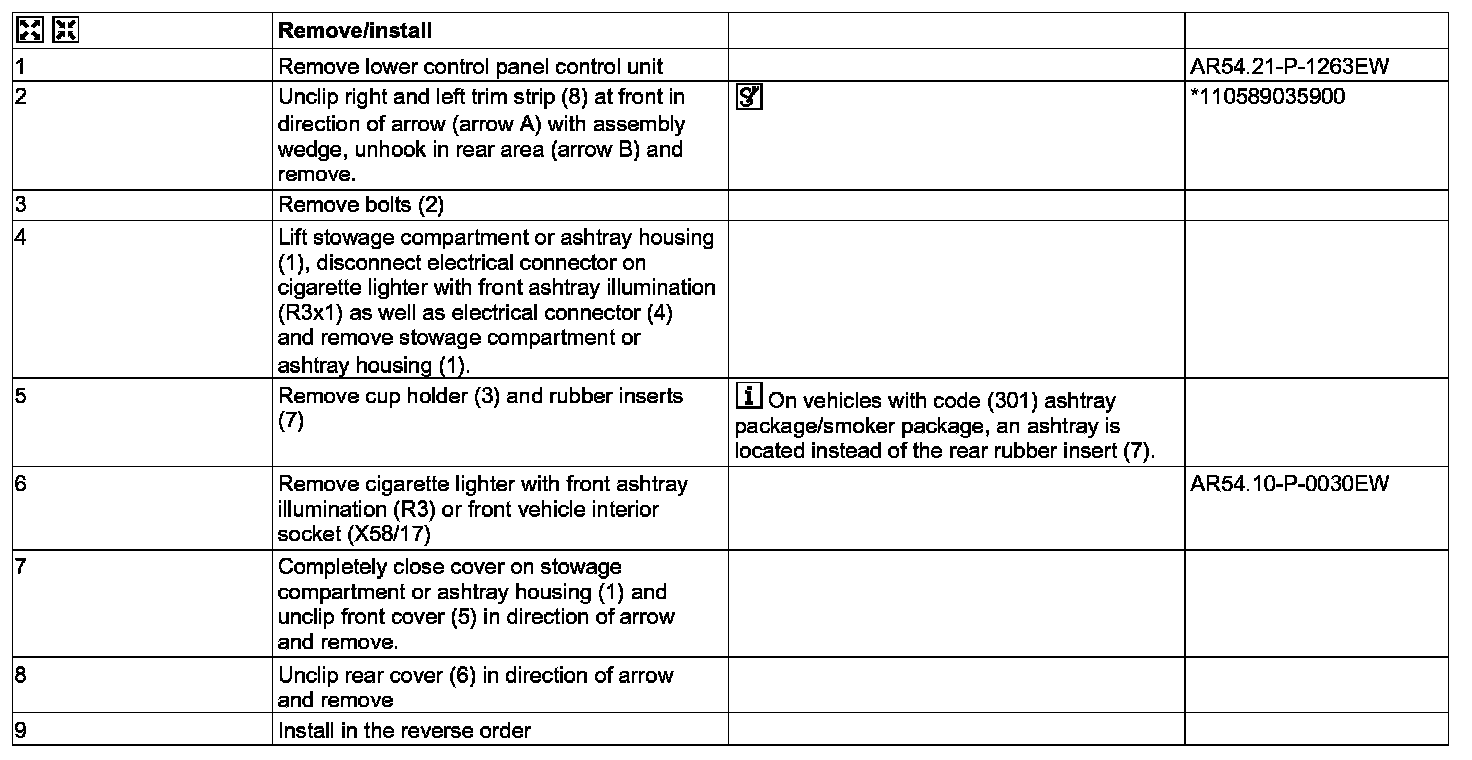

Steps 1 - 9:

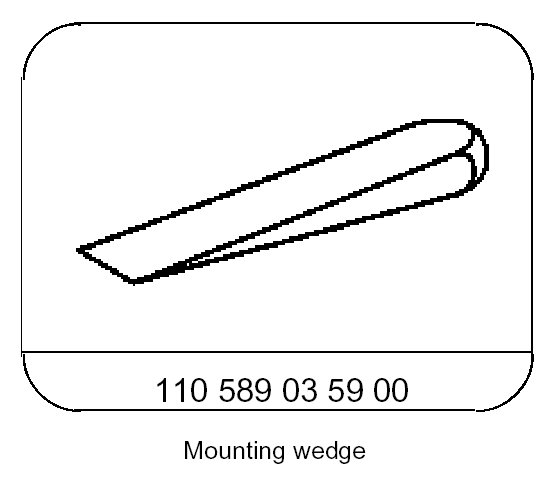

Special Tools:
