AR68.20-P-2150EW Disassemble/Assemble Center Console



AR68.20-P-2150EW Disassemble/Assemble Center Console
- with CODE (279) Electronic gear selector

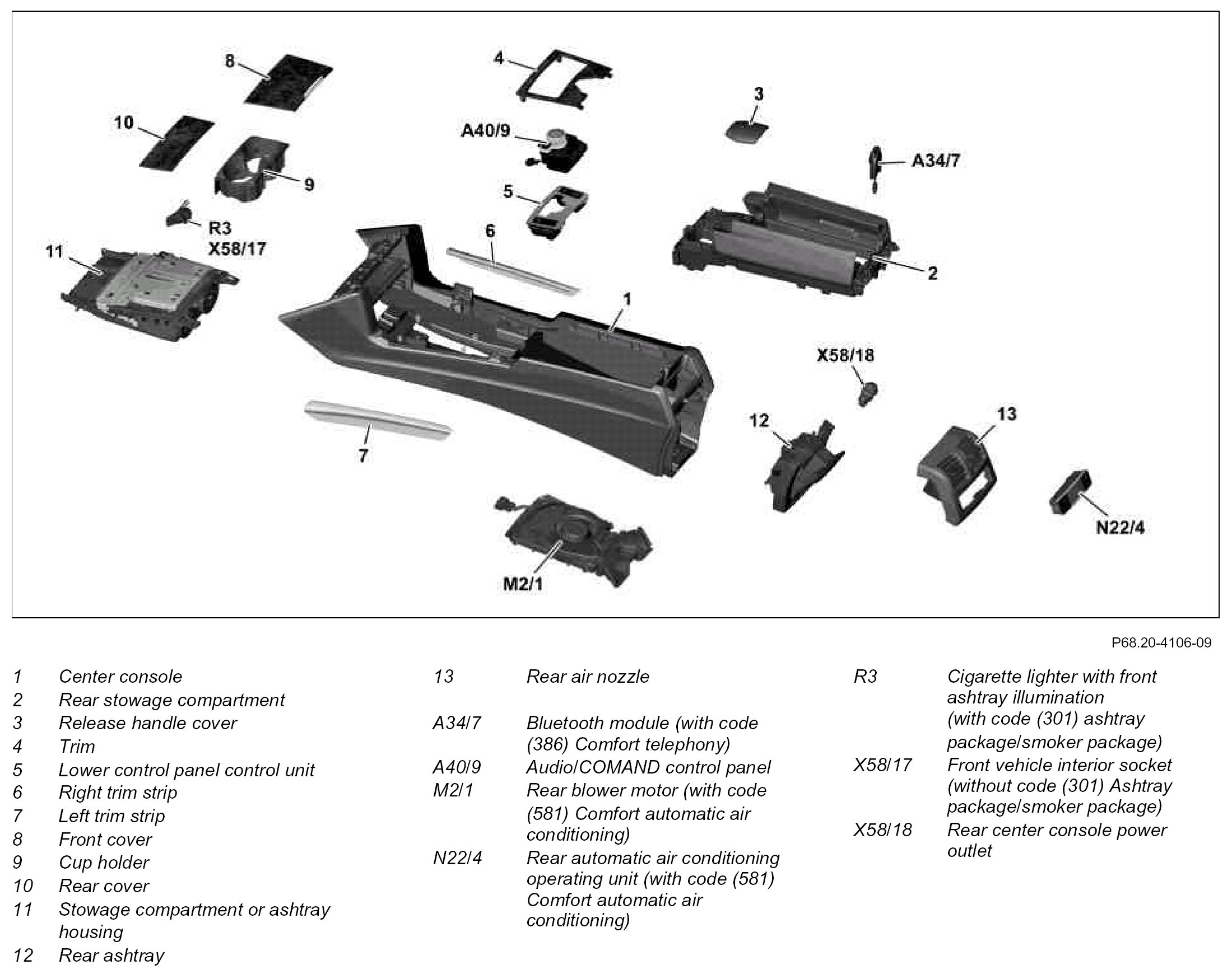

Component Identification:

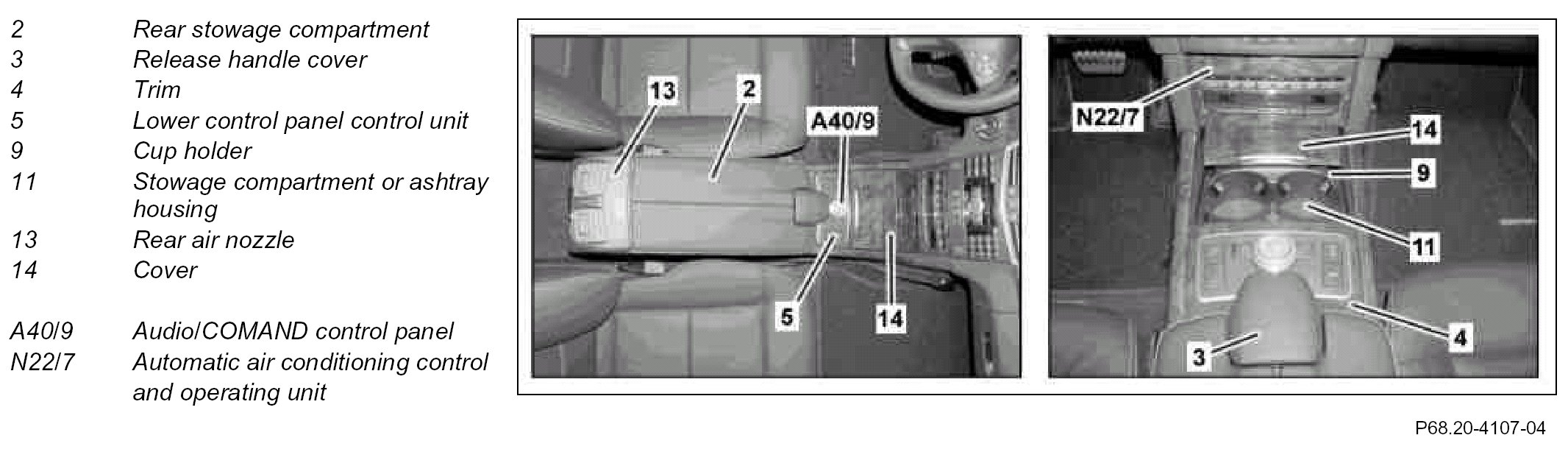

Component Identification:





Component Identification:

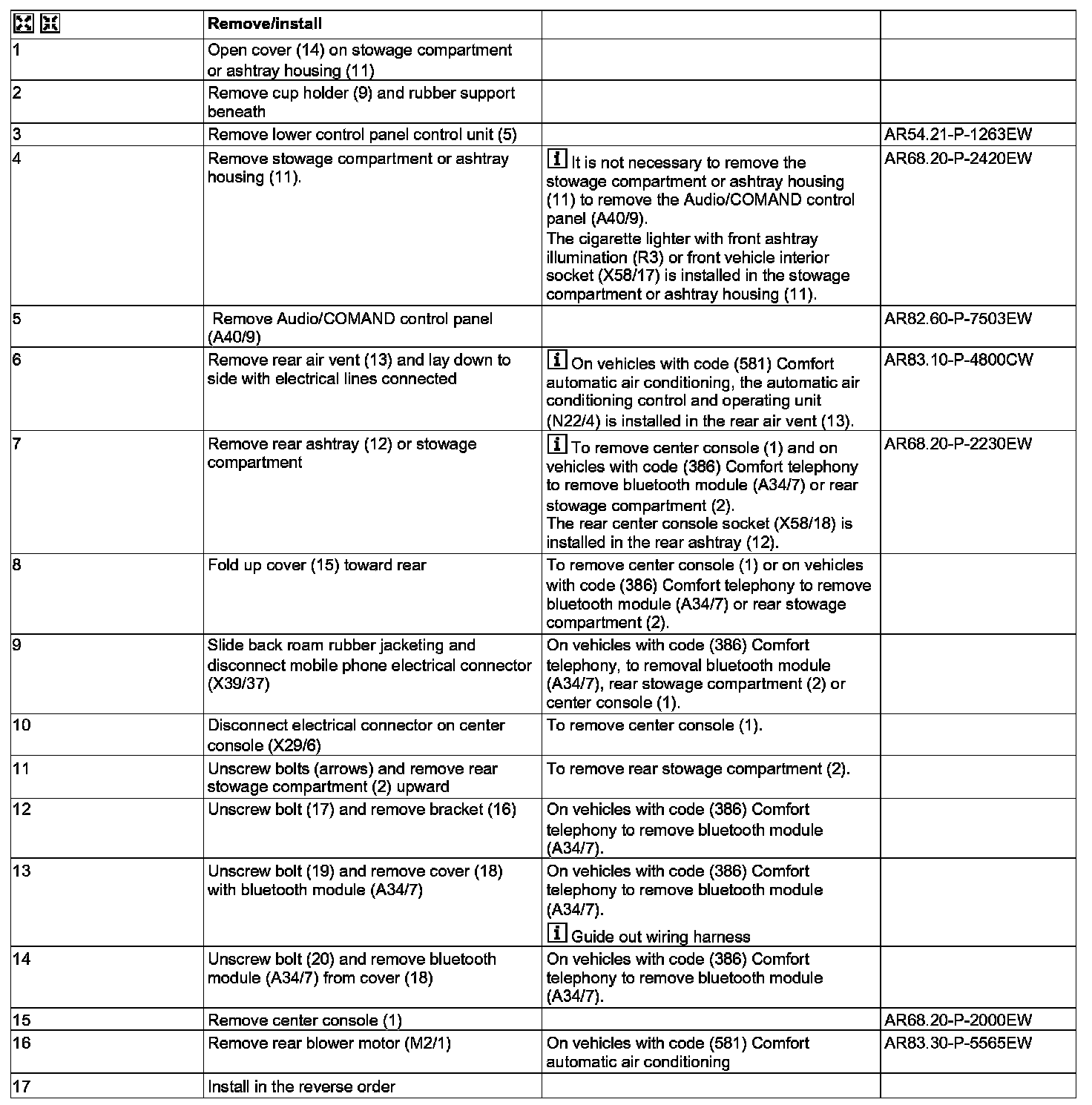

Steps 1 - 17:
