AR68.20-P-2020EW Remove/Install Rear Center Console



AR68.20-P-2020EW Remove/Install Rear Center Console
- with CODE (224) Rear individual seat design

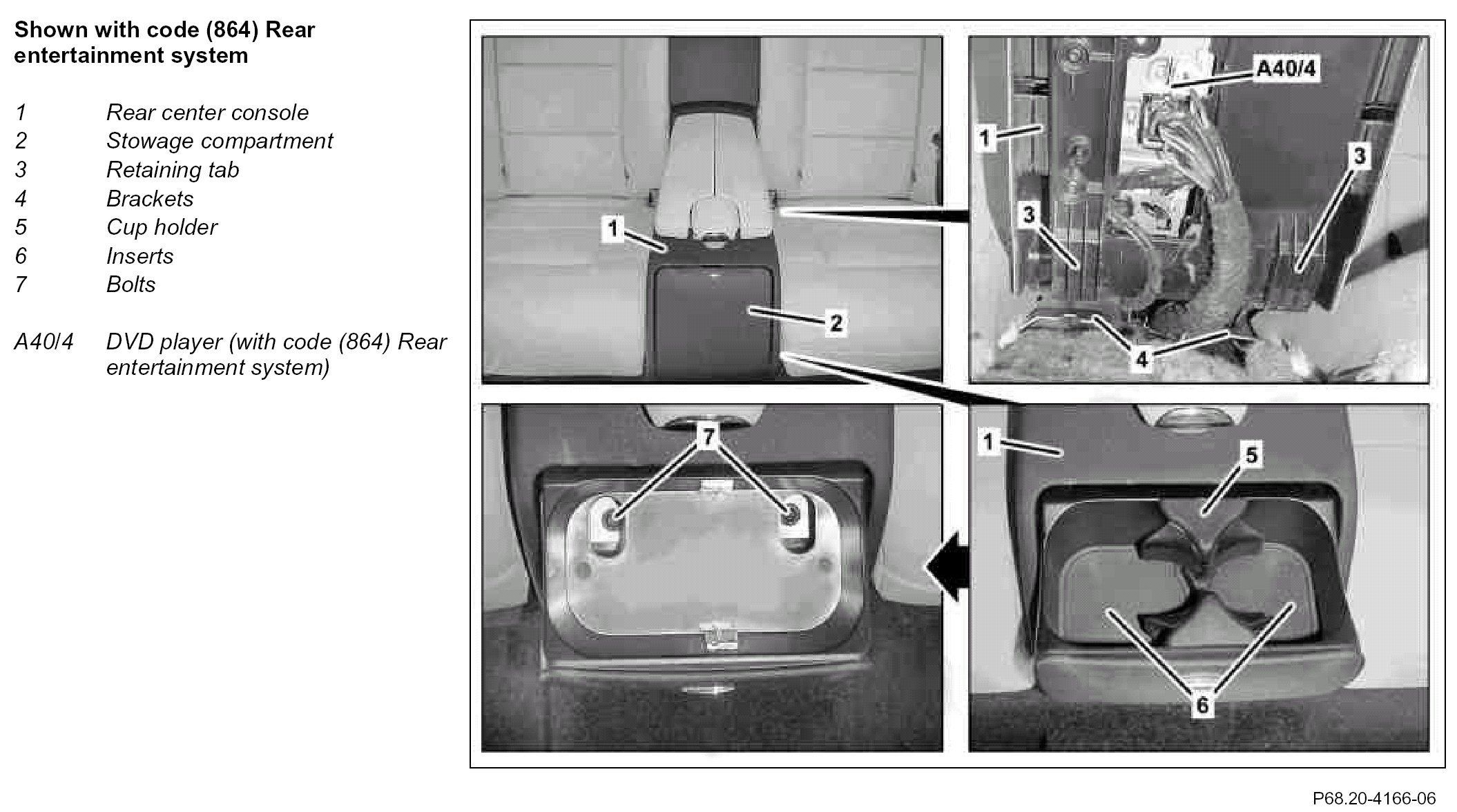

Component Identification:

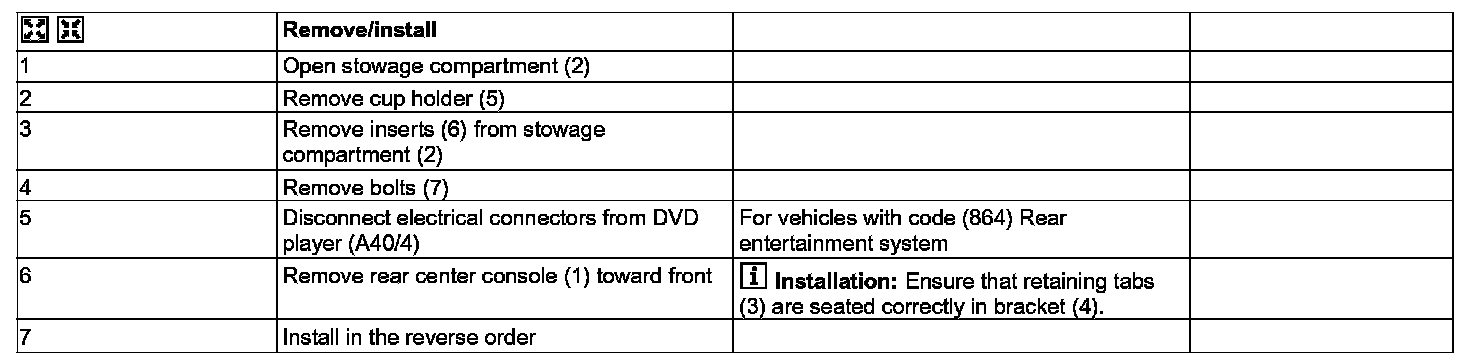

Steps 1 - 7:
