AR68.20-P-2000EW Remove/Install Center Console
AR68.20-P-2000EW Remove/Install Center Console
AR68.20-P-2000EW Remove/Install Center Console

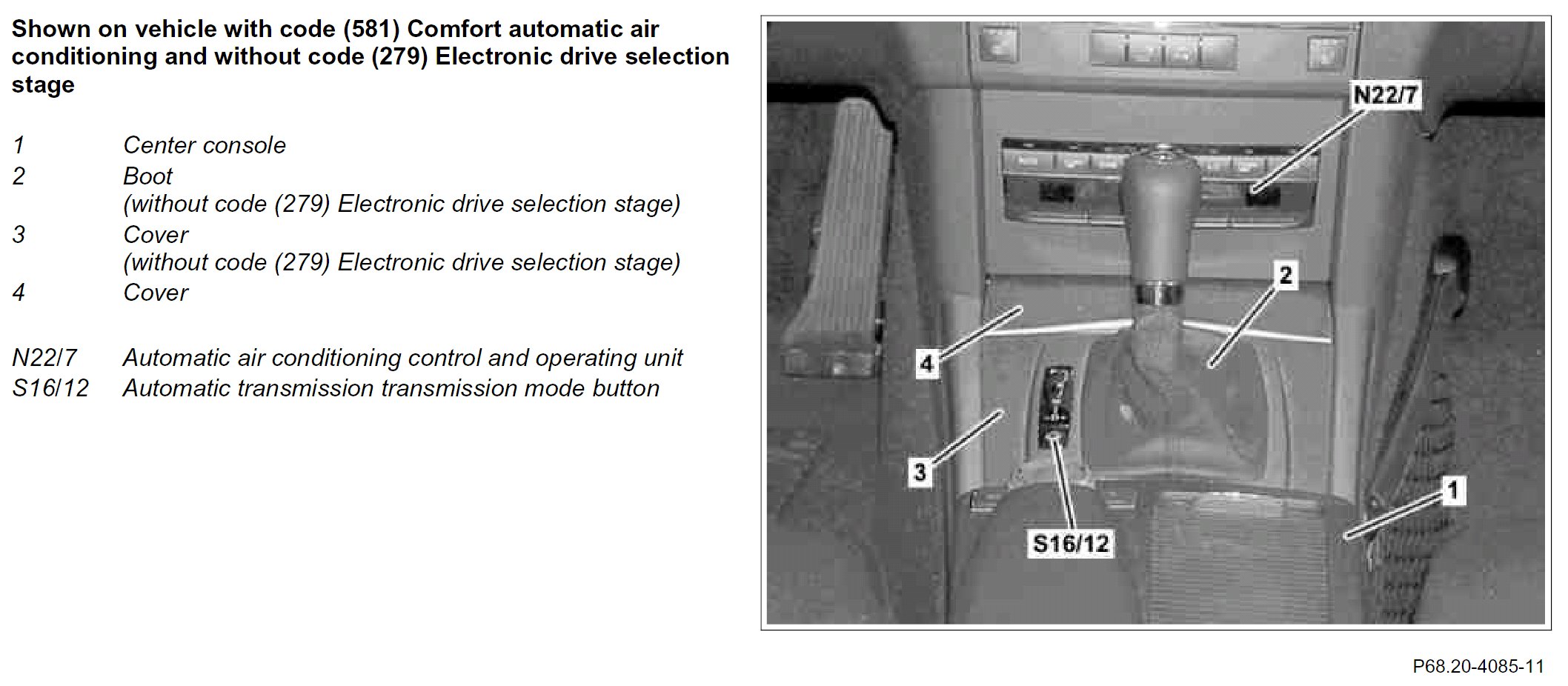

Component Identification:

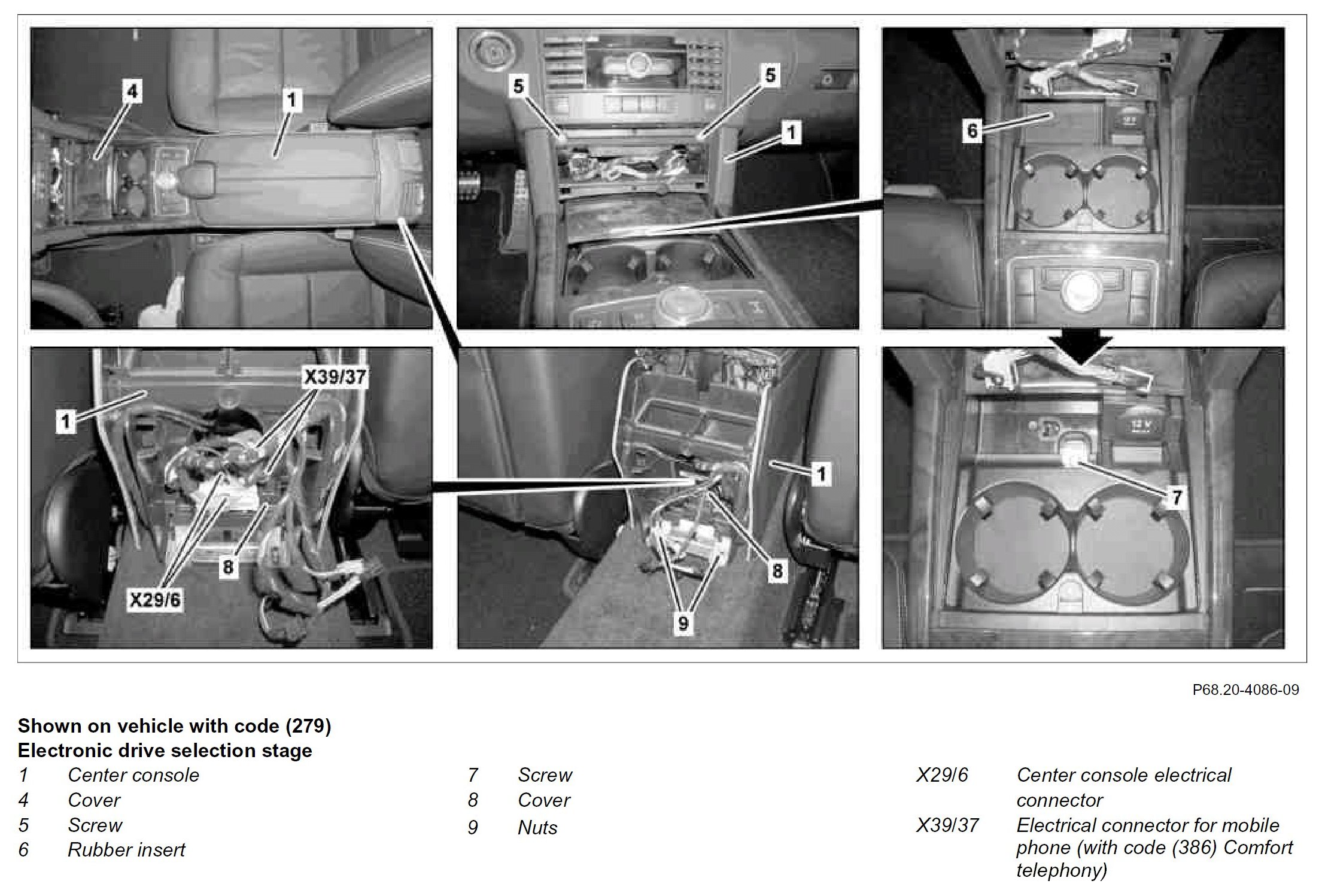

Component Identification:

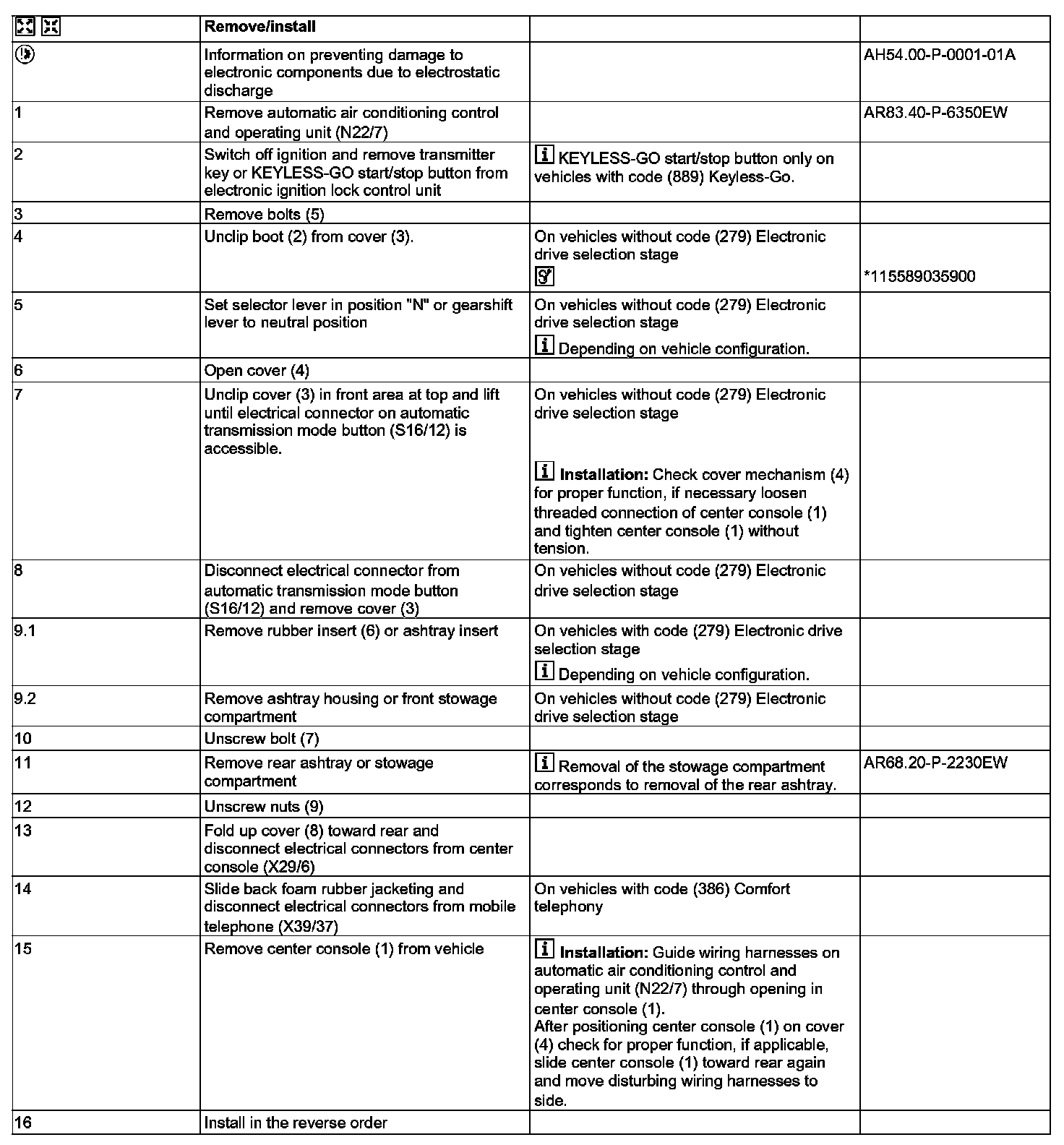

Steps 1 - 16:

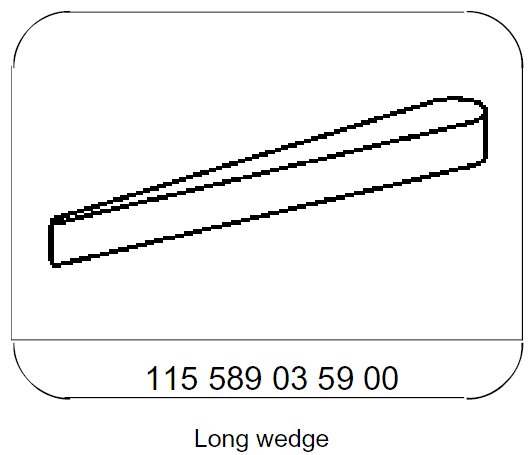

Special Tools:
