Overhaul
AR68.20-P-2150CW Disassemble/Assemble Center Console

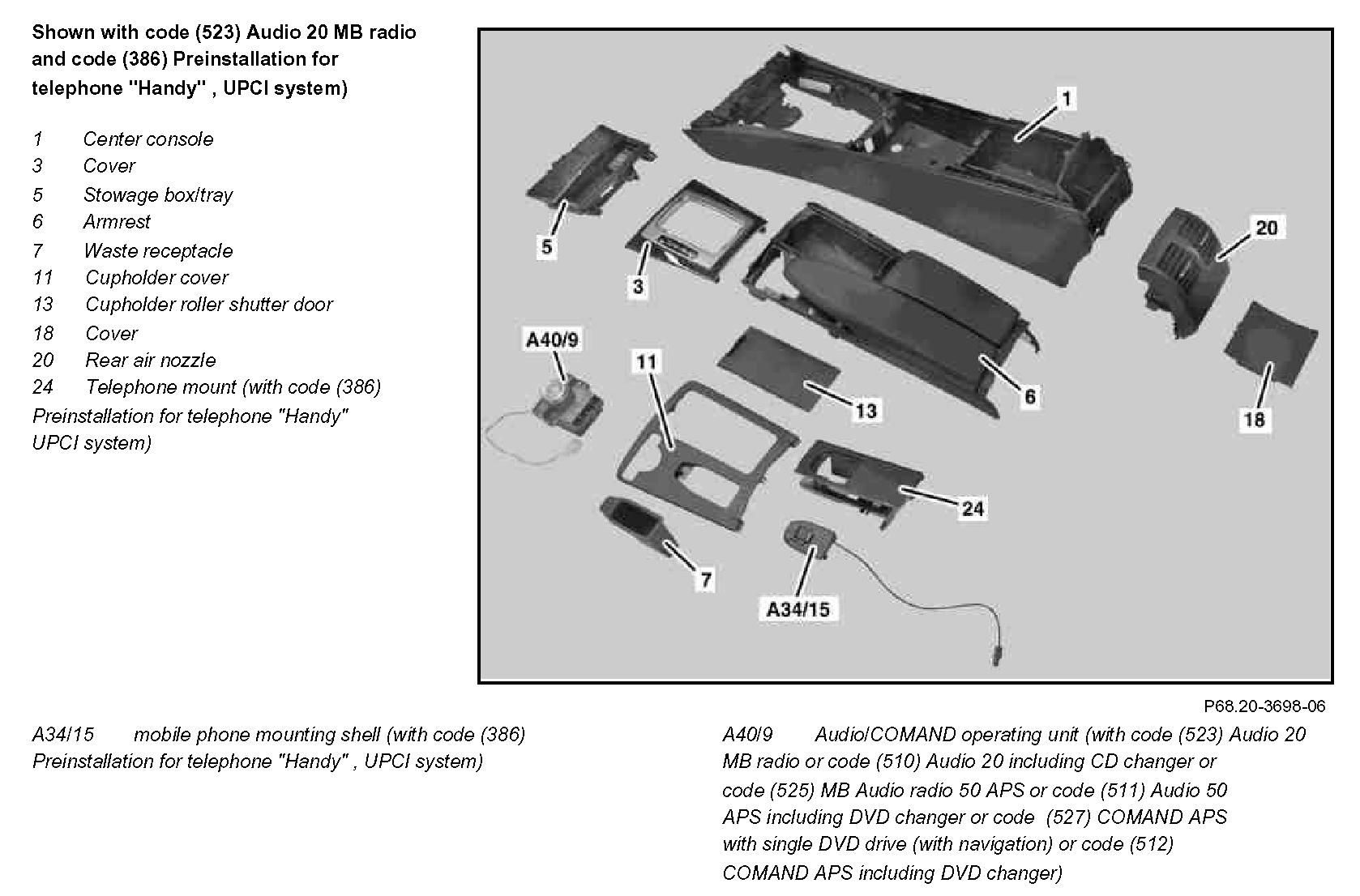

Component Identification:

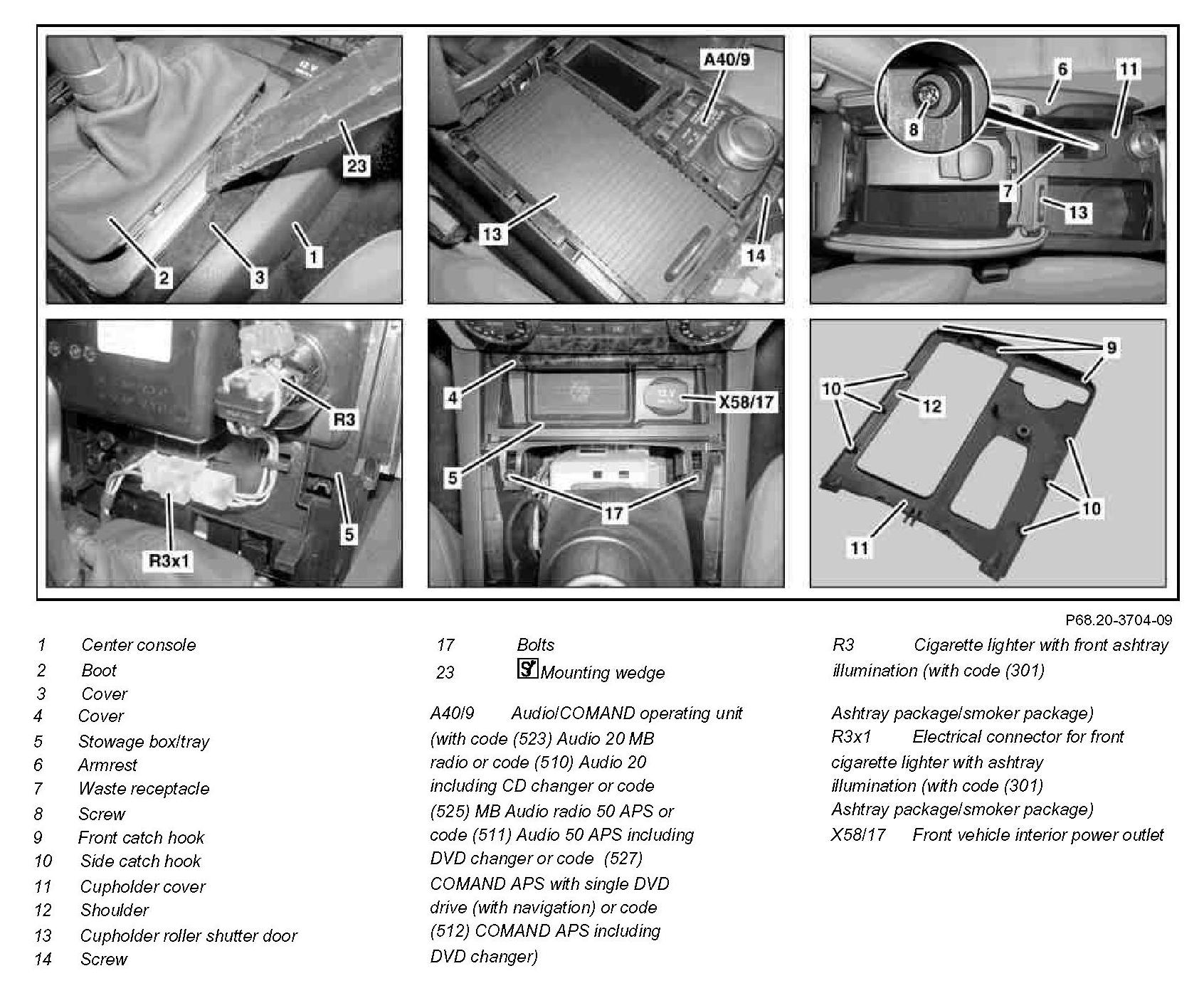

Component Identification:

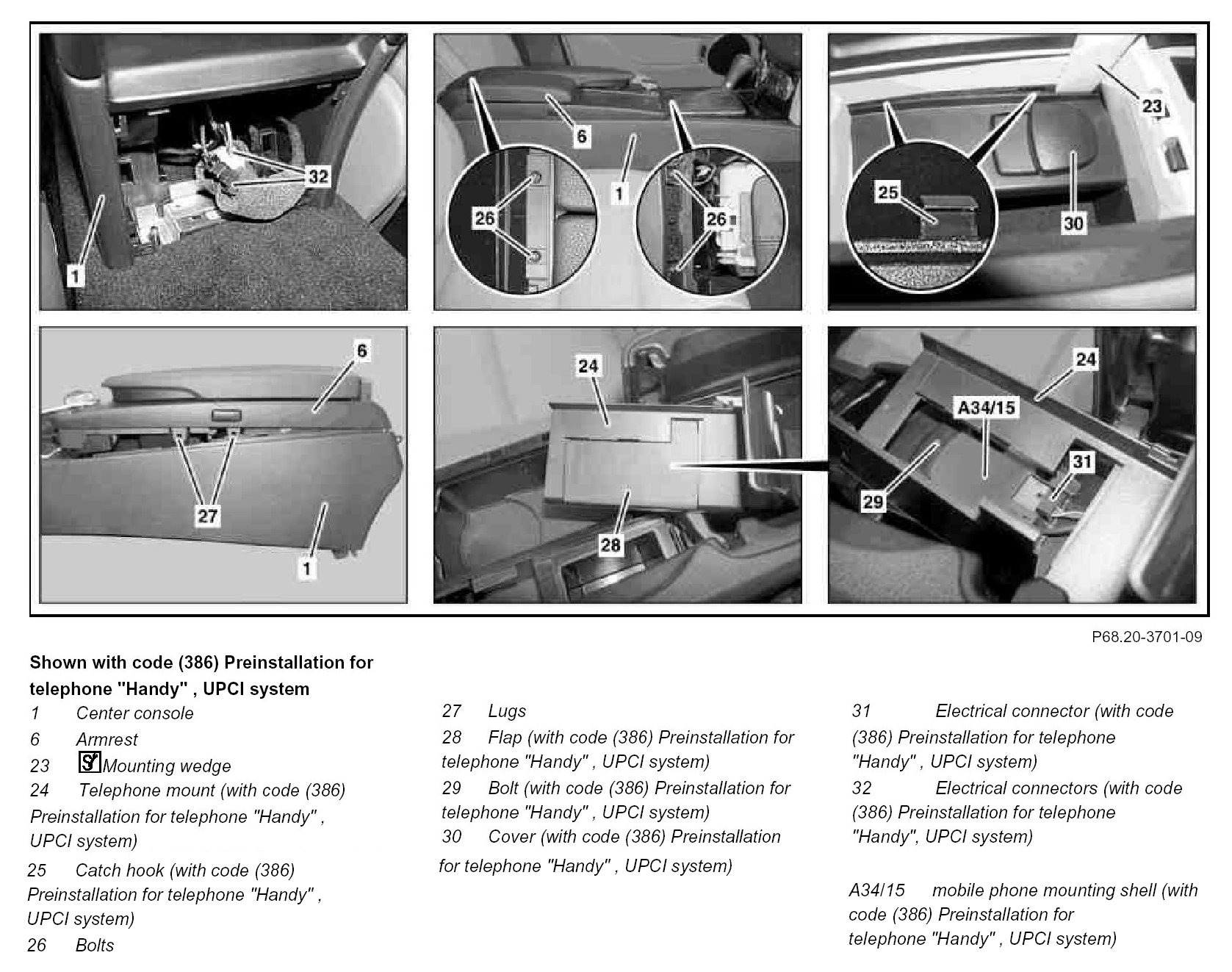

Component Identification:
Component Identification:

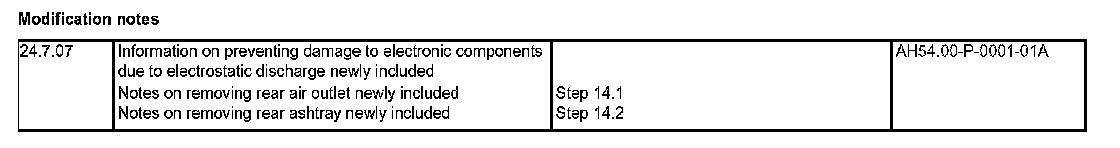

Modification Notes:

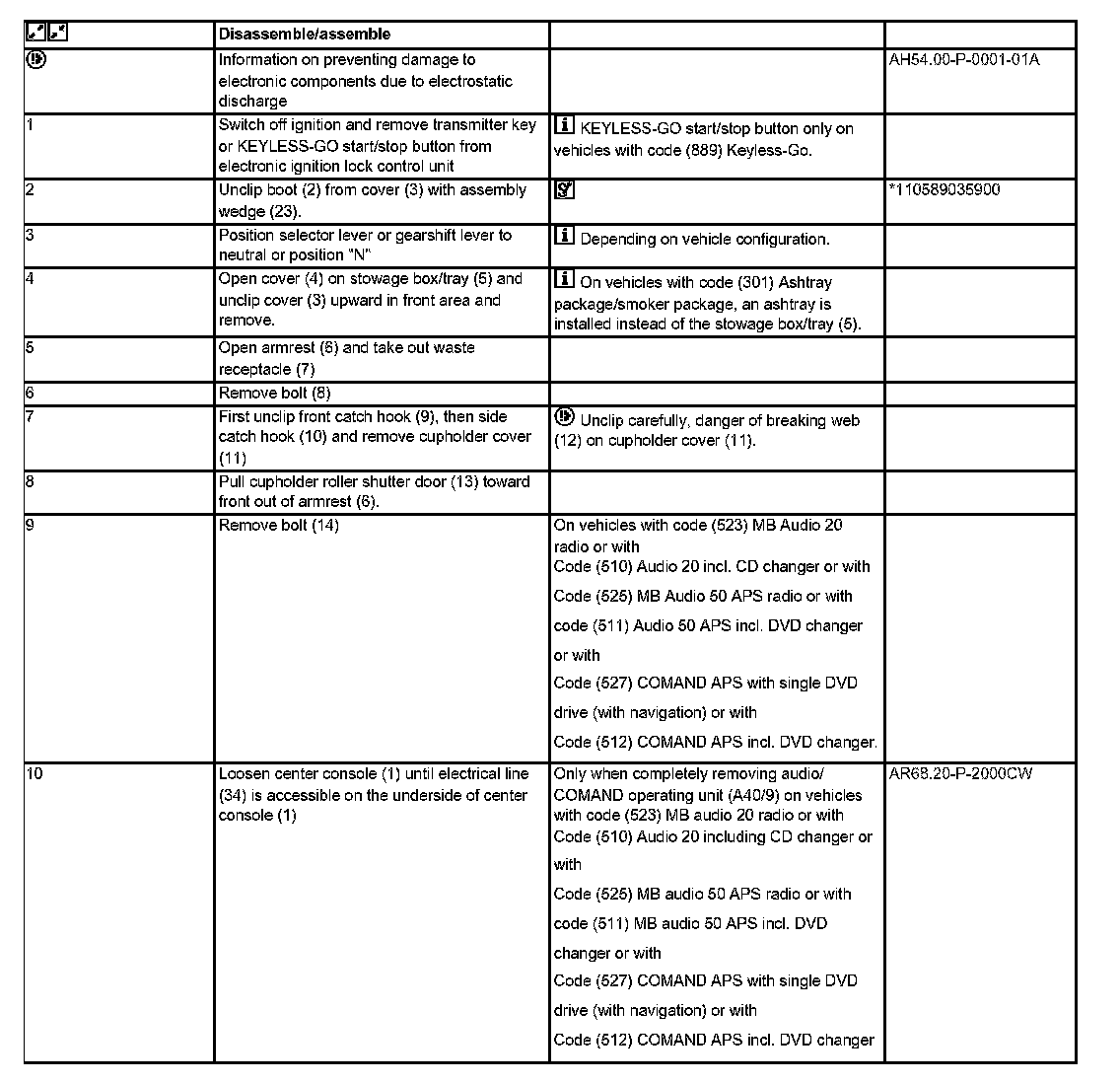

Steps 1 - 10:
Steps 11 - 22:
Special Tools:
AR68.20-P-2150CW Disassemble/Assemble Center Console
