AR68.20-P-2230EW Remove/Install Rear Ashtray
AR68.20-P-2230EW Remove/Install Rear Ashtray
AR68.20-P-2230EW Remove/Install Rear Ashtray

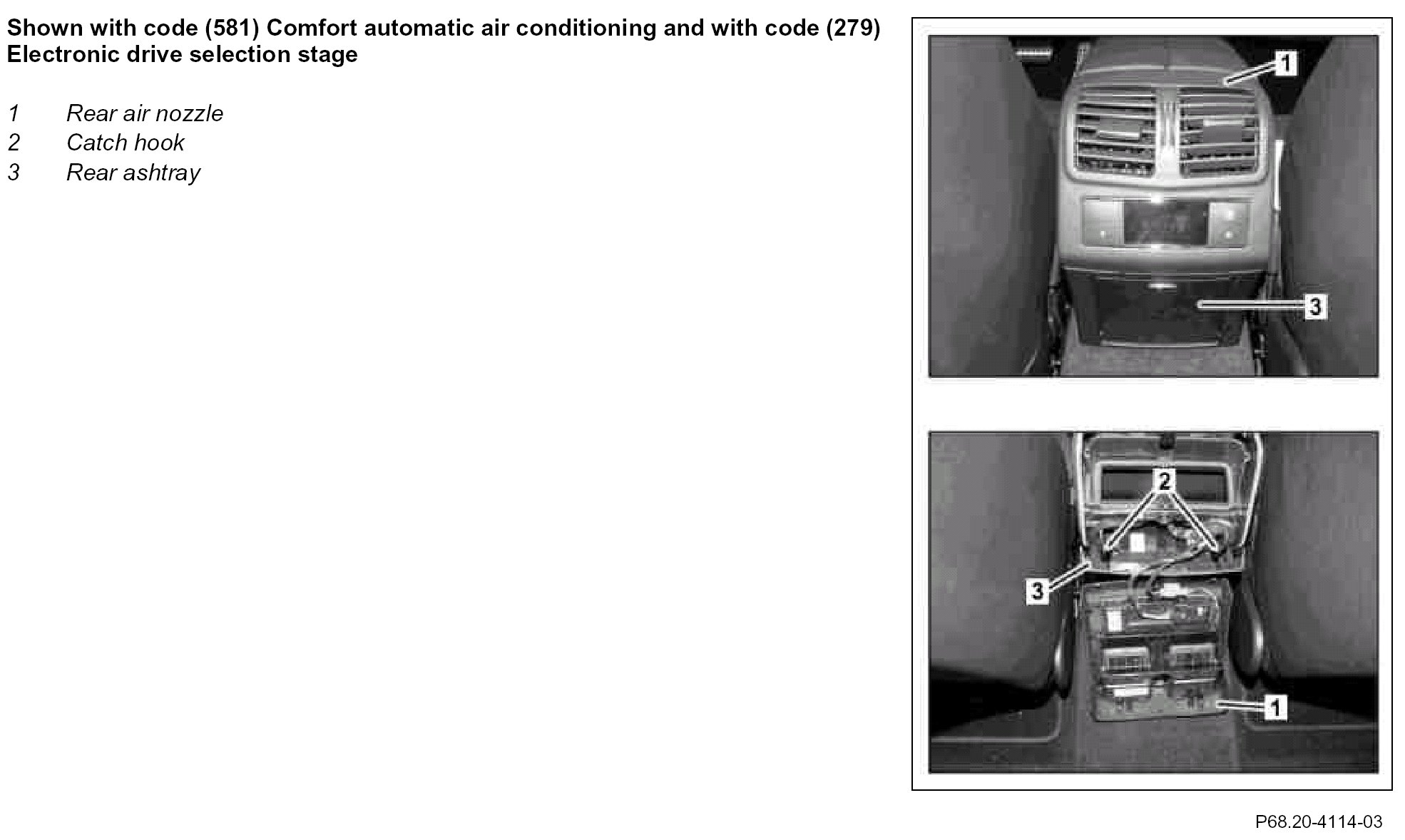

Component Identification:

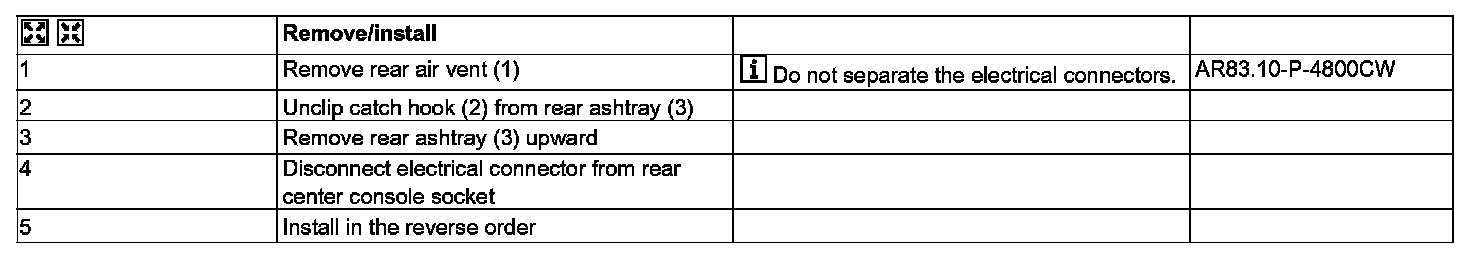

Steps 1 - 5:
