Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Body and Frame >> Exterior Moulding / Trim >> Lower Side Moulding / Trim >> Service and Repair

Lower Side Moulding / Trim: Service and Repair



AR88.80-P-6000EW Remove/Install Longitudinal Member Paneling

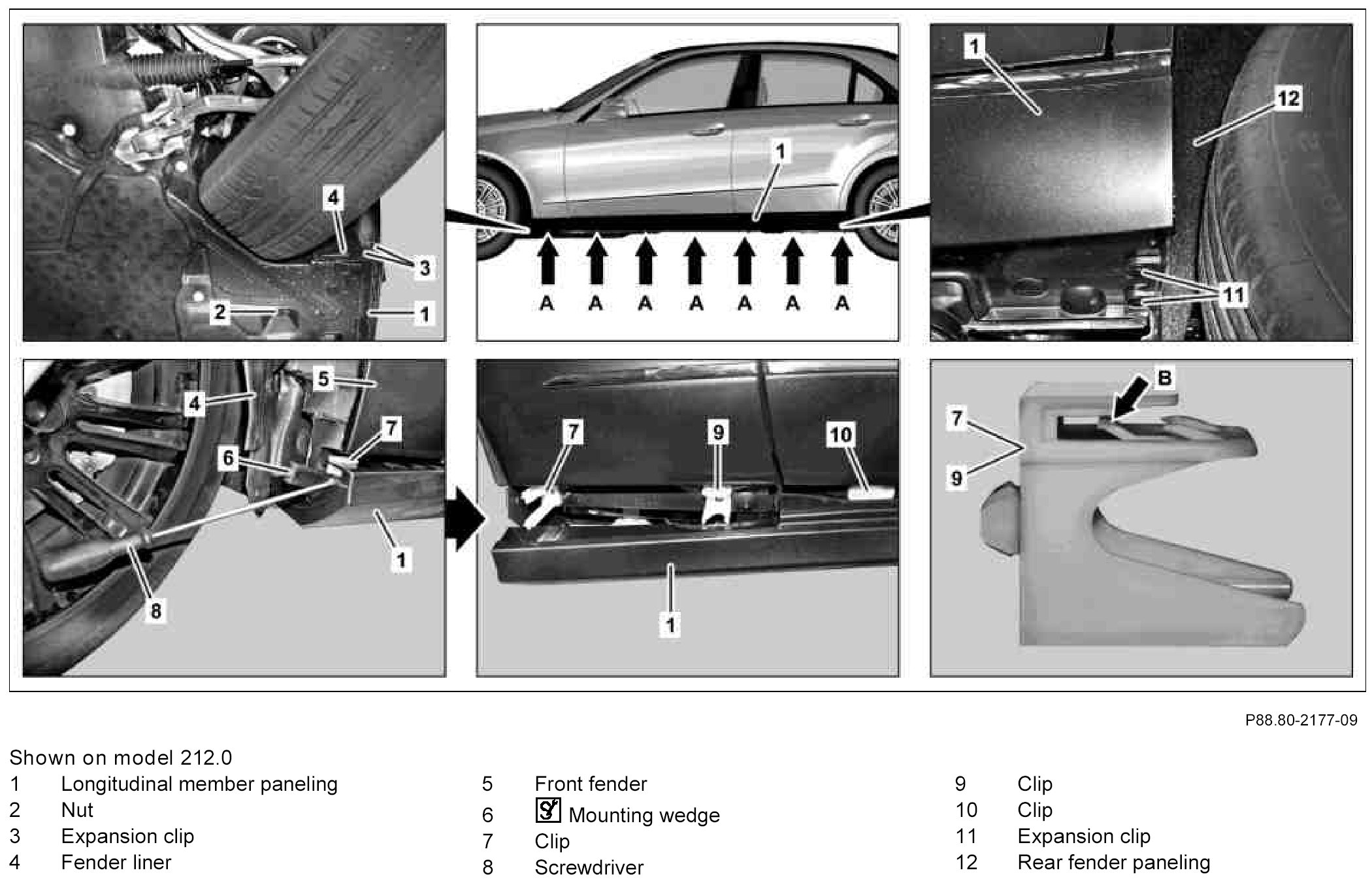

Component Identification:

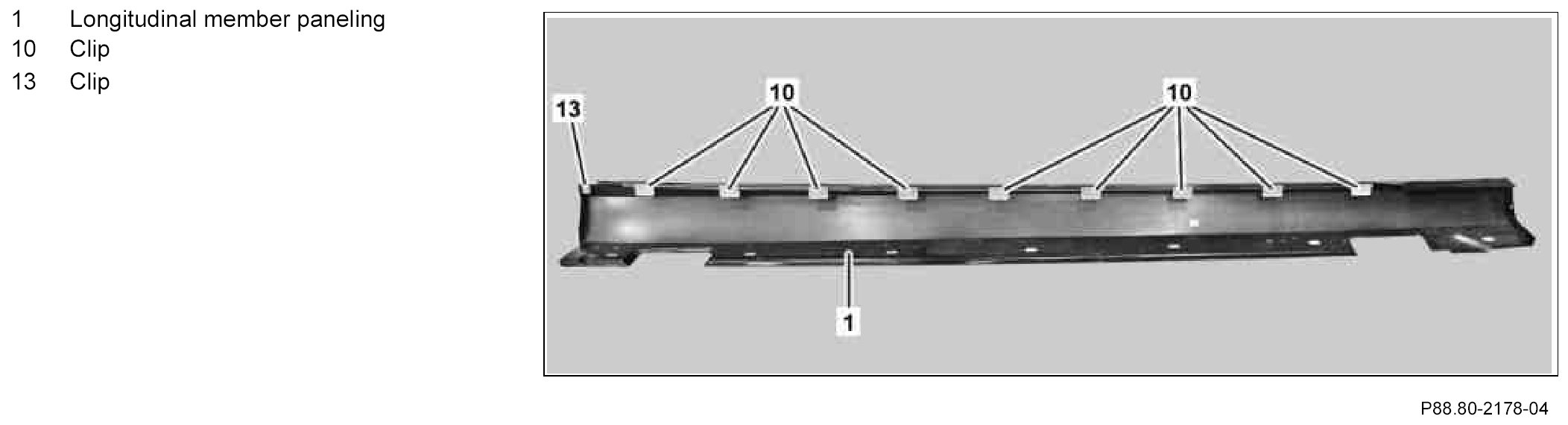

Component Identification:

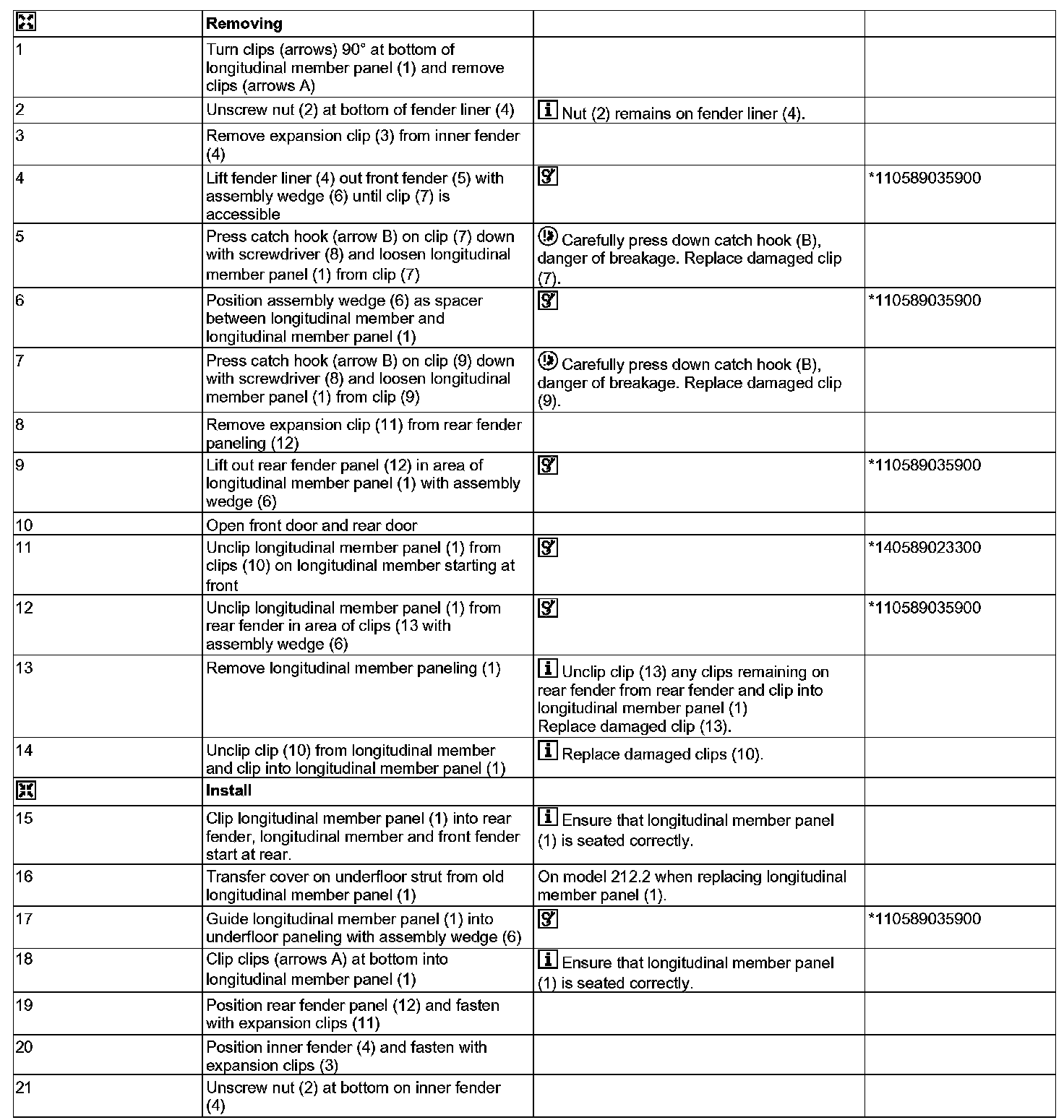

Steps 1 - 21:

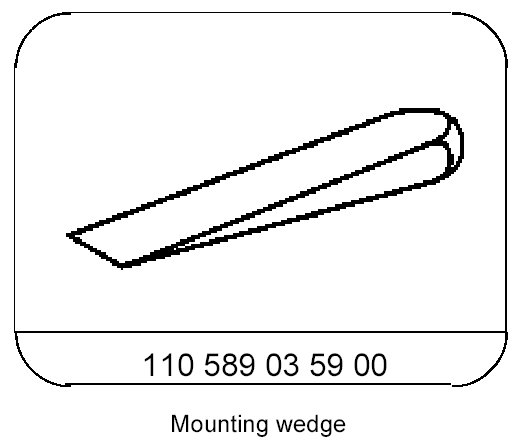

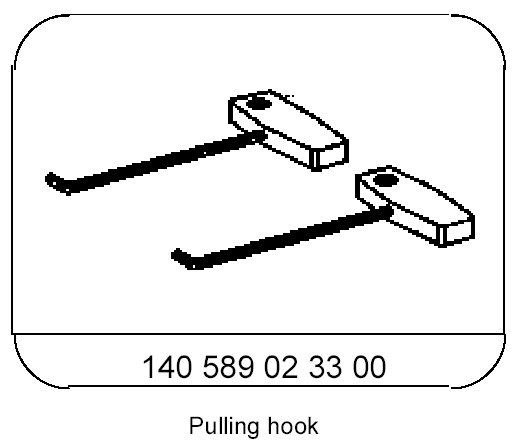

Special Tools:




Special Tools:
