Trunk / Liftgate: Service and Repair
AR88.50-P-5000EW Remove/Install Trunk Lid
Component Identification:
Component Identification:

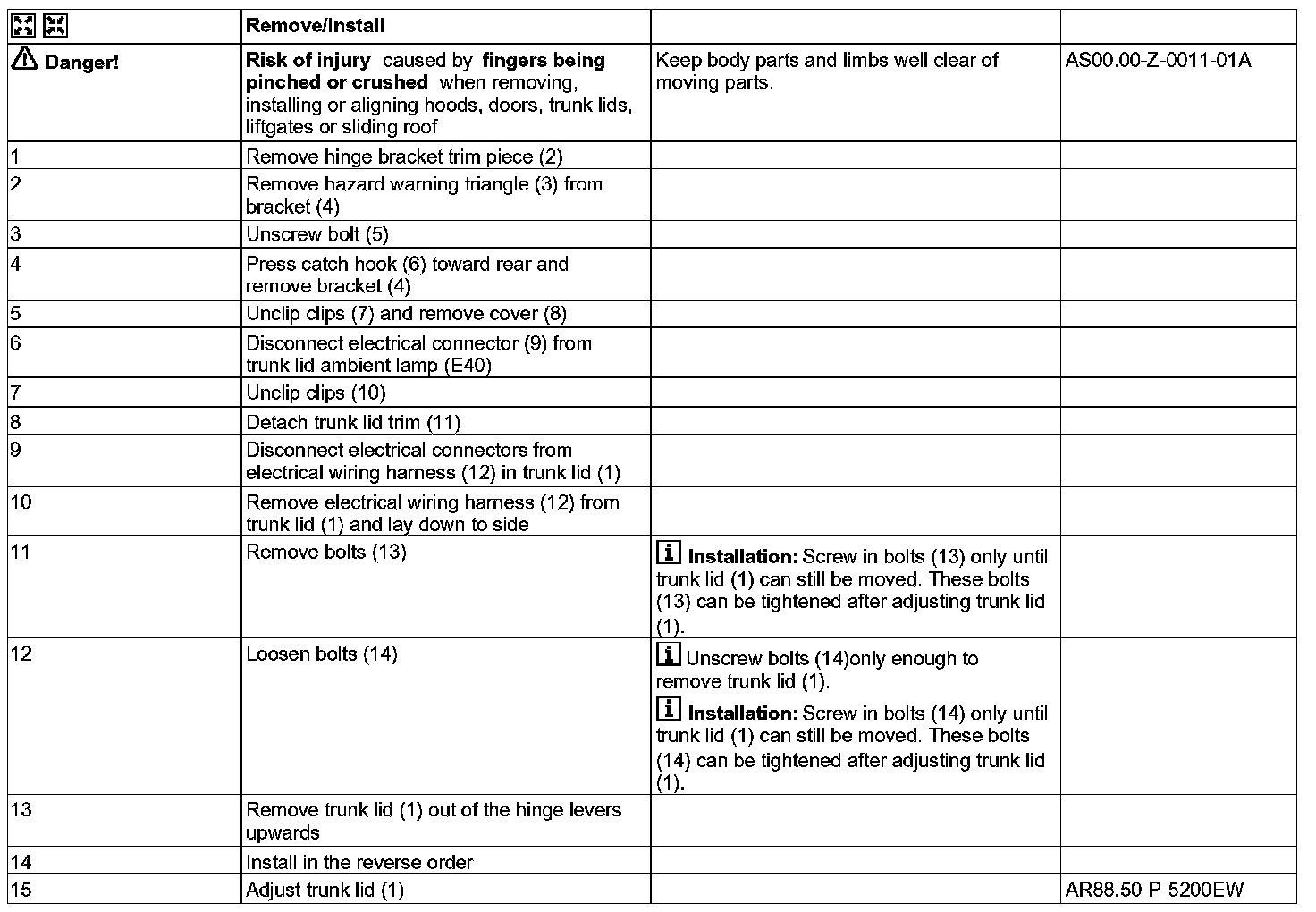

Steps 1 - 15:
