Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Hood >> Specifications

Hood: Specifications

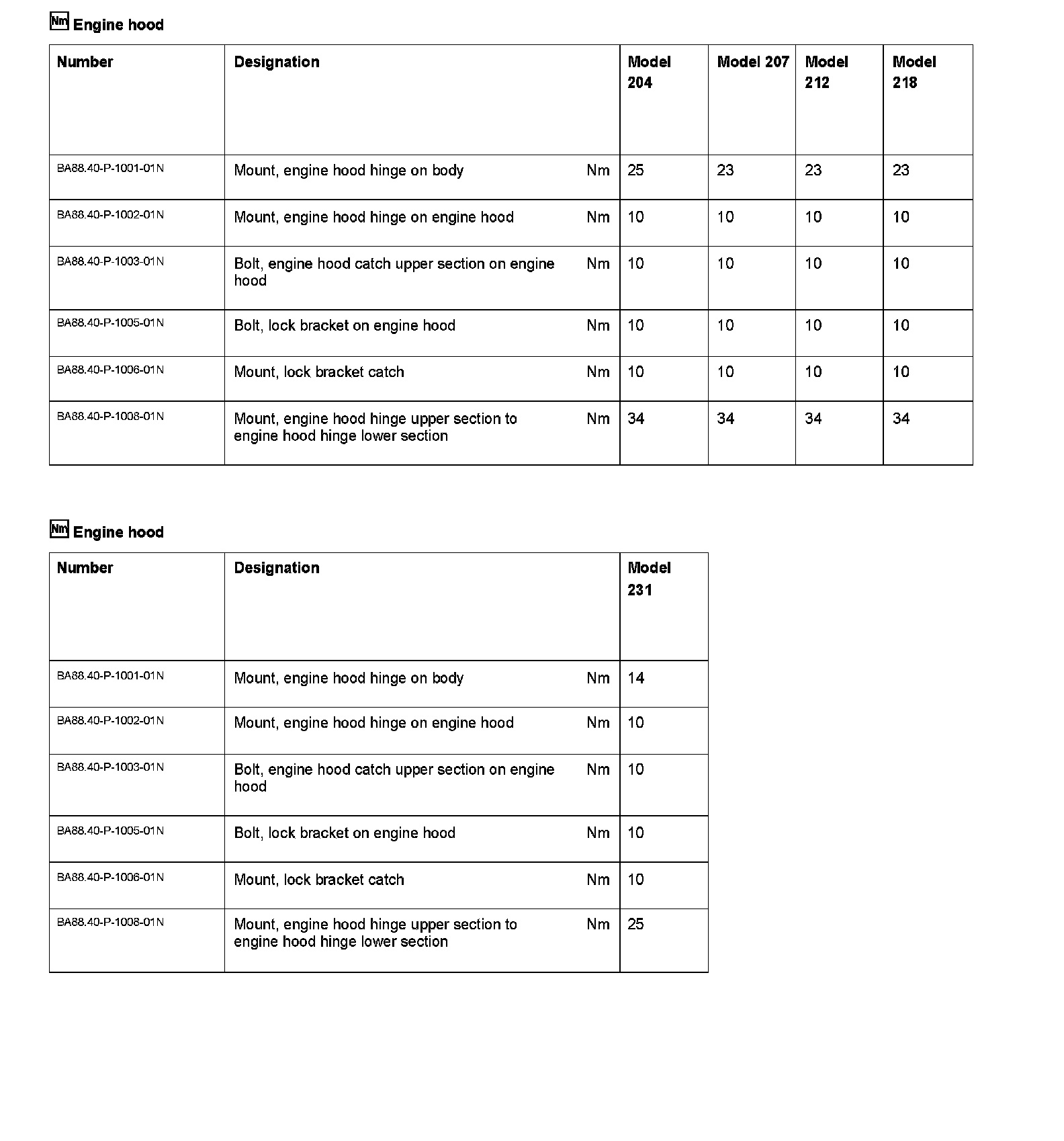

BA88.40-P-1000-01N Engine Hood
Model 204, 207, 212, 218, 231
