E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Hood
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR88.40-P-3000EW Remove/Install Engine
Hood

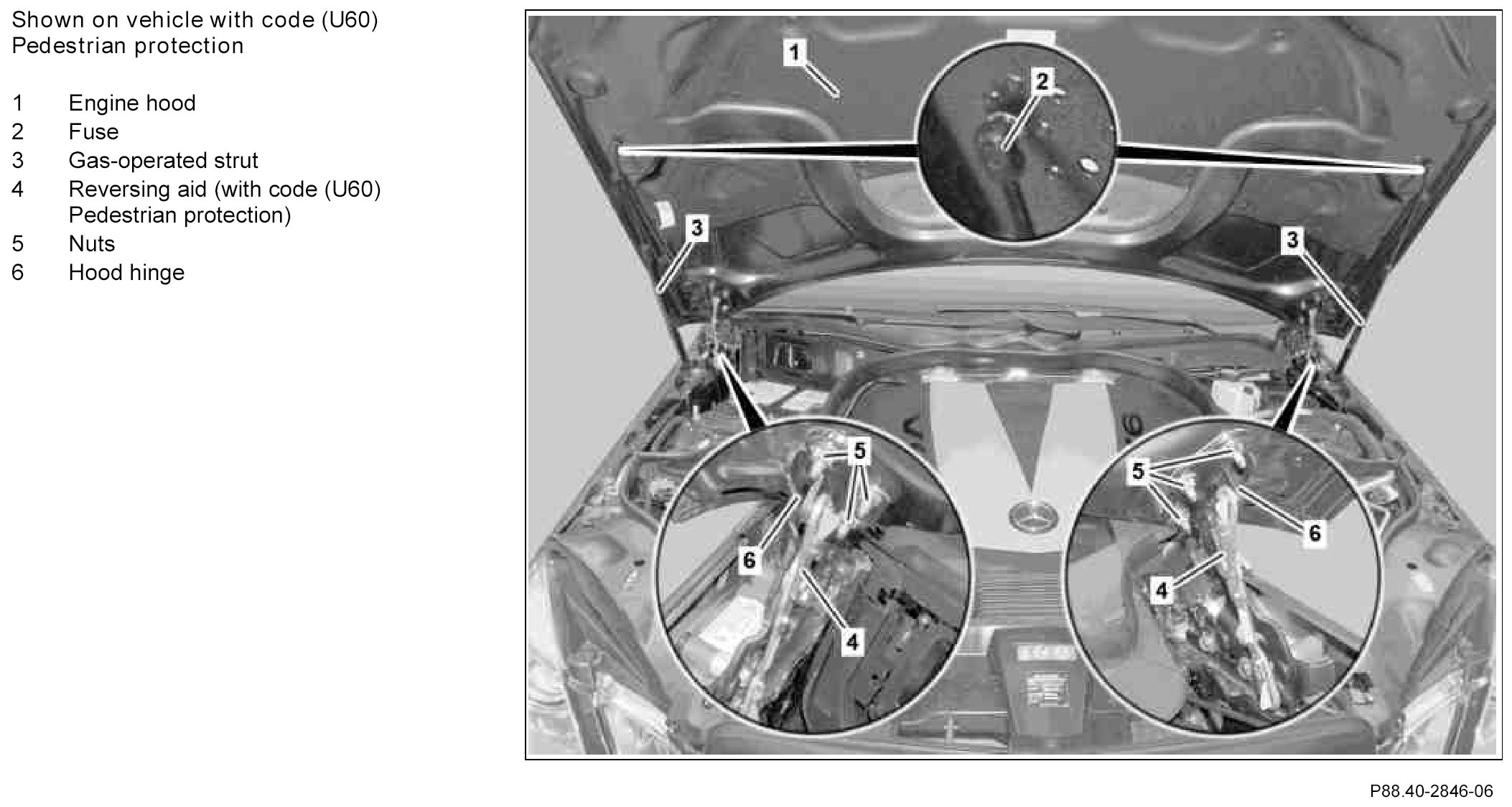

Component Identification:
Steps 1 - 6:
