Hood Hinge: Service and Repair
AR88.40-P-3060EW Remove/Install
Hood Hinge

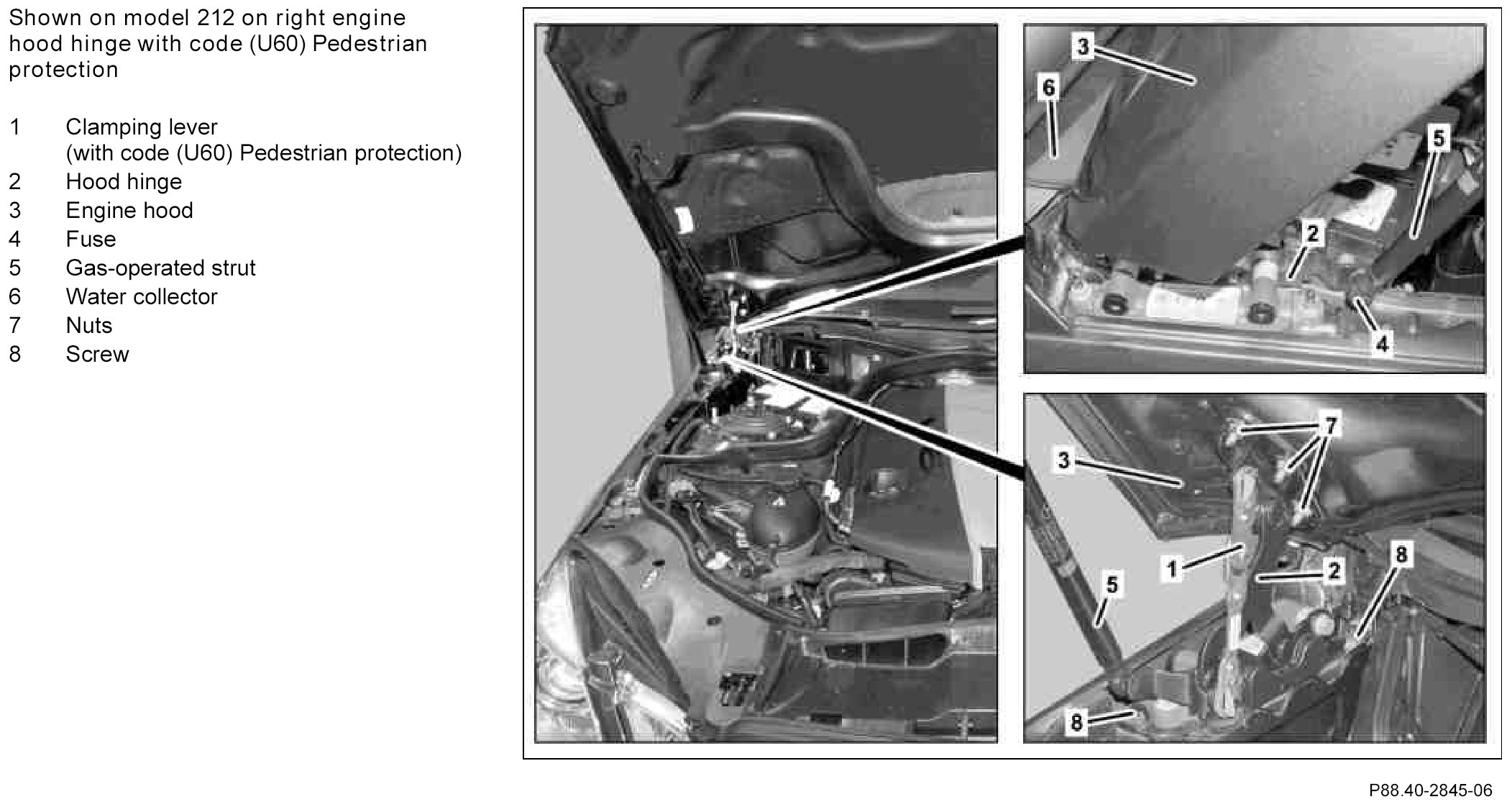

Component Identification:

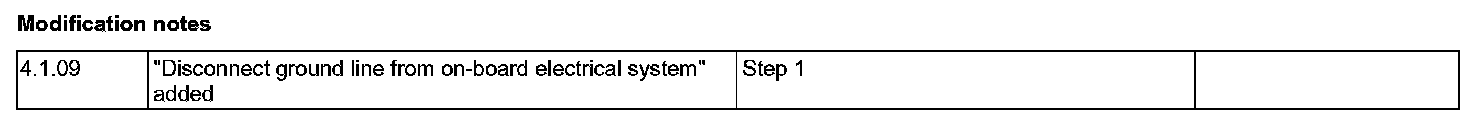

Modification Notes:

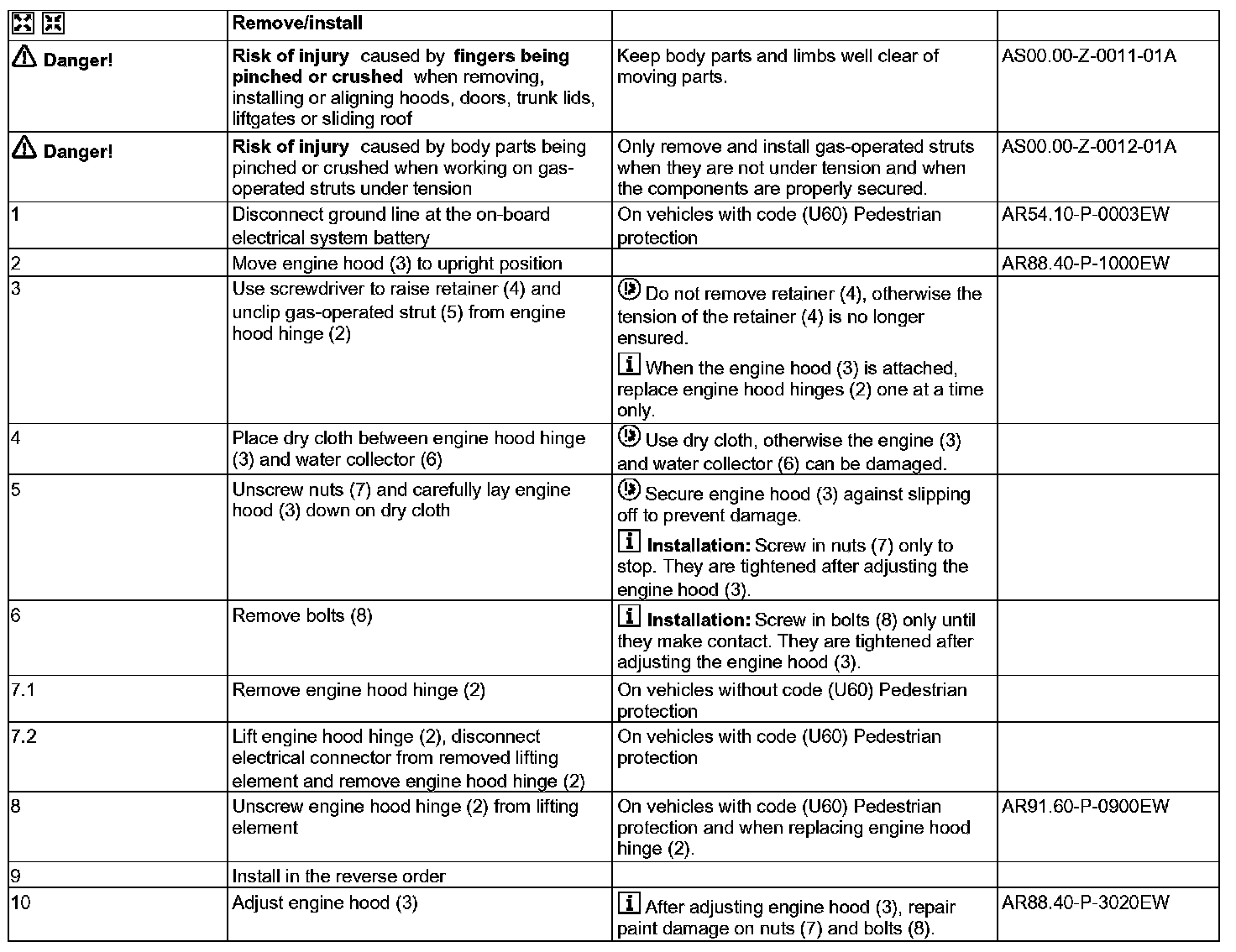

Steps 1 - 10:
