Fuel Door Release Actuator: Service and Repair
AR80.20-P-2300EW Remove/Install Fuel Filler Flap CL Element
Component Identification:

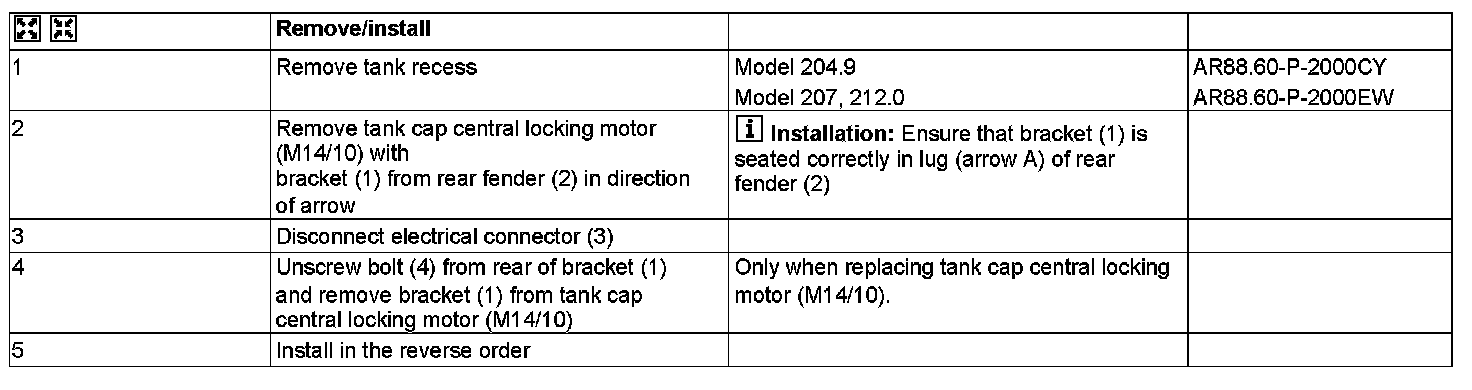

Steps 1 - 5:
