Rear Door Hinge: Service and Repair
AR72.12-P-2660CY Remove/Install Rear Door Hinge
- except CODE (Z04) Light armoring [model 212.0]

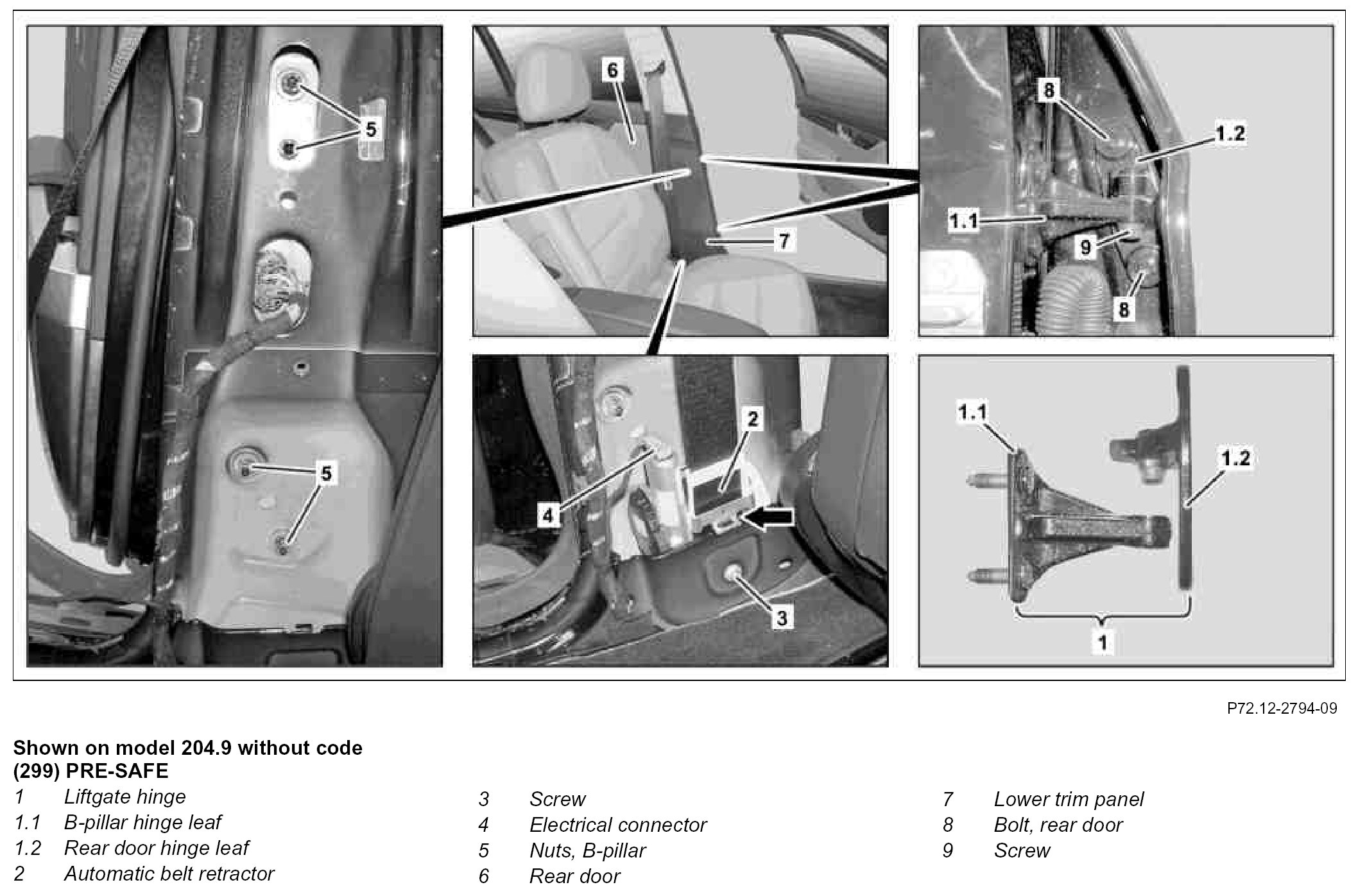

Component Identification:

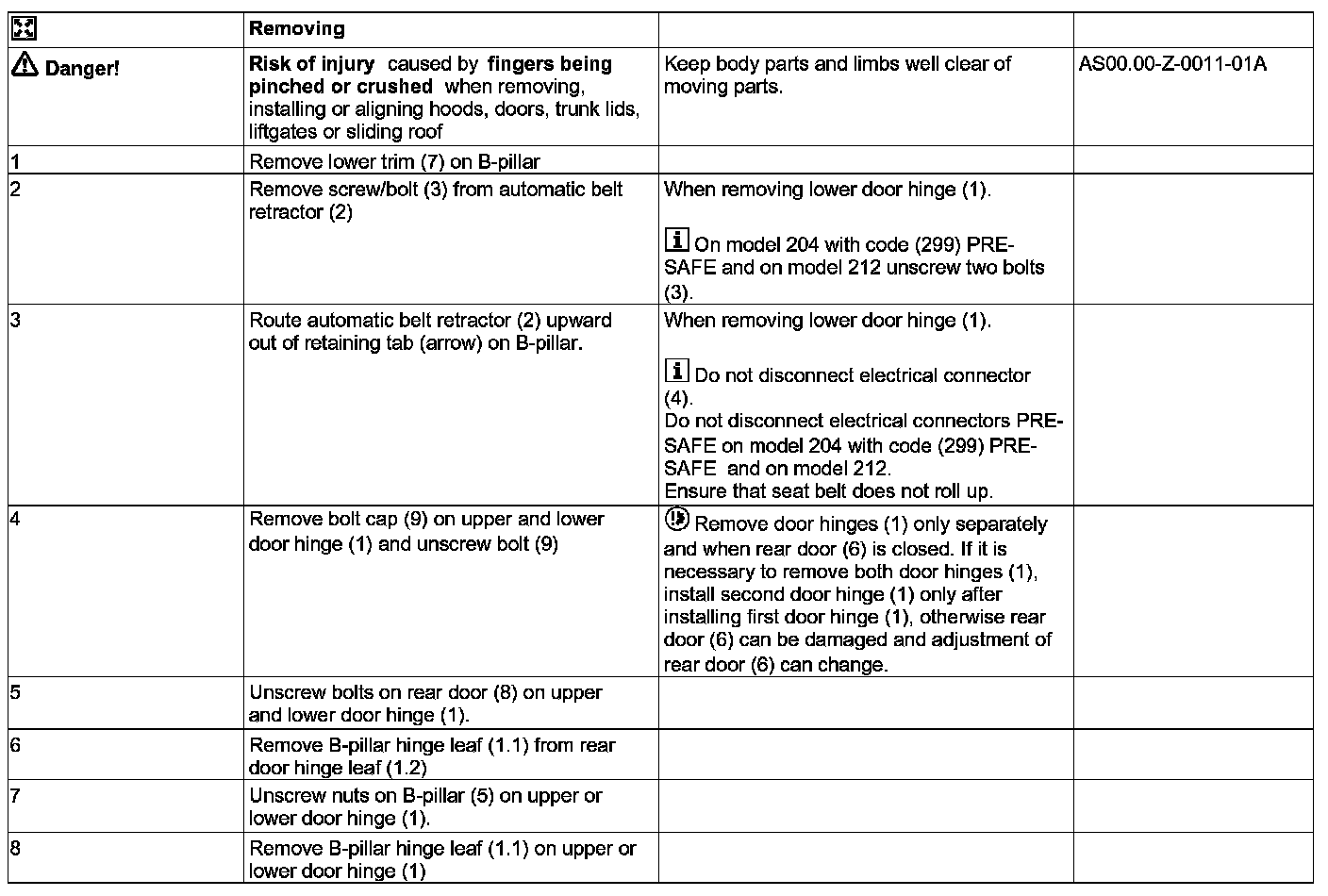

Steps 1 - 8:

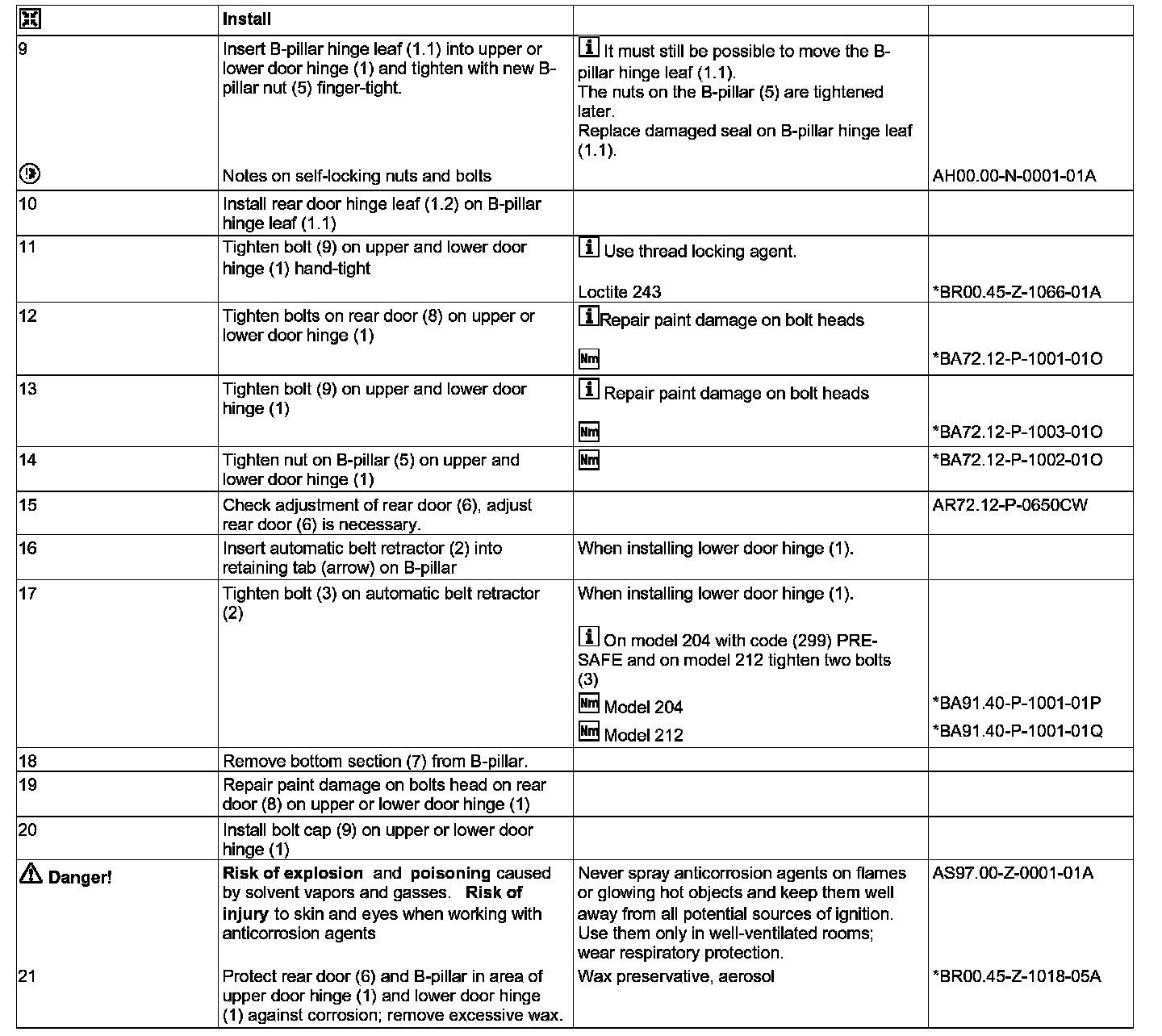

Steps 9 - 21:

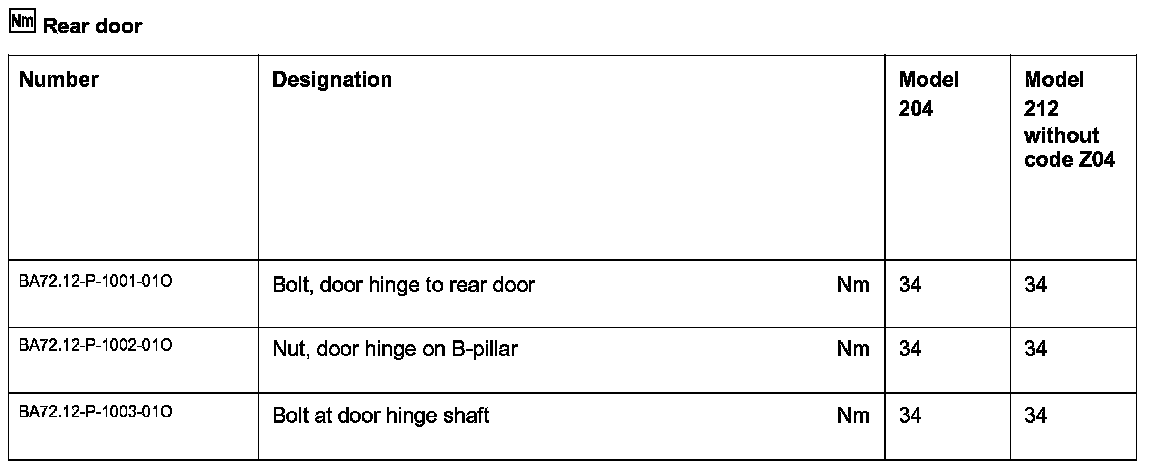

Rear Door:

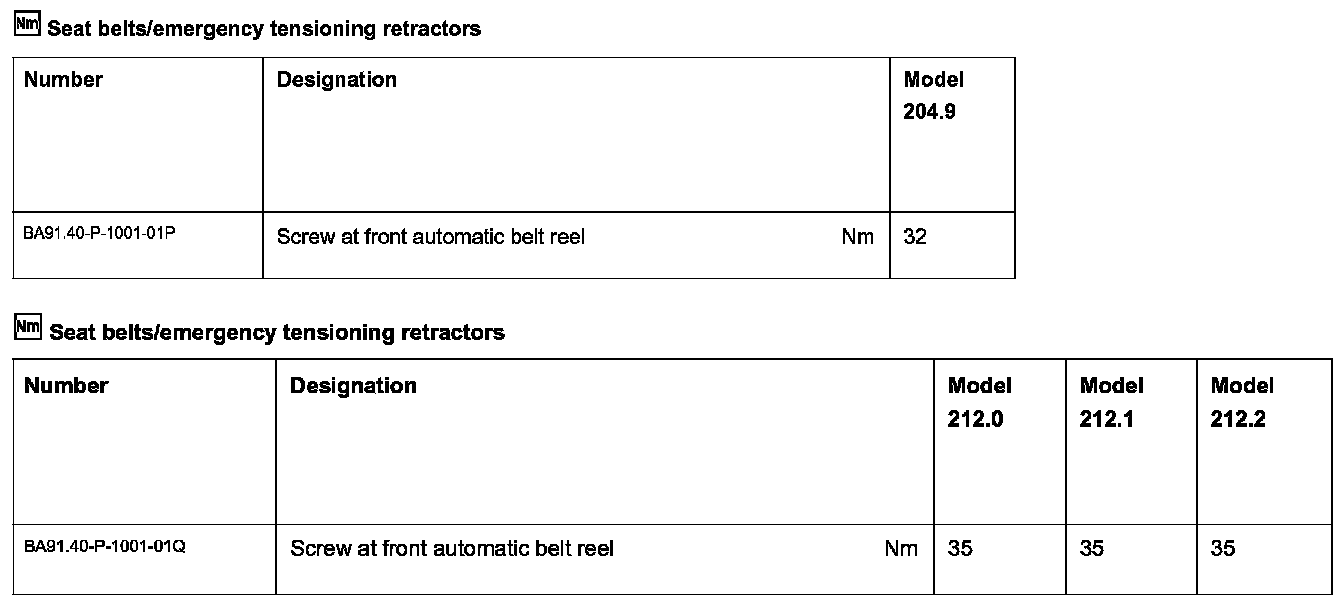

Seat Belts/Emergency Tensioning Retractors:

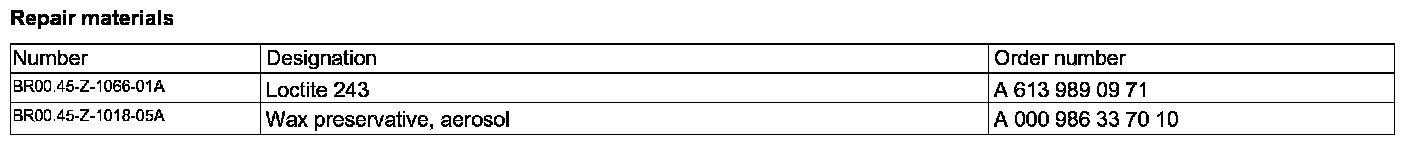

Repair Materials:
