Front Door Weatherstrip: Service and Repair



AR72.10-P-2120CW Remove/Install Door Frame Seal
- except CODE (Z04) Light armoring [models 212]

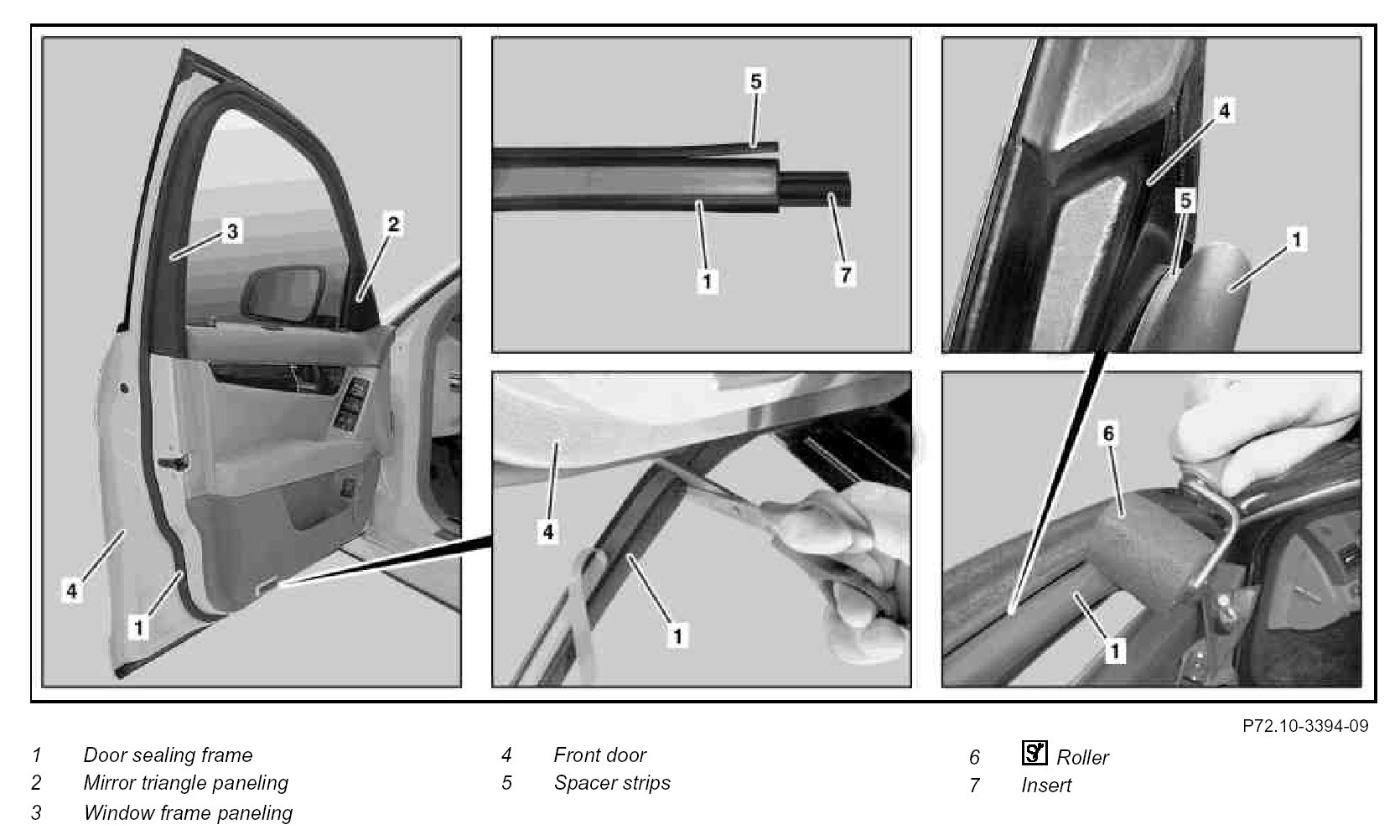

Component Identification:

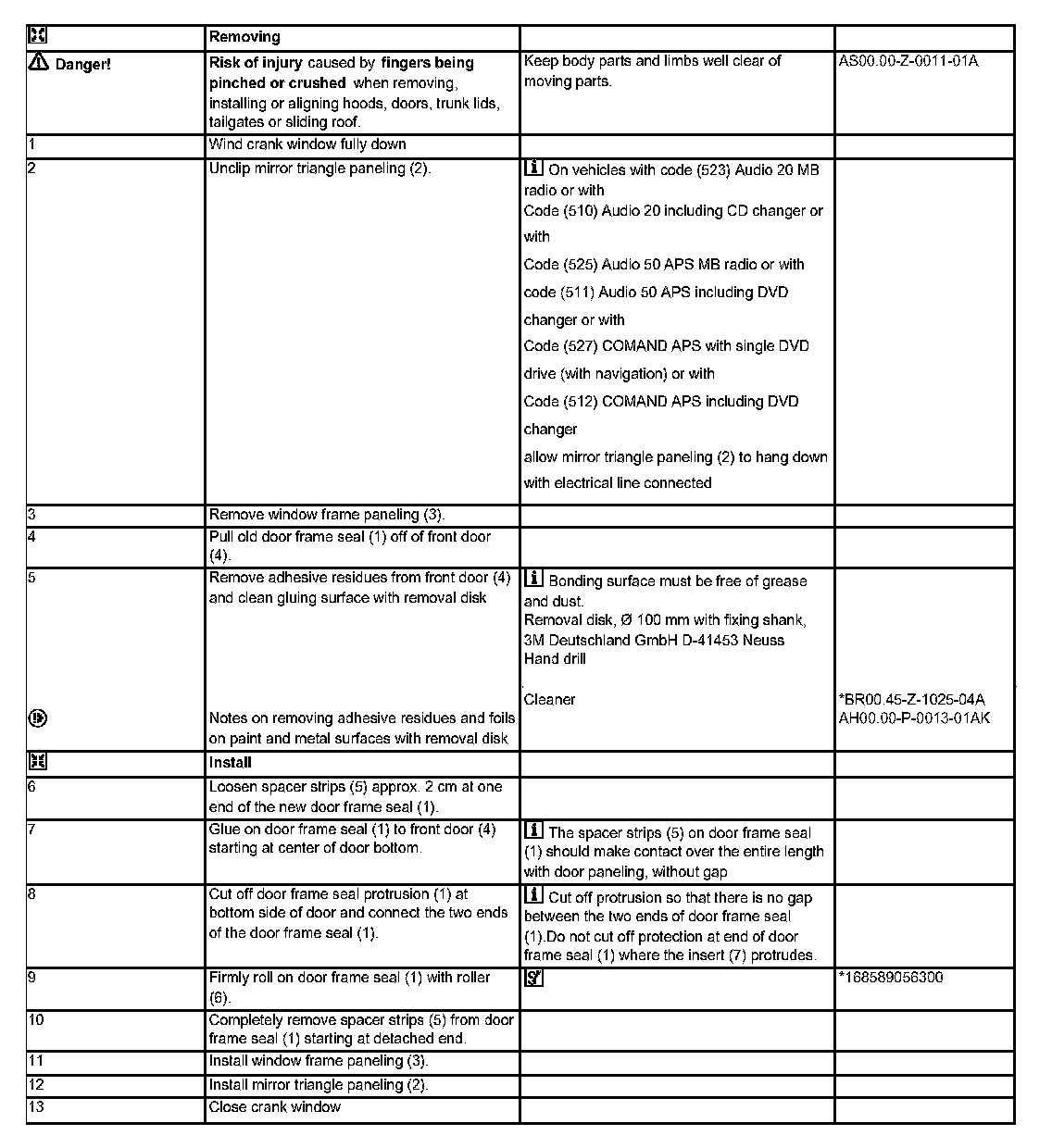

Steps 1 - 13:

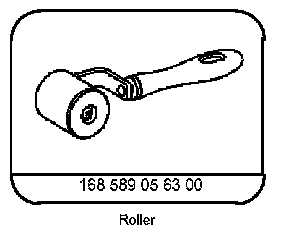

Special Tools:

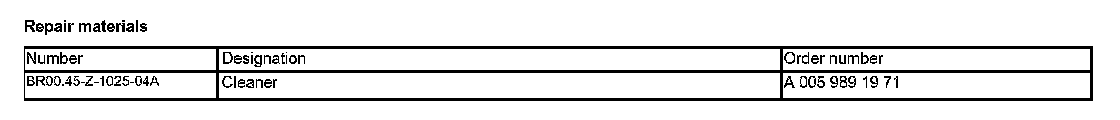

Repair Materials:
