Front Door Hinge: Service and Repair

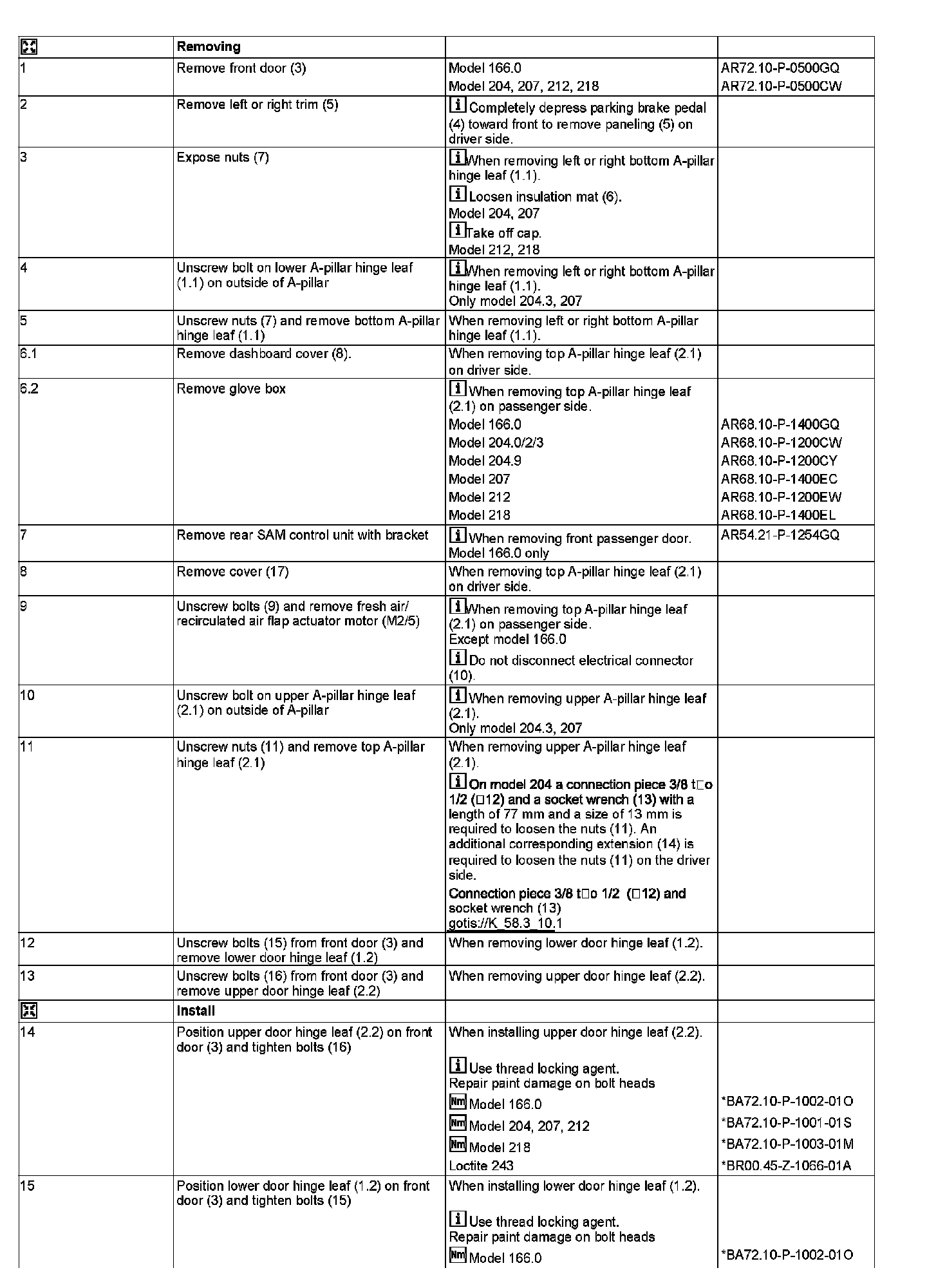

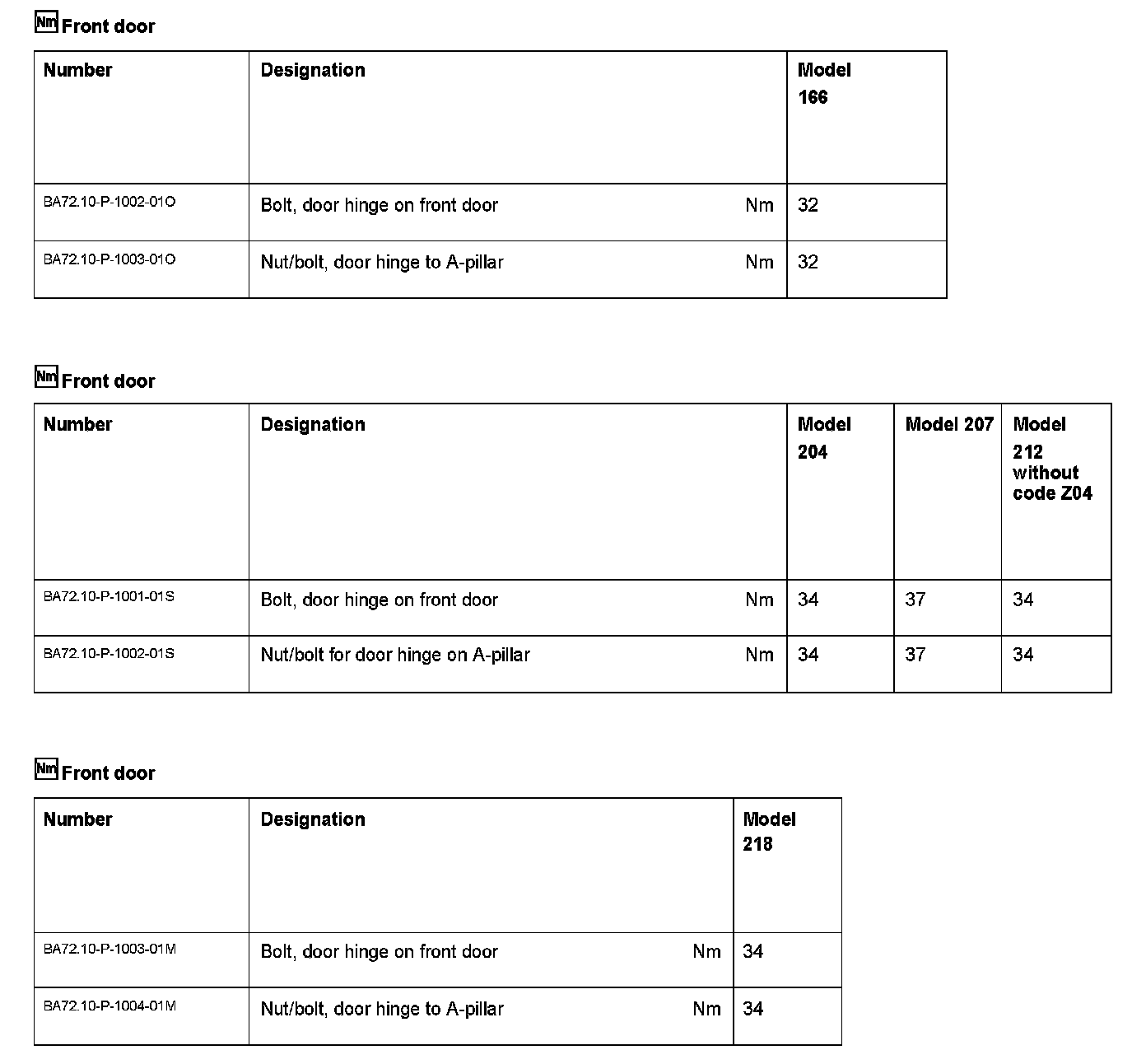

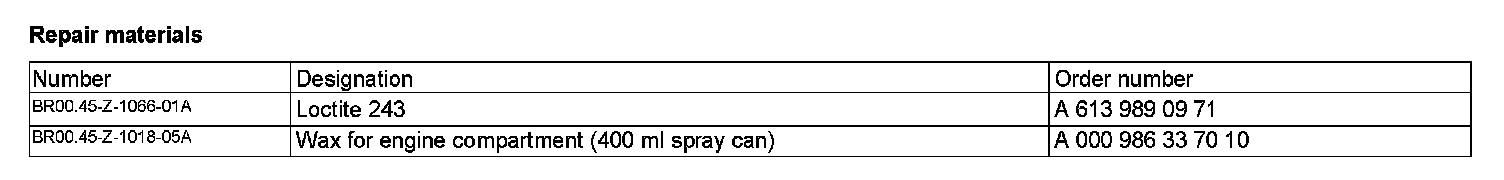

AR72.10-P-2660CW Remove/Install Front Door Hinge
MODEL 166.0
MODEL 204
MODEL 207
MODEL 212
- except CODE (Z04) Light armoring
MODEL 218

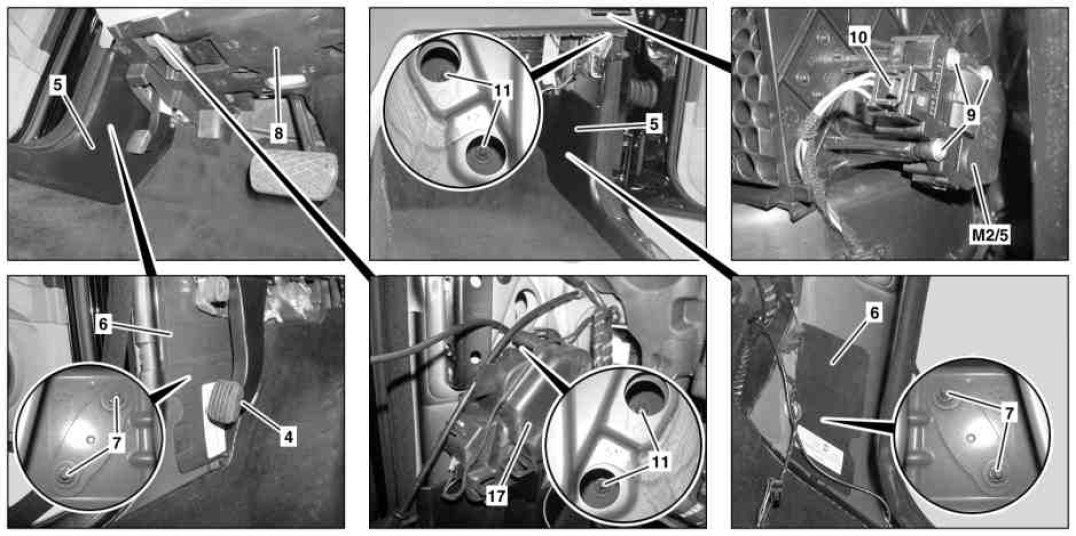

Shown on model 204.0

4 Parking brake pedal
5 Cover
6 Insulation mat (model 204, 207)
7 Nuts
8 Dashboard cover
9 Bolts
10 Electrical connector
11 Nuts
17 Cover

M2/5 Fresh air/air recirculation flap actuator motor





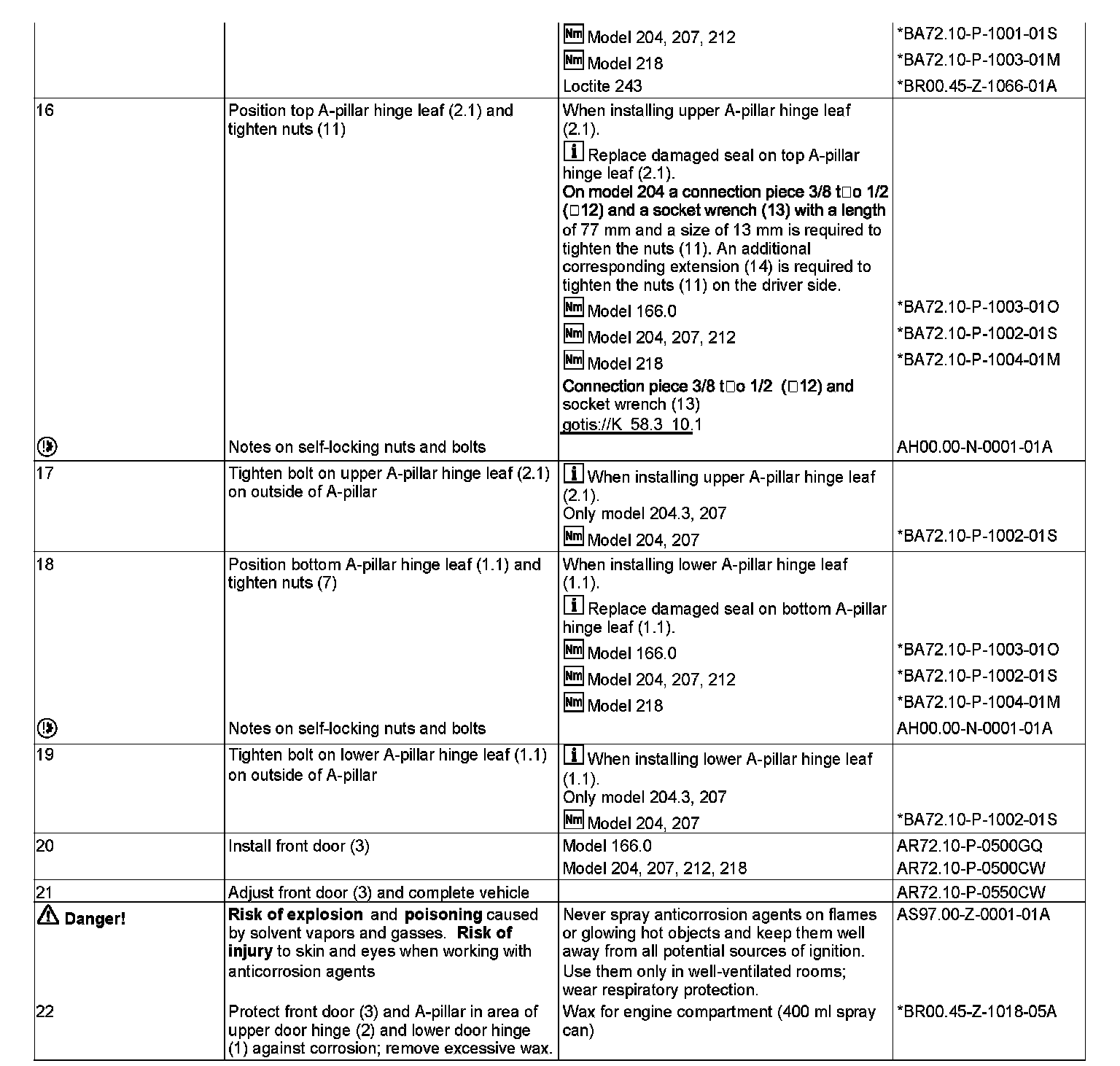

Shown on left front door on model 204.0

1 Lower door hinge
1.1 Bottom A-pillar hinge leaf
1.2 Bottom door hinge leaf
2 Upper door hinge
2.1 Top A-pillar hinge leaf
2.2 Top door hinge leaf
3 Front door
12 Connection piece 3/8 to 1/2 (only model 204)
13 Socket wrench (only model 204)
14 Extension (only model 204)
15 Bolts
16 Bolts
