Front Door: Adjustments

AR72.10-P-0550CW Adjust Front Door

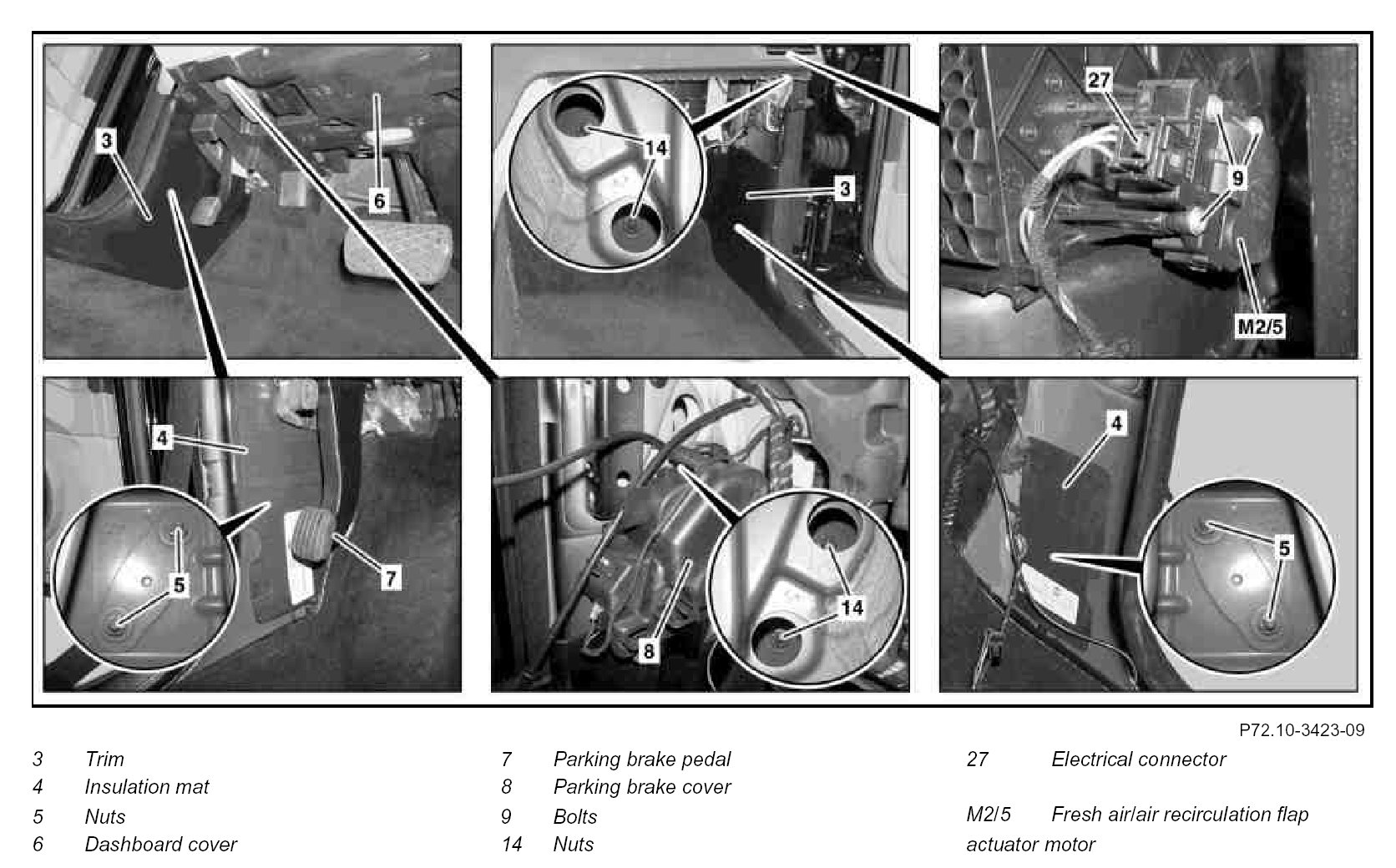

Component Identification:

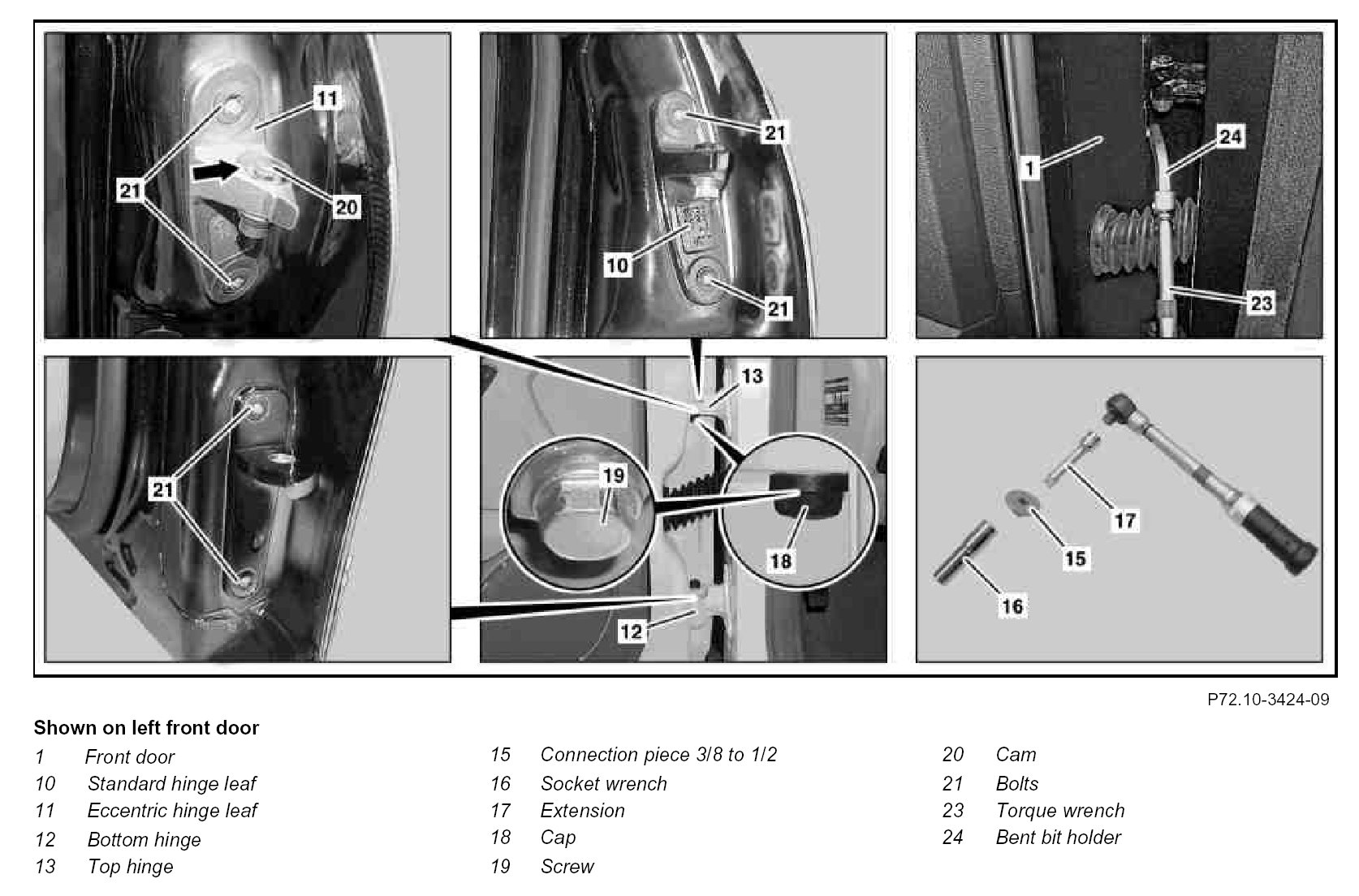

Component Identification:

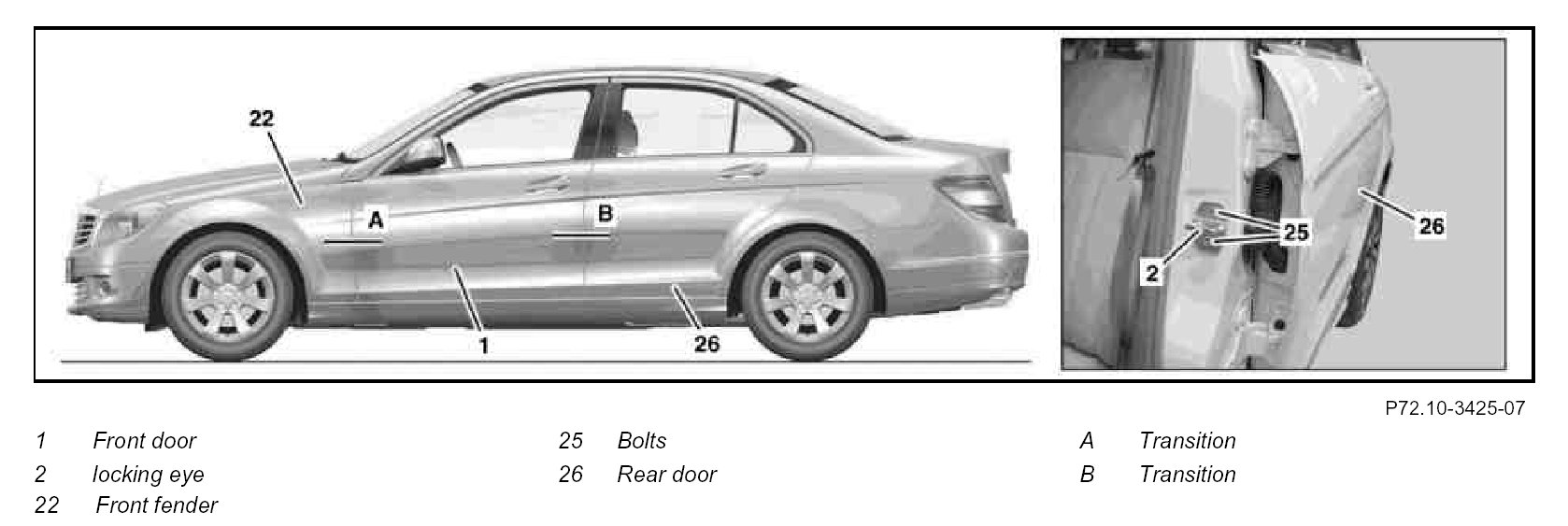

Component Identification:

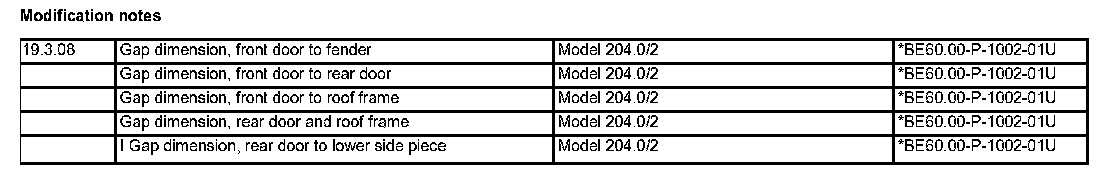

Modification Notes:

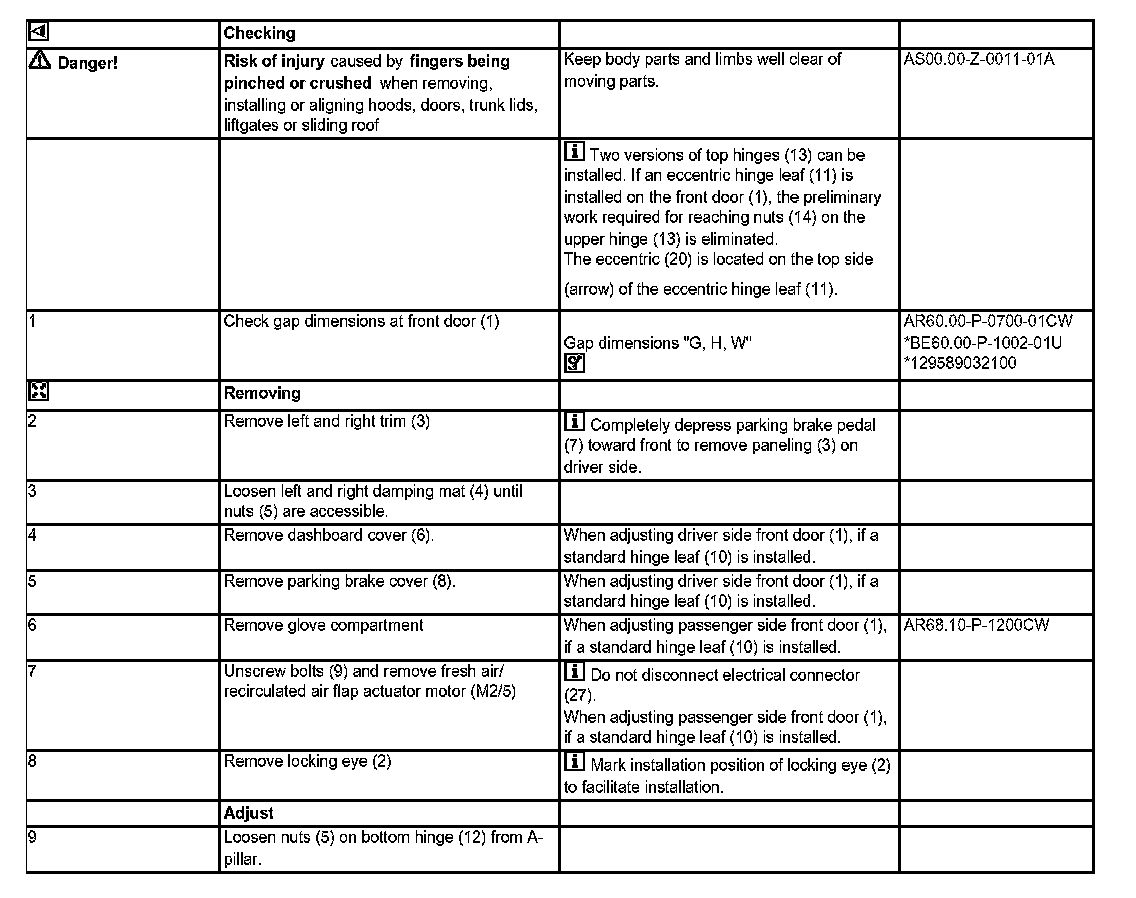

Steps 1 - 9:

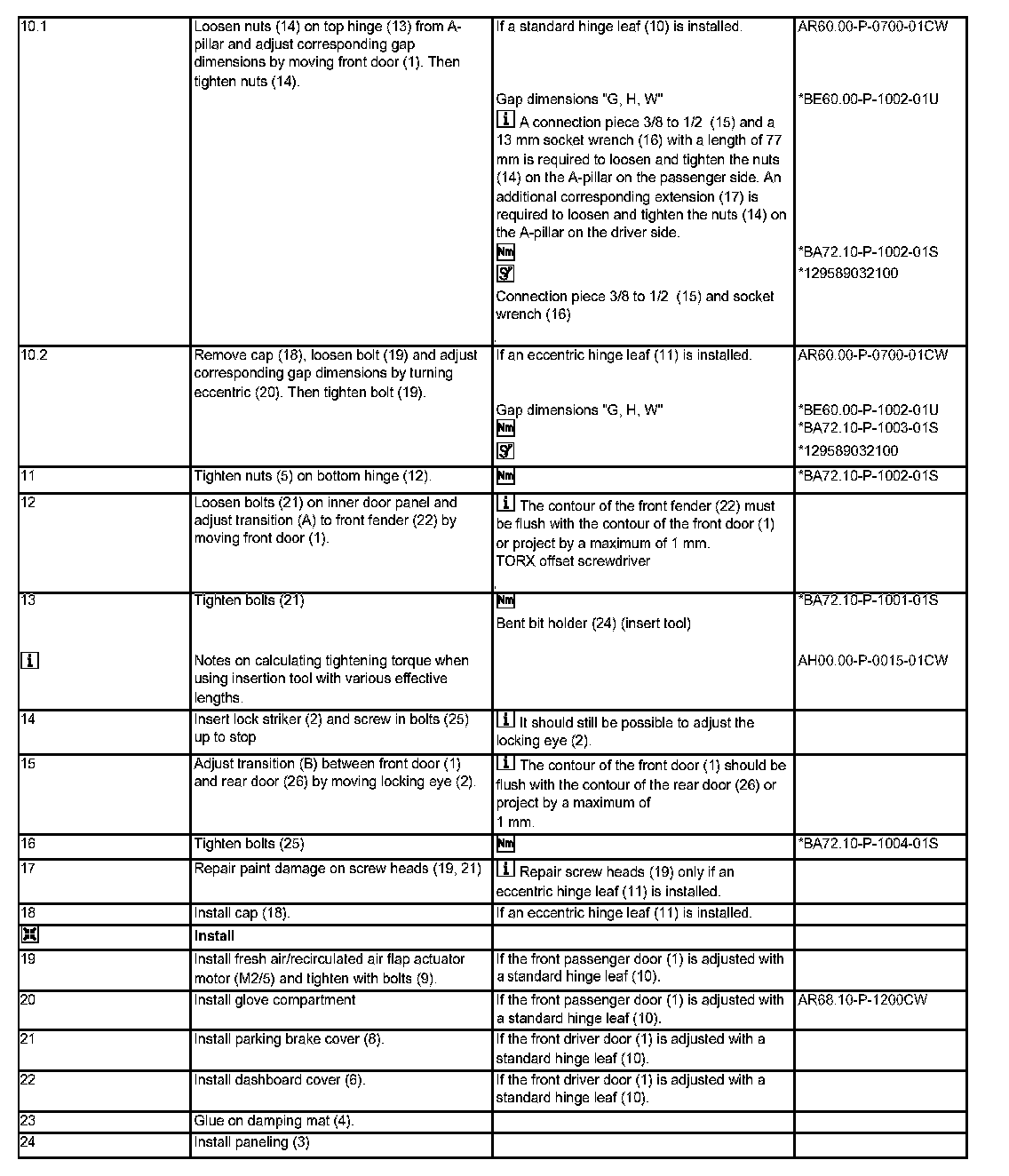

Steps 10.1 - 24:

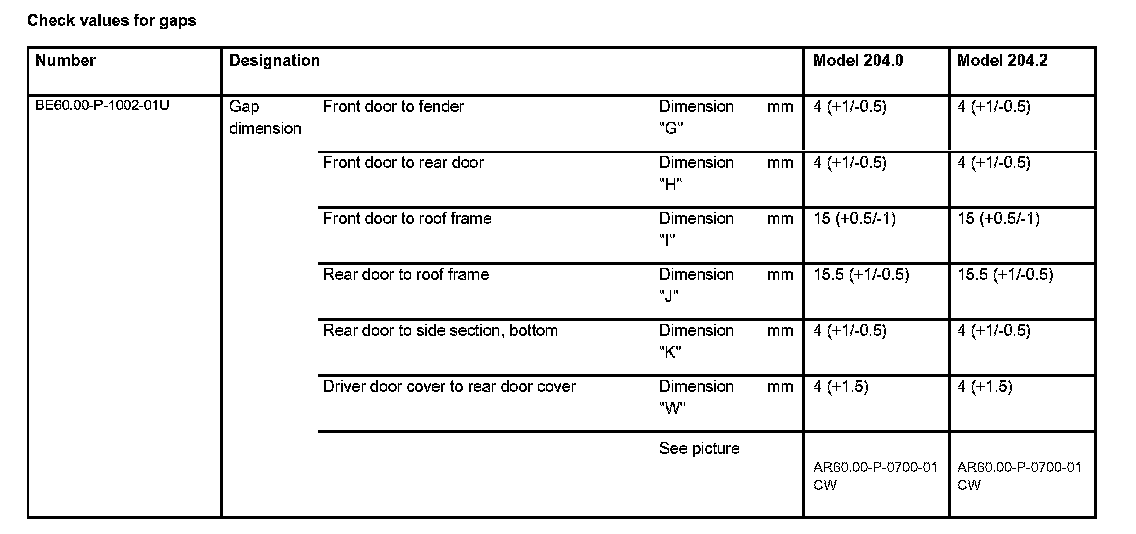

Check Values For Gaps:

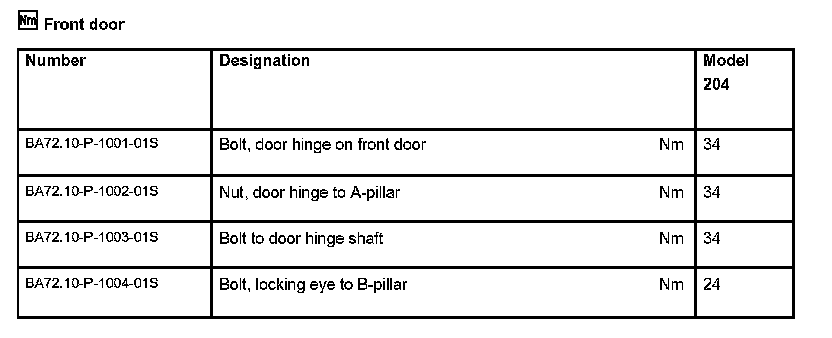

Front Door:

Special Tools:
