AR88.20-P-2000EW Remove/Install Front
Bumper

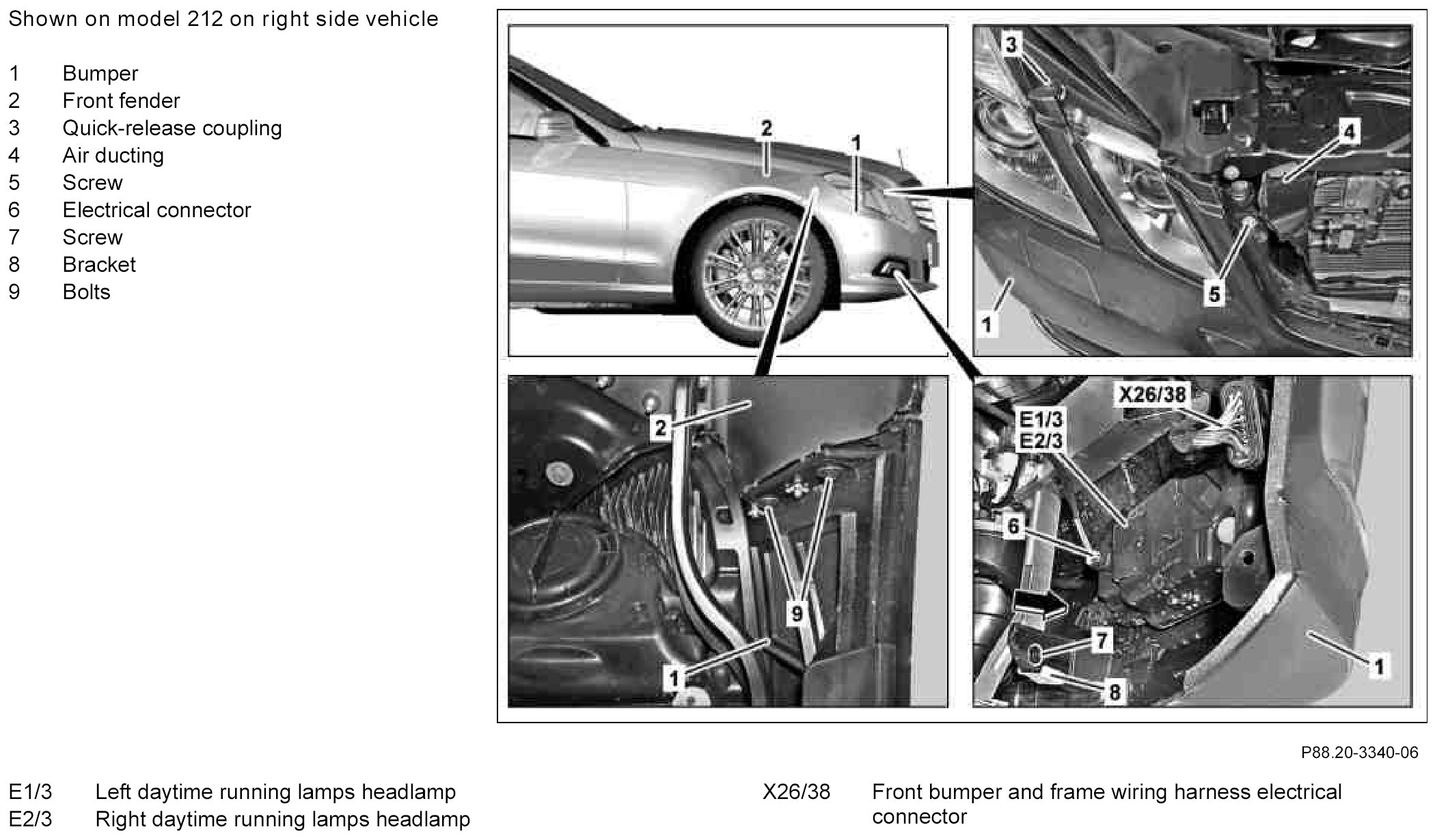

Component Identification:

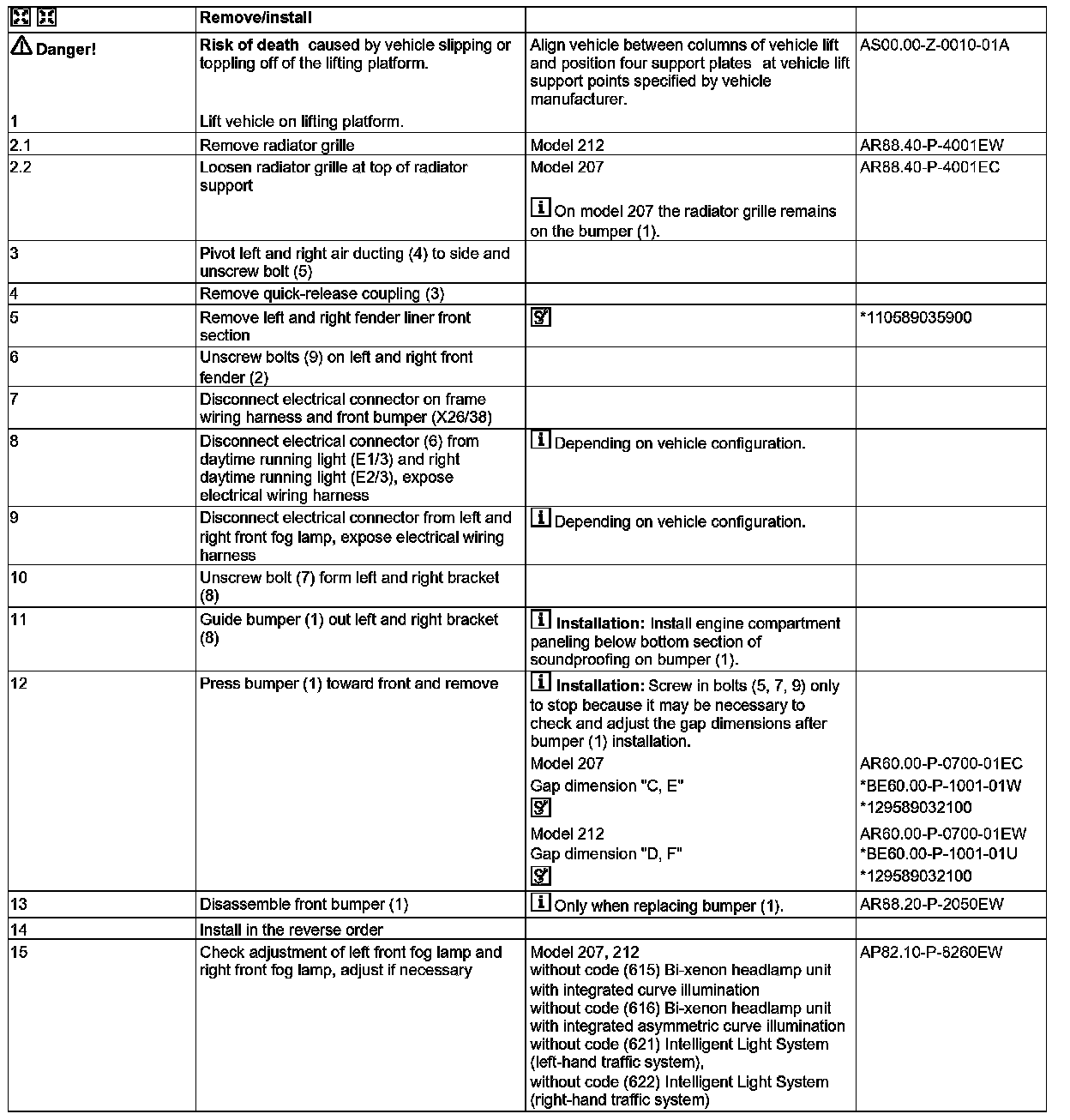

Steps 1 - 15:
Check Values For Gaps:

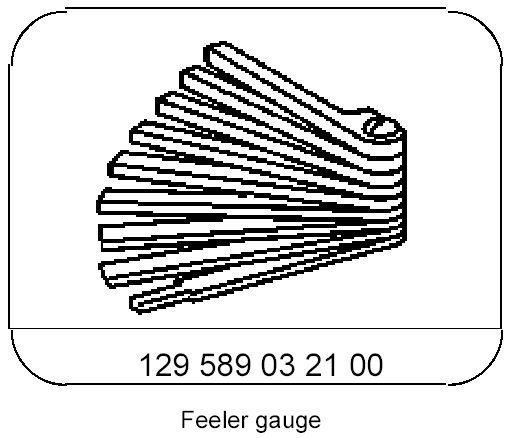

Special Tools:

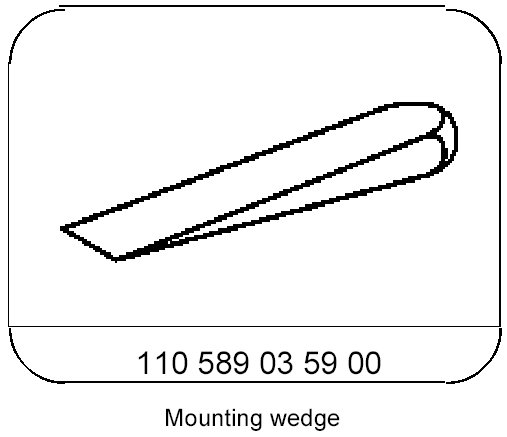

Special Tools:
