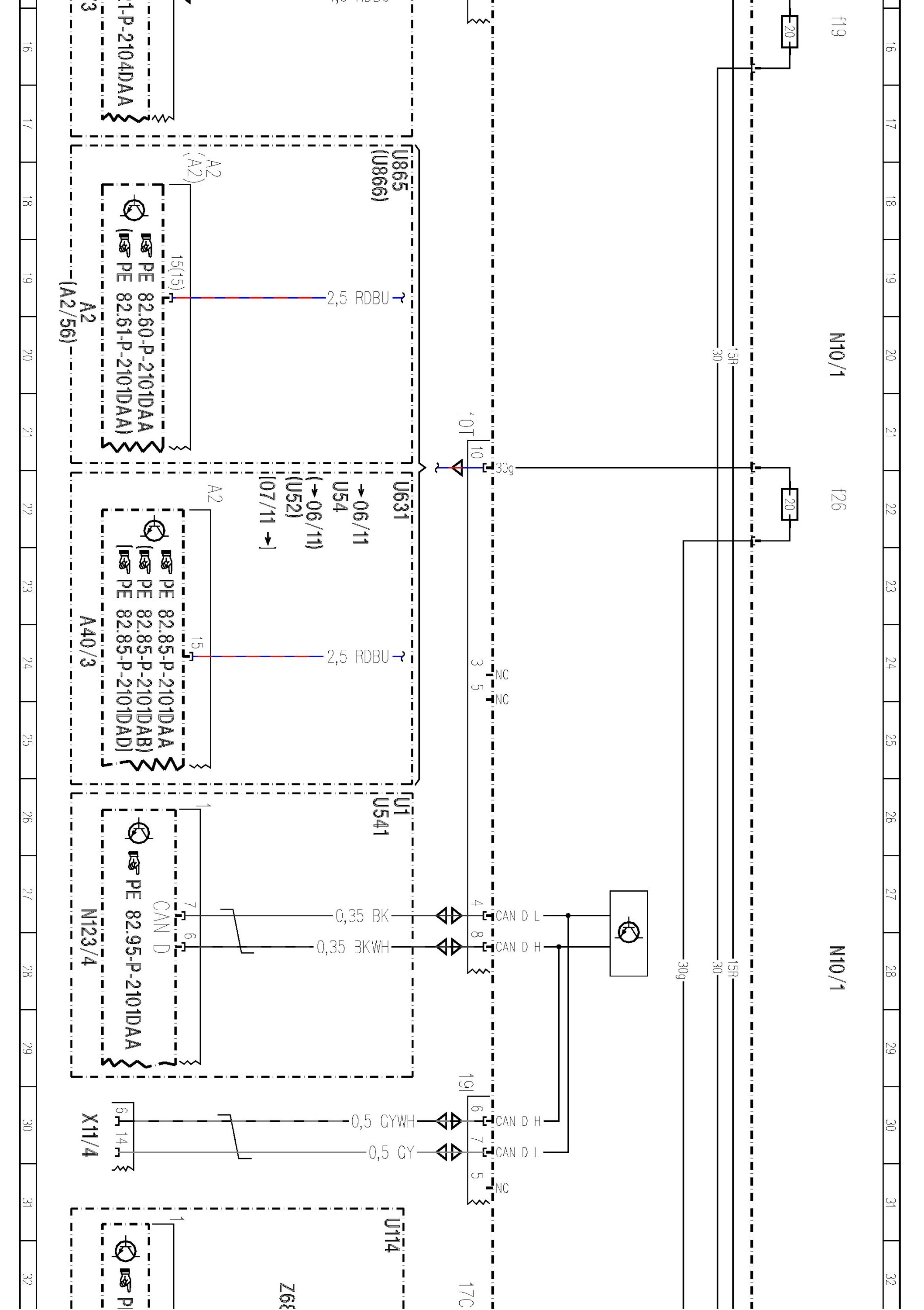

PE54.21-P-2106DAG Front Sam Control Unit With Fuse And Relay Module (N10/1)

PE54.21-P-2106DAG Front SAM Control Unit With Fuse And Relay Module (N10/1)
MODEL 212
- Sheet 7


























































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
