PE54.21-P-2106DAD Front Sam Control Unit With Fuse And Relay Module (N10/1)

PE54.21-P-2106DAD Front SAM Control Unit With Fuse And Relay Module (N10/1)
MODEL 212

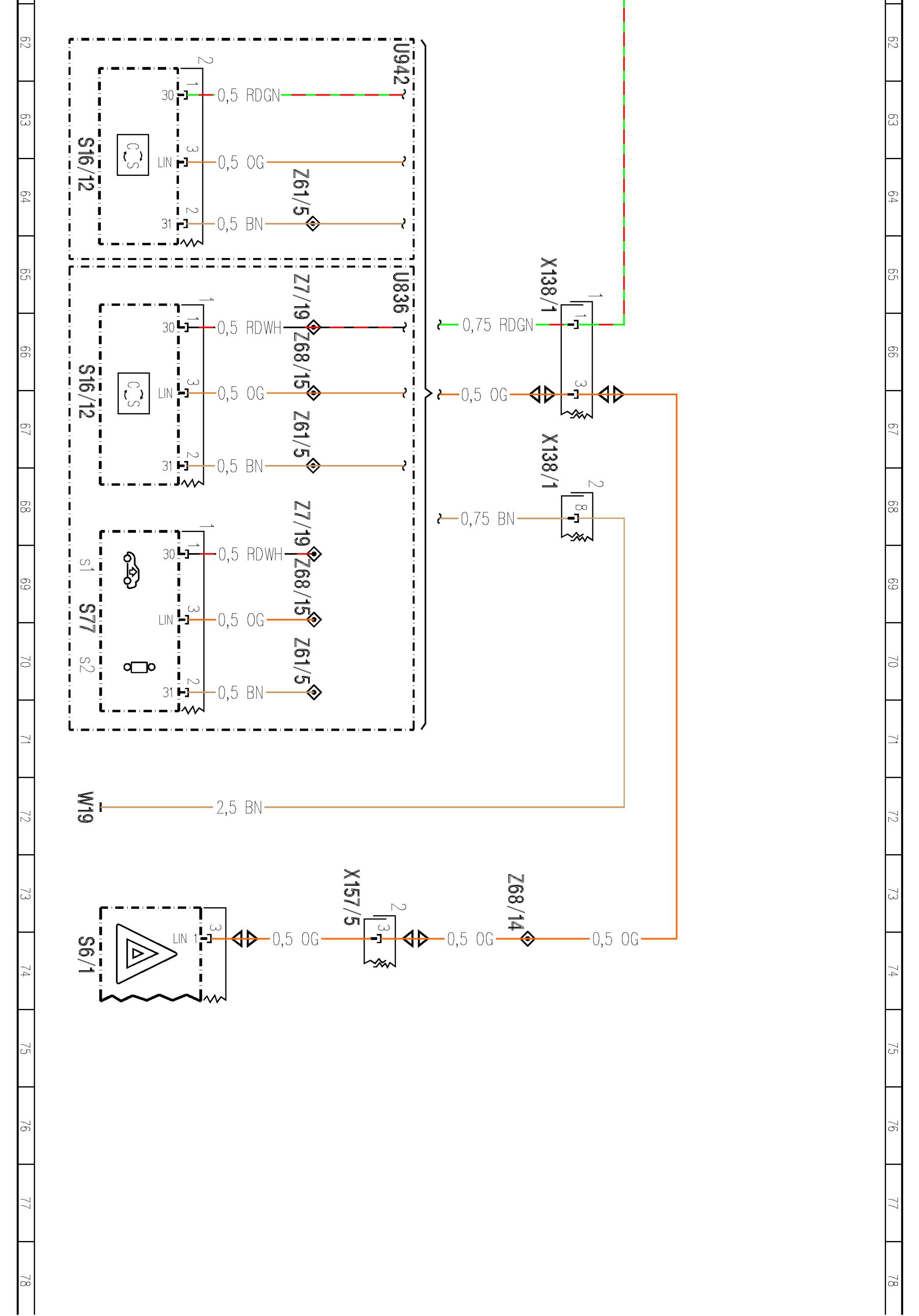

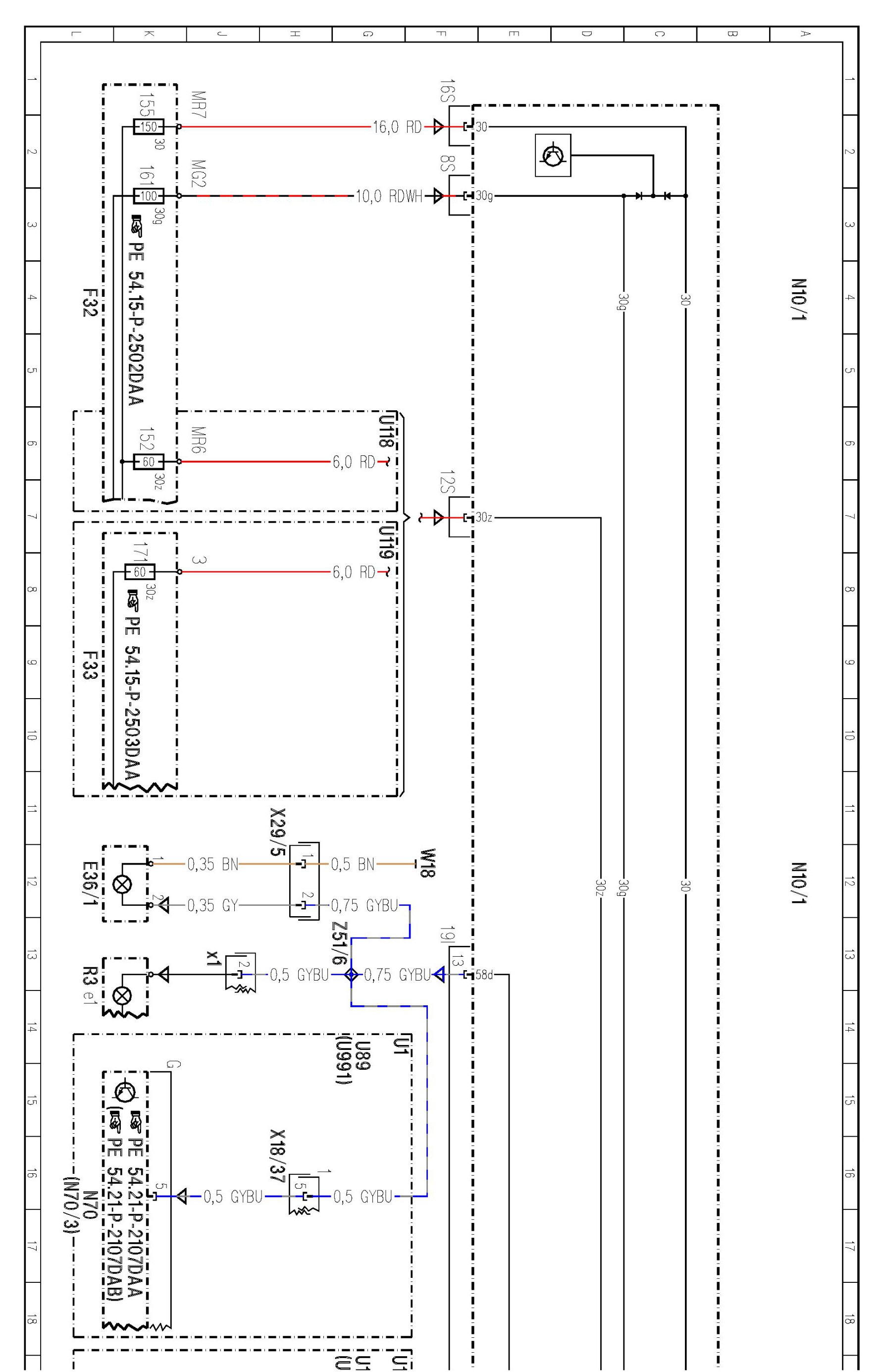

- Sheet 4










































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
