AR82.60-P-2001EW Remove/Install Digital Audio Broadcasting Control Unit (DAB)



AR82.60-P-2001EW Remove/Install Digital Audio Broadcasting Control Unit (DAB)
- with CODE (537) Digital radio

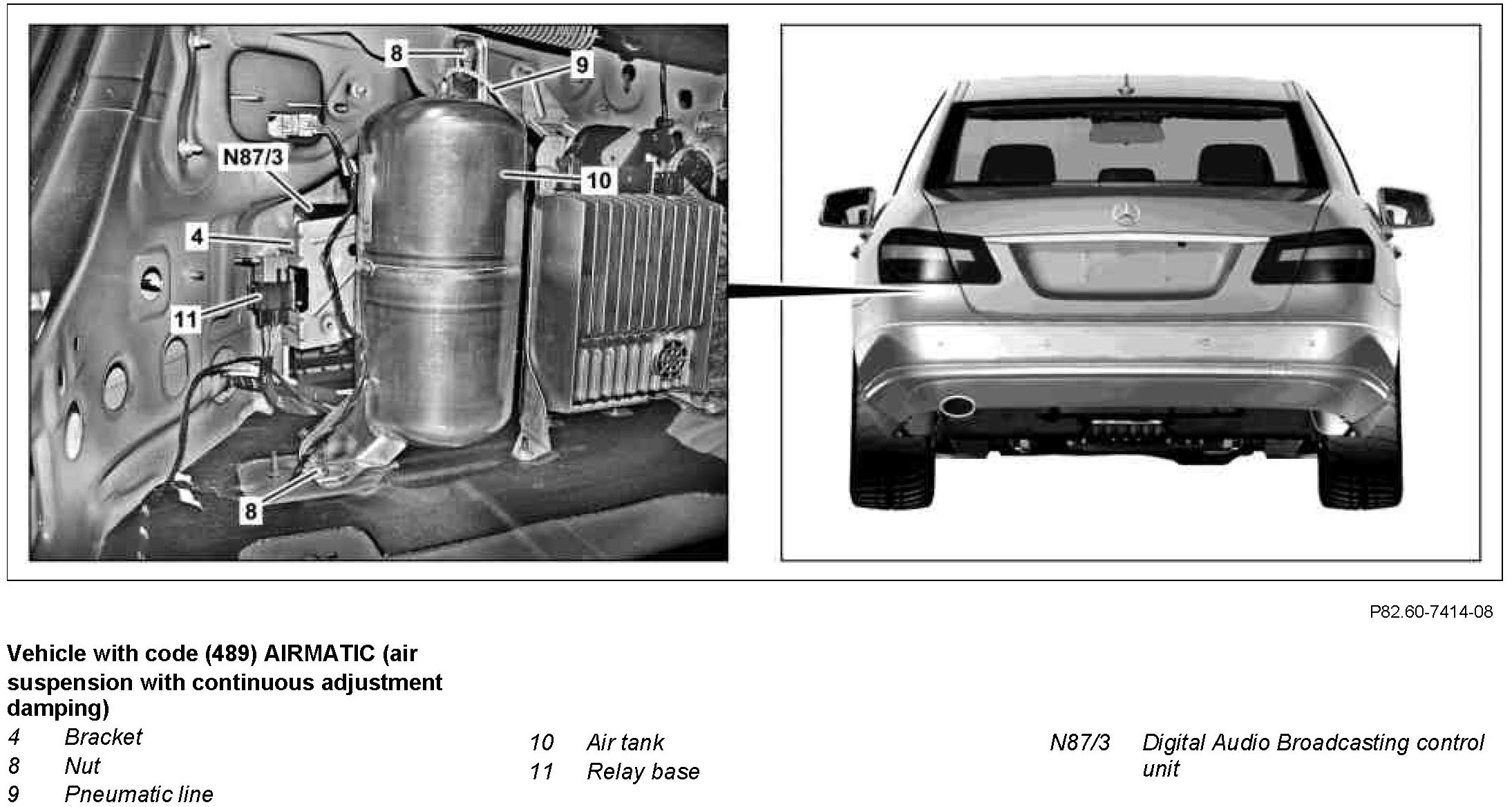

Component Identification:

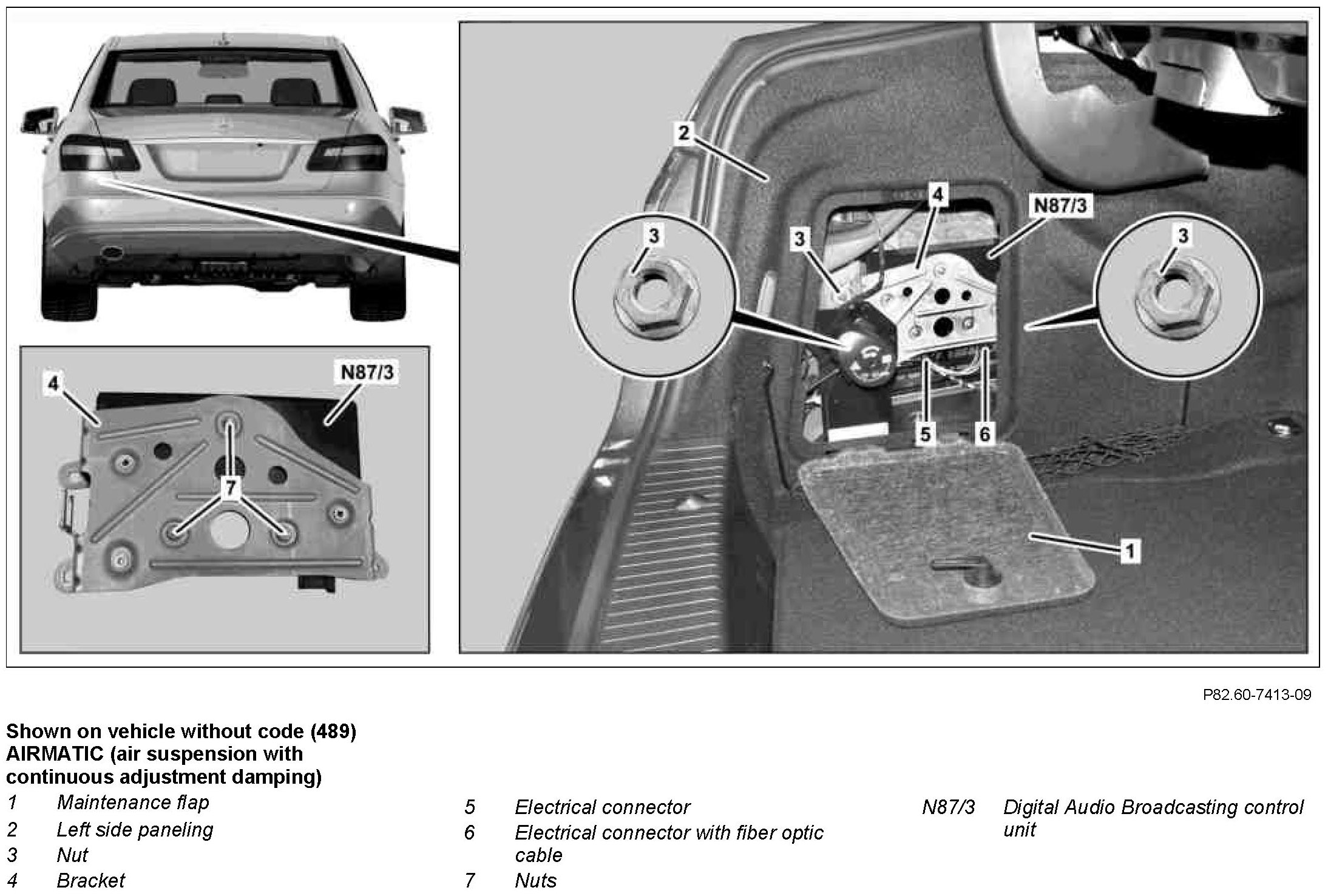

Component Identification:

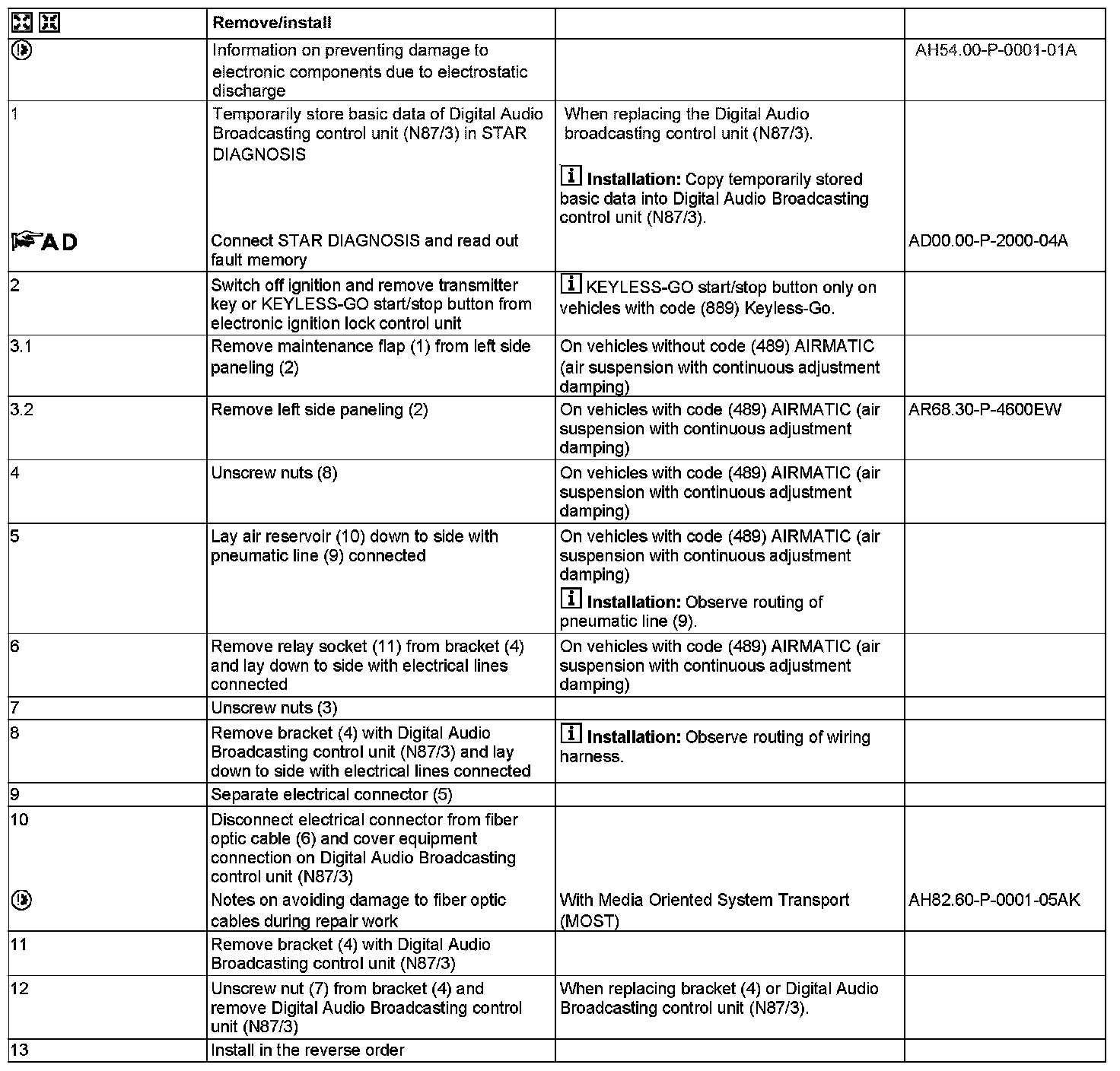

Steps 1 - 13:
