Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Service and Repair >> Removal and Replacement >> AR82.62-P-7836EW Remove/Install Speaker In Rear Shelf

AR82.62-P-7836EW Remove/Install Speaker In Rear Shelf



AR82.62-P-7836EW Remove/Install Speaker In Rear Shelf
- with CODE (810) Sound system

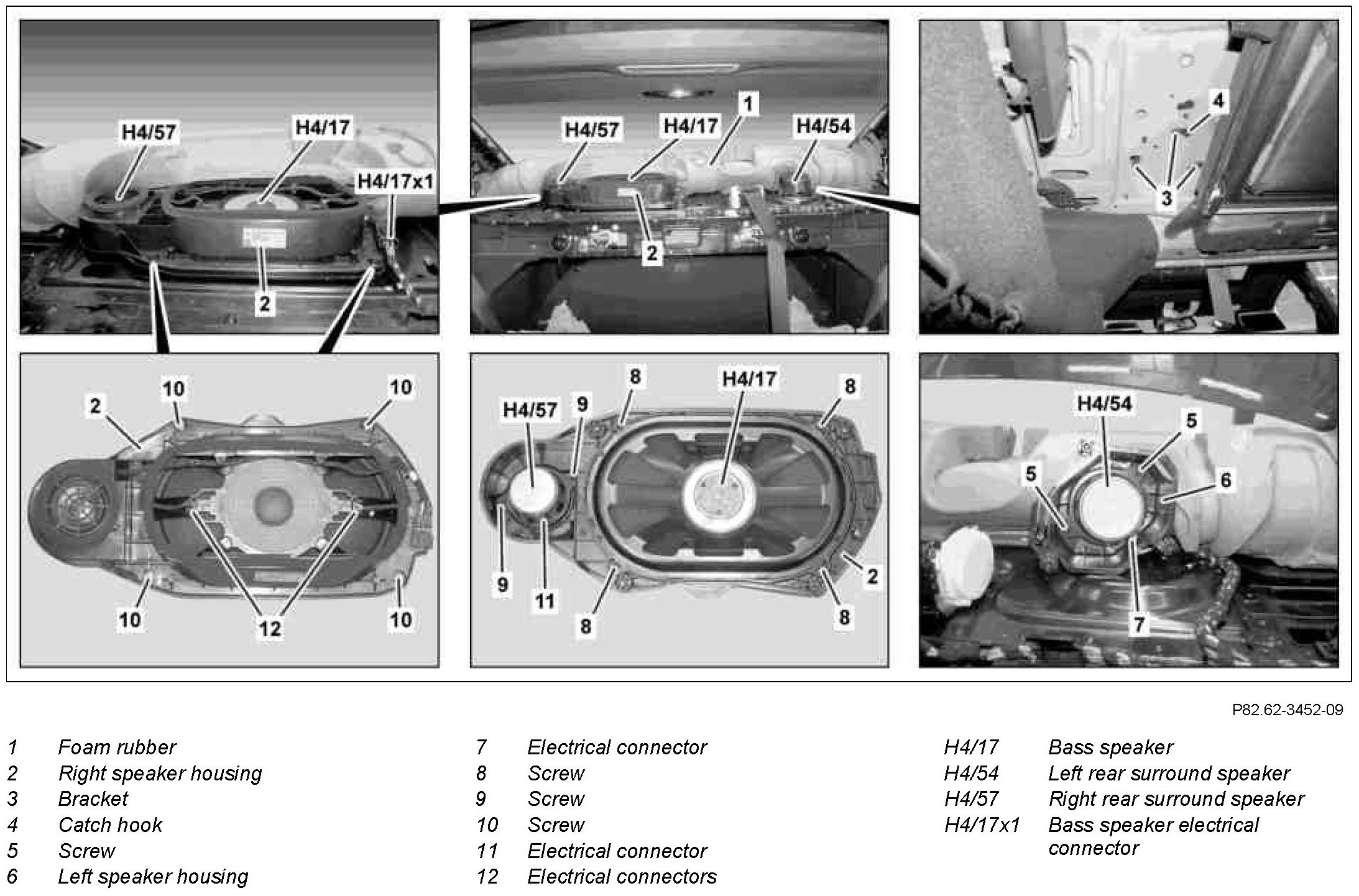

Component Identification:






Steps 1 - 10:
