AR82.62-P-7833-01EW Remove Speaker
- MODEL 212.0## 1#






171 589 00 39 00, Rivet milling cutter






171 589 00 39 01, Milling bit crown

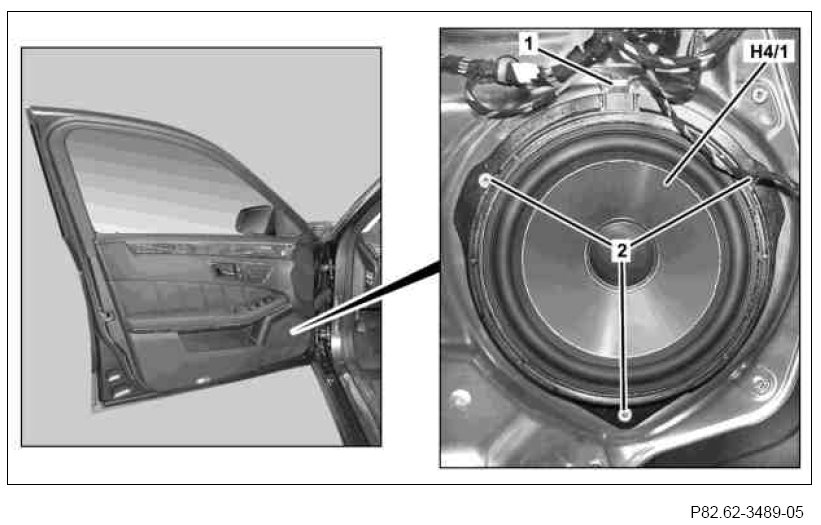

1 Disconnect electrical connector (1) at left front door speaker (H4/1).
2 Mill rivet heads off of rivets (2).
Cordless drill/driver
gotis://G_58.0_01.1

3 Remove left front door speaker (H4/1).
4 Completely remove rivet residues and shavings from front door.
Wet/dry vacuum cleaner
gotis://P_00.12_06.0
Remove all traces of rivet residues. Remaining rivet residues cause corrosion damage at the front door.
The left front door speaker (H4/1) is no longer required. It is replaced with the taxi two-way radio speaker.
