Procedures

AN82.62-P-0002-01EW Retrofit Speaker
- MODEL 212.0## 1#

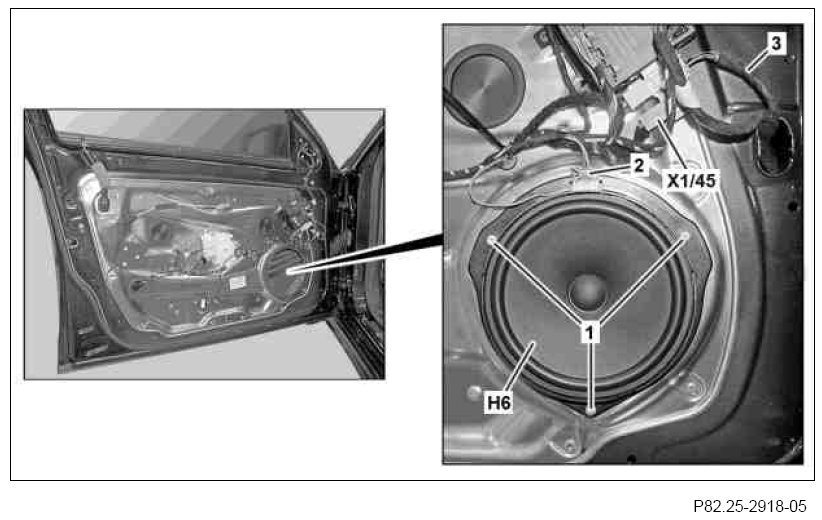

1 Position taxi two-way radio speaker (H6) and use rivets (1) to fasten to front door.
Hand riveter
gotis://K_68-80_06.0

2 Connect black 2-pin coupling (2) of removed left front door speaker at taxi two-way radio speaker (H6).
3 Create two-way radio speaker electrical connector (X1/45) using blue 2-pin connector of taxi two-way radio speaker (H6) and blue 2-pin coupling of taxi/rental vehicle wiring harness (3).
4 Clip two-way radio speaker electrical connector (X1/45), as shown, to electrical connector at left front door control unit.

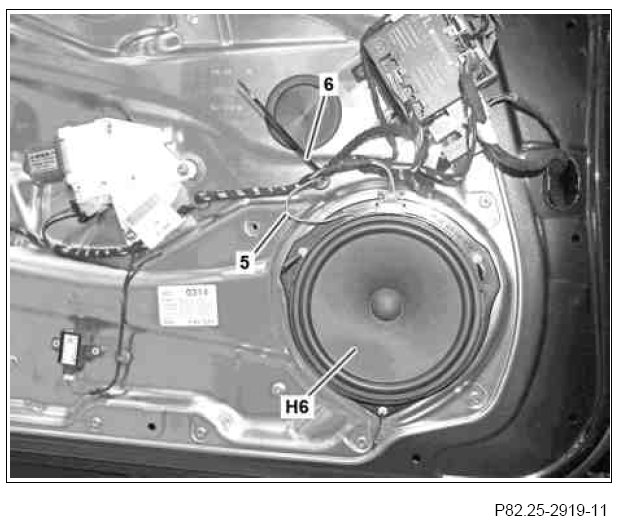

5 Fix electrical line (5) of taxi two-way radio speaker (H6) in place at location marked with green insulation tape using a cable tie (6) at wiring harness of front door.
