AR82.60-P-7545EW Remove/Install Satellite Radio Control Unit



AR82.60-P-7545EW Remove/Install Satellite Radio Control Unit
- with CODE (536) SIRIUS satellite radio

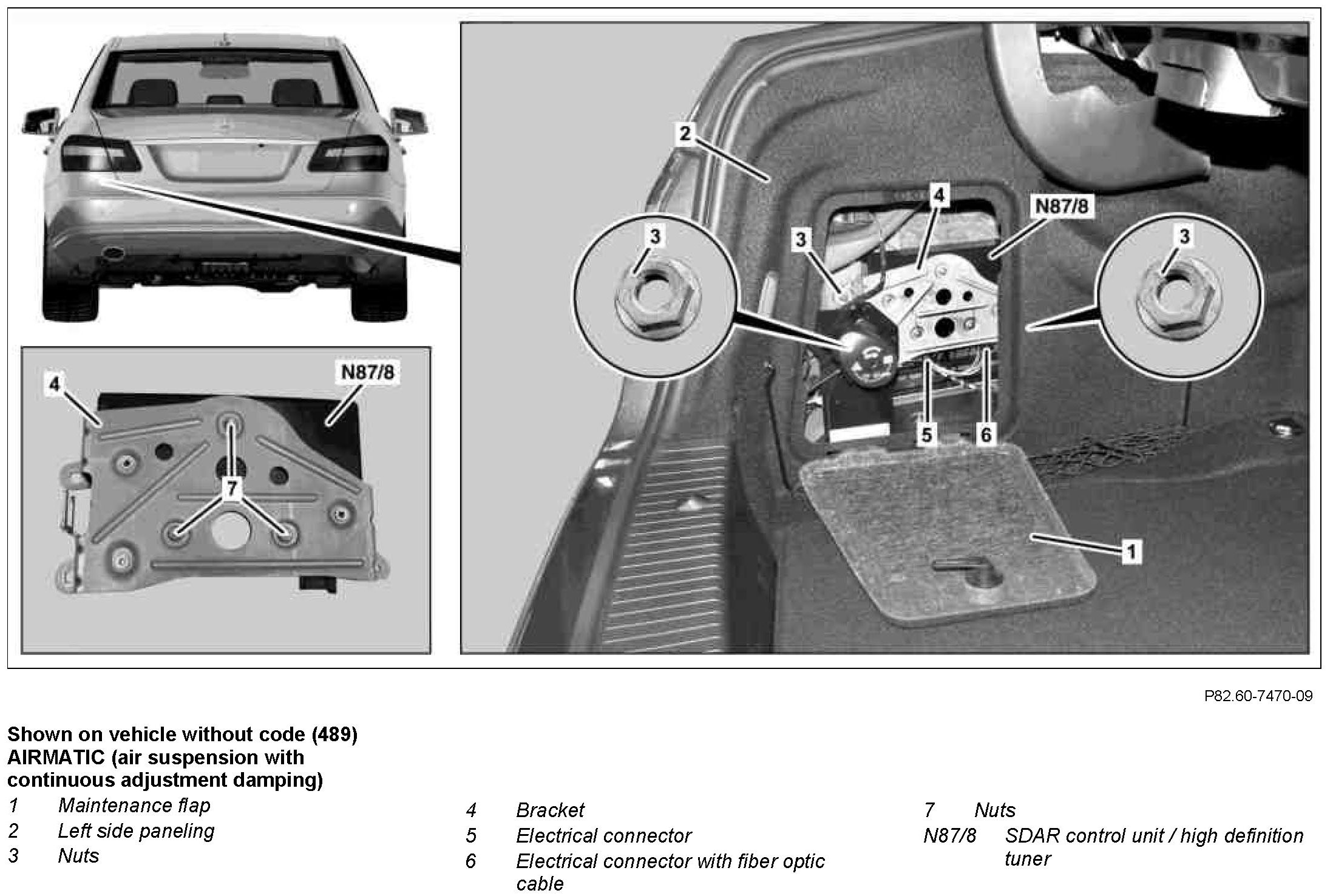

Component Identification:

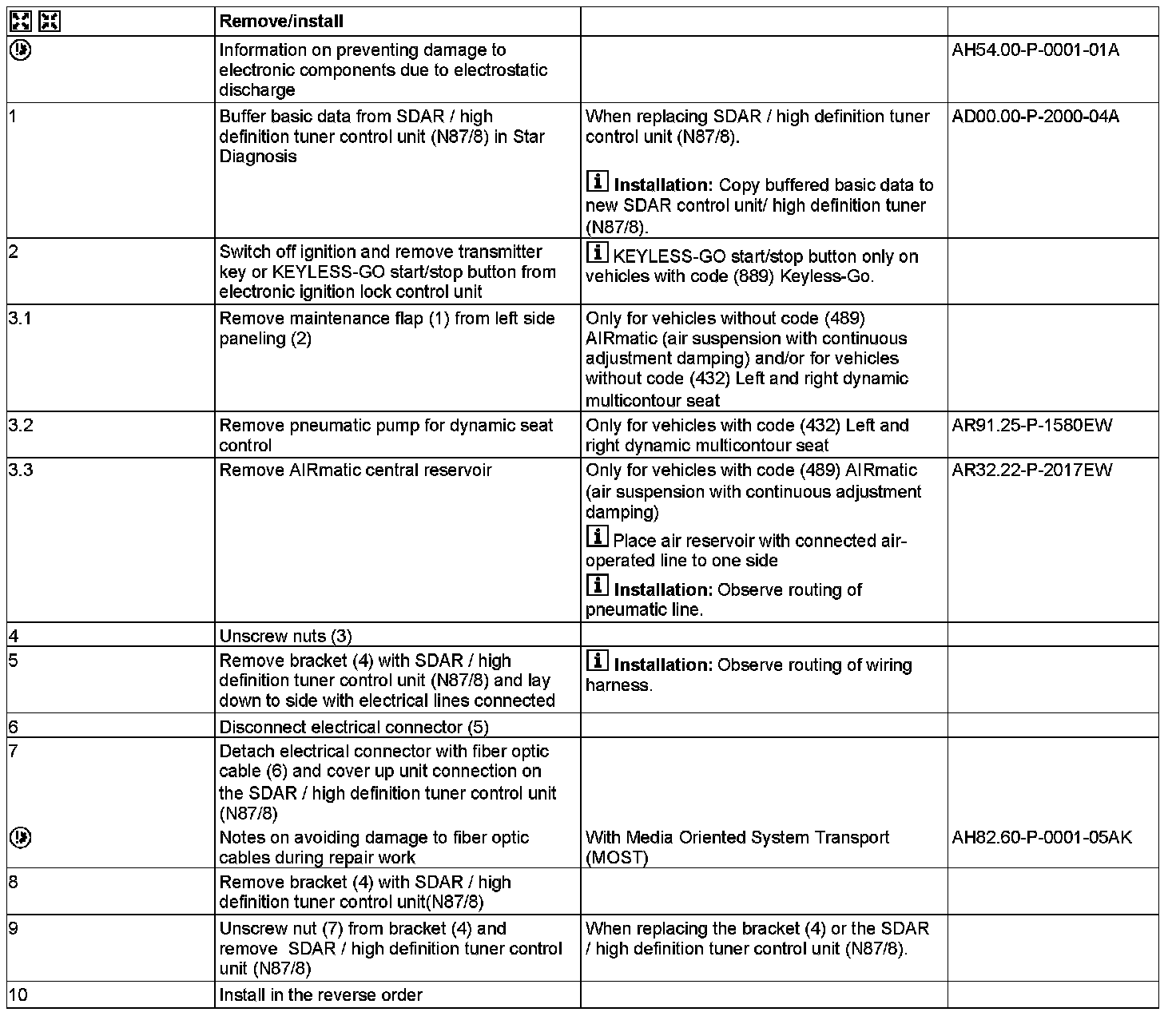

Steps 1 - 10:
