GF82.60-P-5000FL Media Interface Control Unit, Component Description

GF82.60-P-5000FL Media Interface Control Unit, Component Description
- with CODE (518) Media interface

Component Identification:

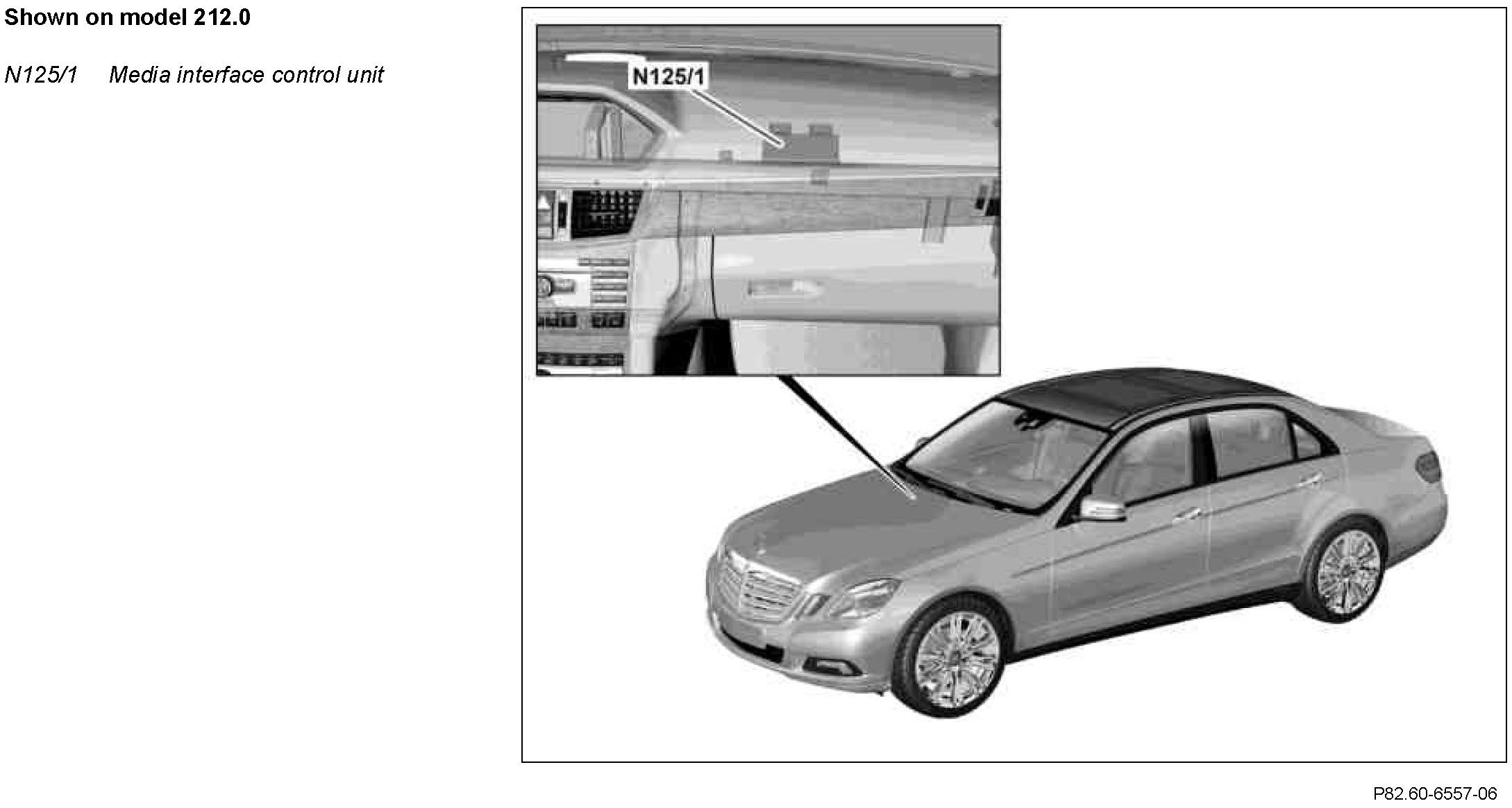

Location
The media interface control unit is located behind the glove box.

Depending on the equipment installed, one of the following control units is installed, hereafter referred to as the "audio equipment":
- Radio (A2) (with code (510) Audio 20 incl. CD changer)
- Radio with auto pilot system (A2/56) (with code (525) MB Audio 50 APS radio or code (511) Audio 50 APS with DVD changer)
- COMAND controller unit (A40/3) (with code (512) COMAND APS with DVD changer, with code (527) COMAND APS with single DVD drive (with navigation) or with code (528) COMAND with DVD changer)

Task
^ Receive signals
^ Transmitting signals

Receive signals
^ Direct lines
^ Media Oriented System Transport (MOST)

Direct lines
- Circuit 31 and circuit 30g power supply
- Audio signals and data via the media interface electrical connector (X18/70) and "Mitsumi CAM62" connector
- Electronic wake-up for MOST

MOST
- Control and operating signals from the audio equipment

Transmitting signals
^ Direct lines
^ MOST

Direct lines
- Power supply to media interface connector in general and for USB over "Mitsumi CAM62" connector
- Control signals to media interface connector over "Mitsumi CAM62" connector

MOST
- Audio signals and data to the audio equipment
