Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Description and Operation >> GF82.60-P-0004-02FL Audio System, Block Diagram

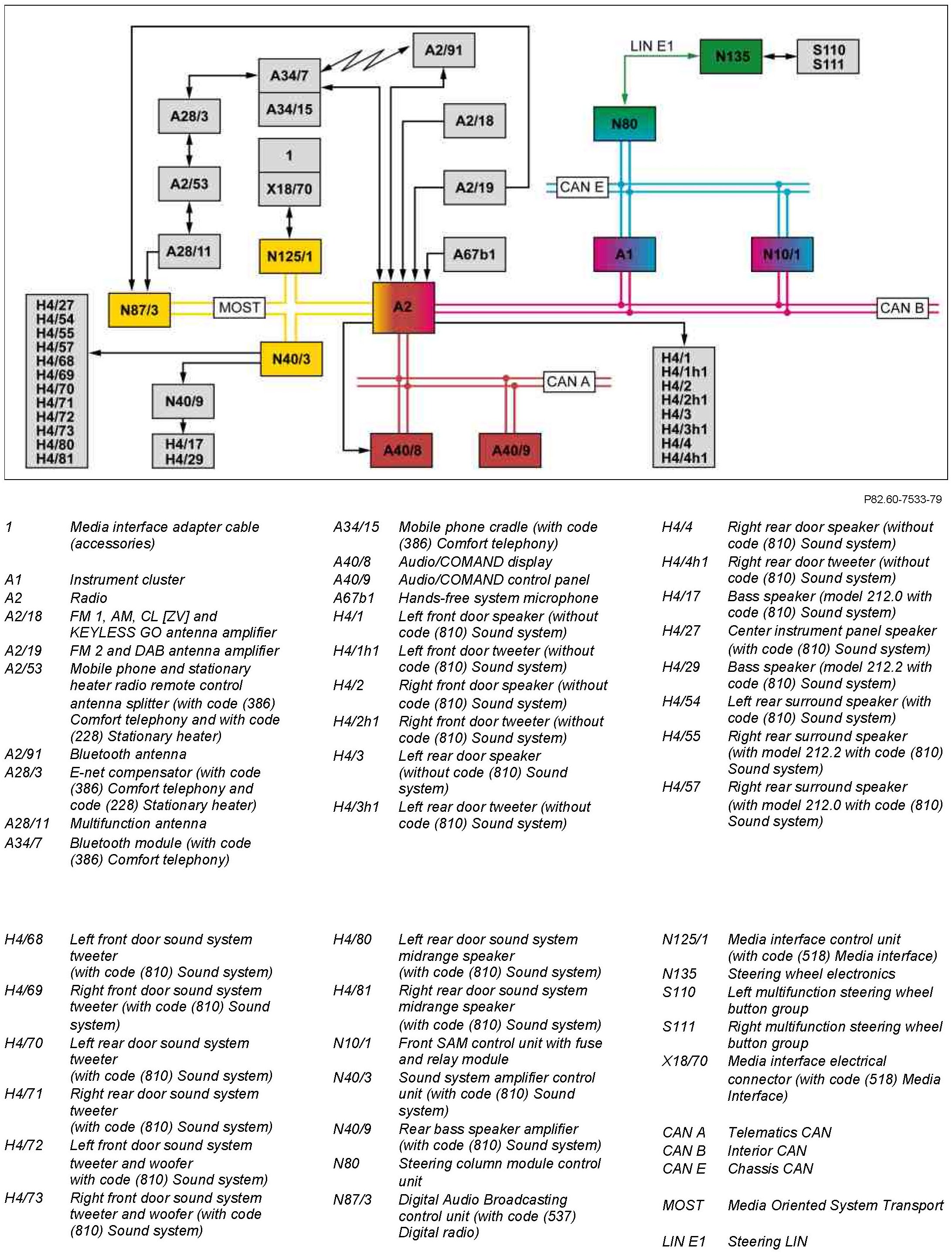

GF82.60-P-0004-02FL Audio System, Block Diagram



GF82.60-P-0004-02FL Audio System, Block Diagram
- with CODE (510) Audio 20 with CD changer



Component Identification:
