AN82.25-P-1000-18EW Route And Connect Wiring Harness In Trunk



AN82.25-P-1000-18EW Route And Connect Wiring Harness In Trunk
- 212.0## 1#






220 589 01 99 00, Wiring harness repair kit

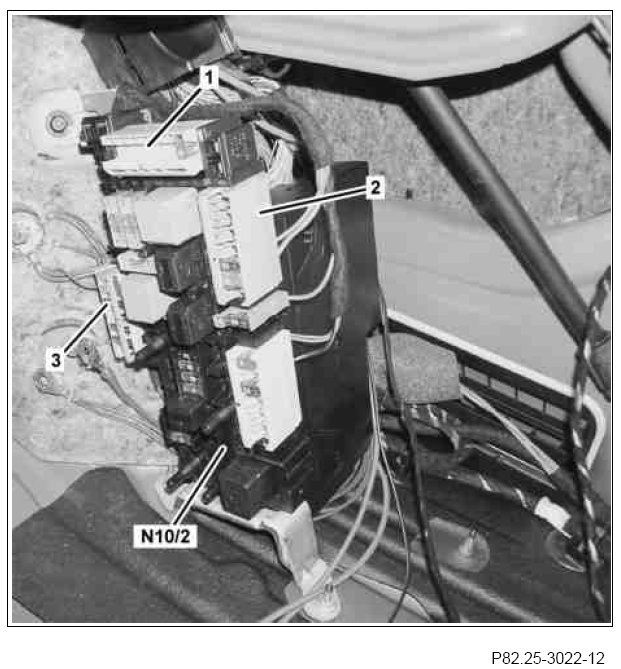

1 Unclip violet 7-pin fuse holder (2), green 7-pin fuse holder (1) and blue 7-pin fuse holder (3) from brackets at rear SAM control unit with fuse and relay module (N10/2).
The violet 7-pin fuse holder (2), the green 7-pin fuse holder (1) and the blue 7-pin fuse holder (3) are installed depending on the vehicle equipment.






Only perform operation steps 2 and 3 on vehicles in which the violet 7-pin fuse holder (2) is installed at the rear SAM control unit with fuse and relay module (N10/2).

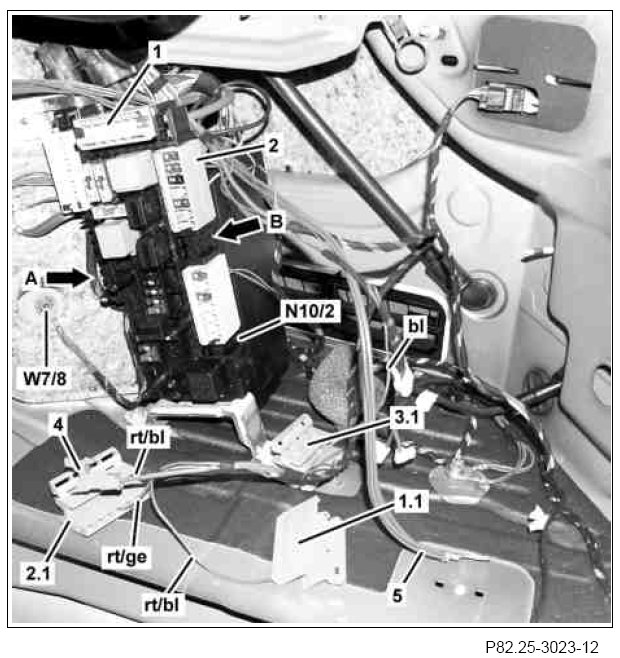

2 Remove red/yellow line (rt/ge) from slot "4" at violet 7-pin fuse holder (2.1) of taxi/rental vehicle wiring harness and install in slot "4" of violet 7-pin fuse holder (2) previously unclipped from rear SAM control unit with fuse and relay module (N10/2) .
3 Clip in fuse holder (2) at rear SAM control unit with fuse and relay module (N10/2).
4 Clip in violet 7-pin fuse holder (2.1) of taxi/rental vehicle wiring harness at rear SAM control unit with fuse and relay module (N10/2).
On vehicles in which the violet 7-pin fuse holder (2) is not installed at the rear SAM control unit with fuse and relay module (N10/2).






Only perform operation steps 5 and 6 on vehicles in which the green 7-pin fuse holder (1) is installed at the rear SAM control unit with fuse and relay module (N10/2).

5 Remove red/blue line (rt/bl) from slot "7" at green 7-pin fuse holder (1.1) of taxi/rental vehicle wiring harness and install in slot "7" of green 7-pin fuse holder (1) previously unclipped from rear SAM control unit with fuse and relay module (N10/2) .
6 Clip in green 7-pin fuse holder (1) at rear SAM control unit with fuse and relay module (N10/2).
7 Clip in green 7-pin fuse holder (1.1) of taxi/rental vehicle wiring harness at rear SAM control unit with fuse and relay module (N10/2).
On vehicles in which the green 7-pin fuse holder (1) is not installed at the rear SAM control unit with fuse and relay module (N10/2).






Only perform operation steps 8 and 9 on vehicles in which the blue 7-pin fuse holder is already installed in the slot (arrow A) at the rear SAM control unit with fuse and relay module (N10/2).

8 Remove blue line (bl) from slot "4" at blue 7-pin fuse holder (3.1) of taxi/rental vehicle wiring harness and install in slot "4" of blue 7-pin fuse holder previously unclipped in slot (arrow A) at rear SAM control unit with fuse and relay module (N10/2).
9 Clip in blue 7-pin fuse holder at rear SAM control unit with fuse and relay module (N10/2).
10 Clip in blue 7-pin fuse holder (3.1) at rear SAM control unit with fuse and relay module (N10/2).
On vehicles in which the blue 7-pin fuse holder is not installed at the rear SAM control unit with fuse and relay module (N10/2).






11 Install violet fuse carrier (4) with red/blue line (rt/bl) of taxi/rental vehicle wiring harness in slot number "89" (arrow B) at rear SAM control unit with fuse and relay module (N10/2).
12 Route ground lines (5) behind rear SAM control unit with fuse and relay module (N10/2).
13 Connect ground lines (5) to right trunk wheel arch ground point (W7/8) and screw tight.
14 Fix taxi/rental vehicle wiring harness in place at vehicle wiring harness using cable tie.
15 Insert fuses as listed below:
- 7.5 amps in slot "7" of green 7-pin fuse holder (1 or 1.1) installed at rear SAM control unit with fuse and relay module (N10/2)
- 7.5 amps in slot "4" of violet 7-pin fuse holder (2 or 2.1) installed at rear SAM control unit with fuse and relay module (N10/2)
- 7.5 amps in slot "4" of blue 7-pin fuse holder (3.1) installed at rear SAM control unit with fuse and relay module (N10/2)
- 30 amps in the violet fuse carrier (4)
