AN82.25-P-1000-15EW Retrofit Radio Data Transmission Equipment Carrier

AN82.25-P-1000-15EW Retrofit Radio Data Transmission Equipment Carrier
- 212.0## 1#

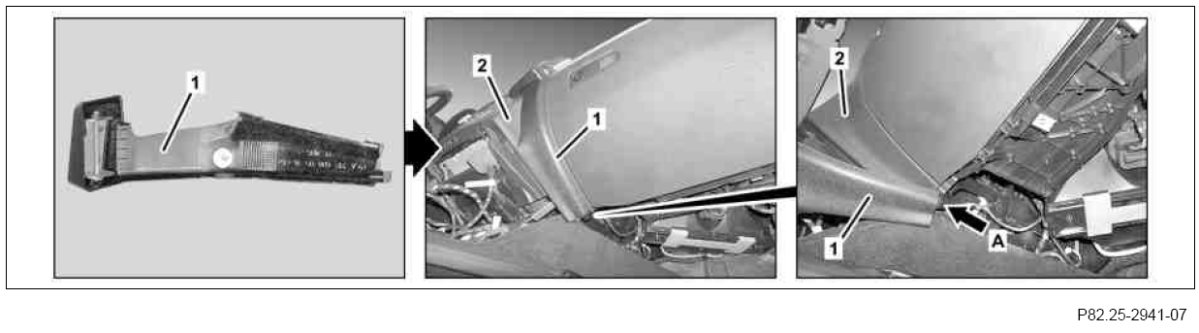

1 Hook radio data transmission equipment carrier (1) into lower area (arrow A) onto instrument panel (2) and clip onto carrier plate (1).

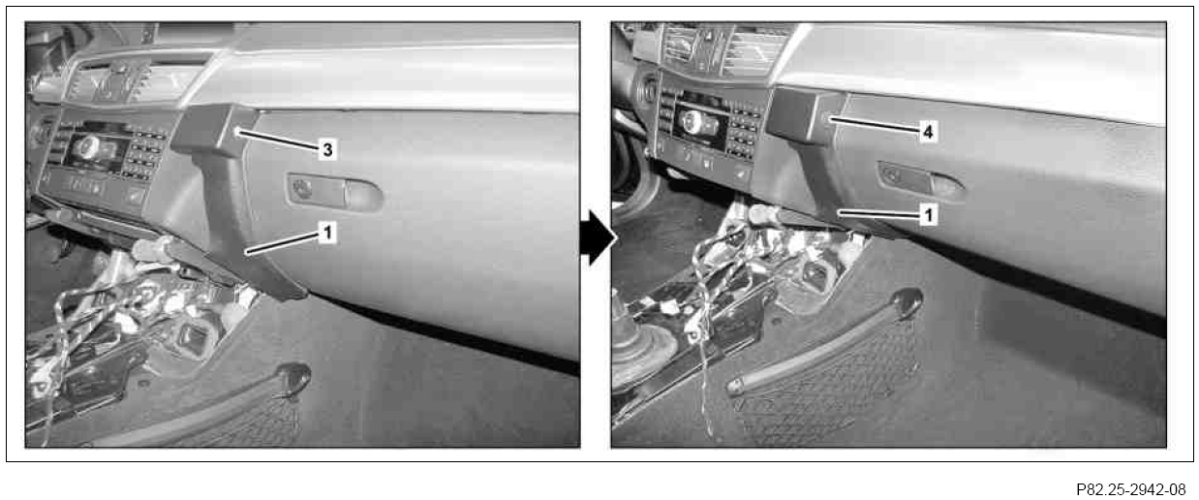

2 Tighten radio data transmission equipment carrier (1) with screw/bolt (3) to carrier plate (1).
3 Clip cover (4) into radio data transmission equipment carrier (1).

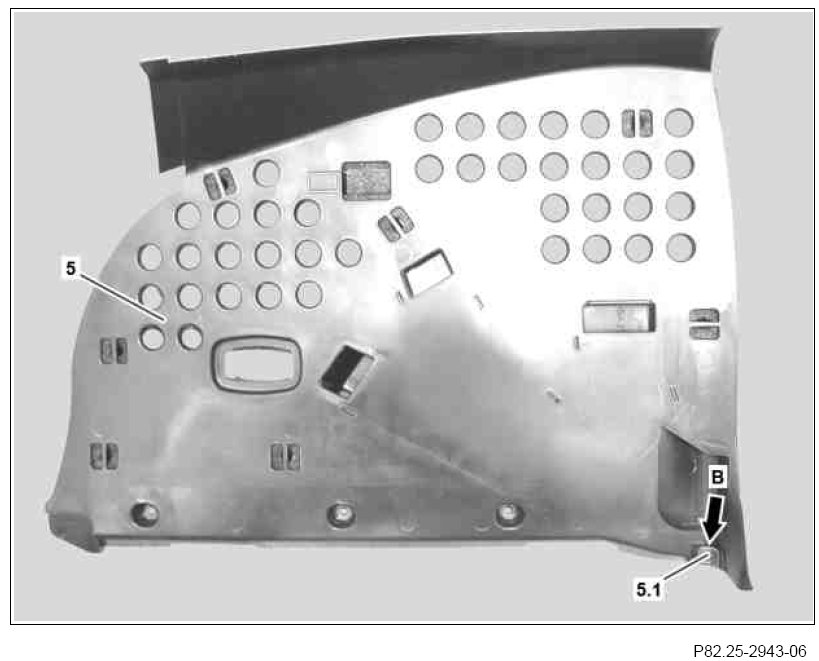

4 Break out section (5.1) along perforation (arrow B) and remove from panel below instrument panel at right (5).
