AN82.25-P-1000-14EW Retrofit Carrier Plate For Radio Data Transmission Equipment Carrier

AN82.25-P-1000-14EW Retrofit Carrier Plate For Radio Data Transmission Equipment Carrier
- 212.0## 1#

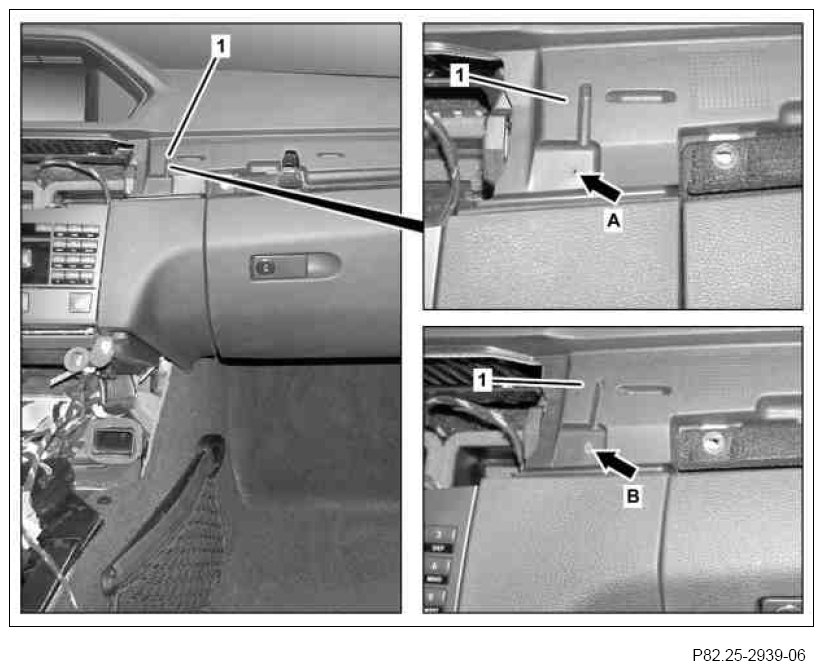

1 Drill a 2 mm hole (arrow B) through upper rubber coating of instrument panel in accordance with marking (arrow A) on instrument panel (1).
Cordless drill/driver
gotis://G_58.0_01.1
Use drill bit with a diameter of 3.5 mm. Located behind the bore (arrow B) is a reinforcement on the instrument panel, to which the carrier plate is bolted.

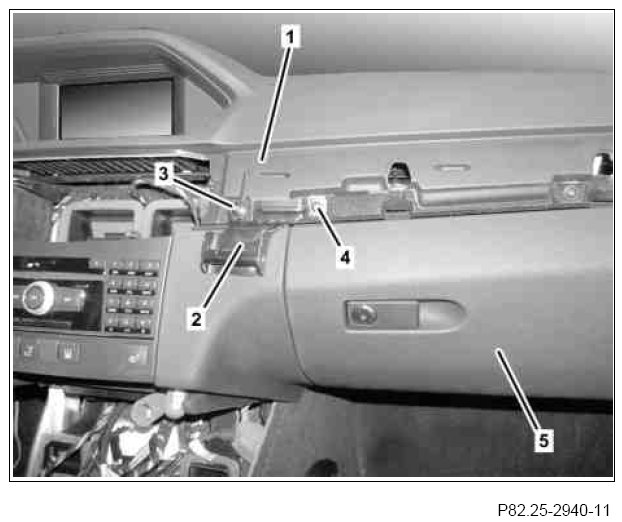

2 Position carrier plate (2) at instrument panel (1).
3 Tighten carrier plate (2) equally with screw/bolt (3) and screw/ bolt (4) of glove box (5).
