AN82.25-P-1000-11EW Retrofitting Emergency Alarm Activate Button

AN82.25-P-1000-11EW Retrofitting Emergency Alarm Activate Button
- 212.0## 1#

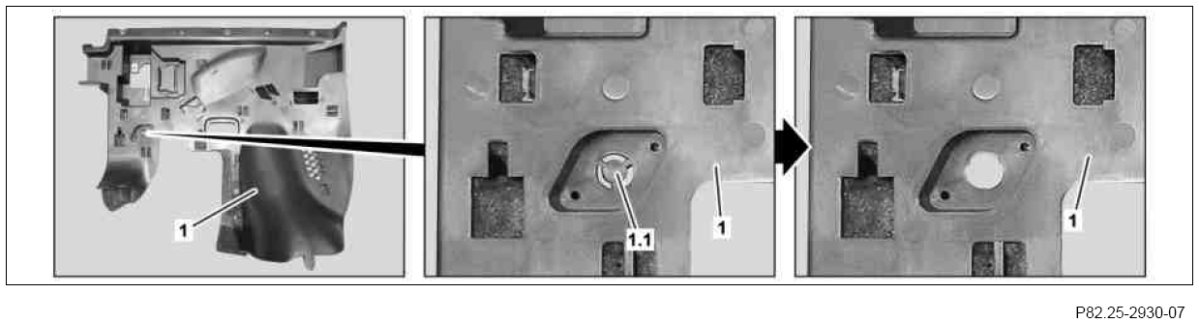

1 Break section (1.1) out of panel below the left instrument panel (1).
2 Deburr panel below left instrument panel (1) in the area of the opening.

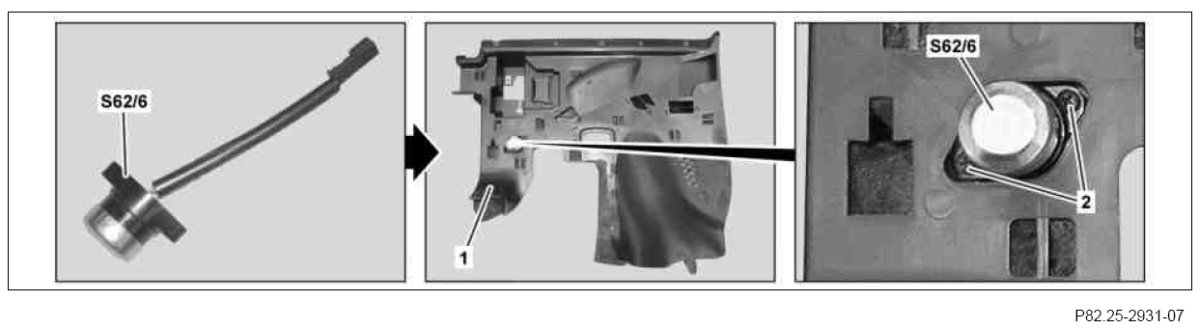

3 Insert taxi emergency alarm system "trigger" button (S62/6), as shown, into the panel below the left instrument panel (1).
4 Fasten taxi emergency alarm system "trigger" button (S62/6) using screws (2).

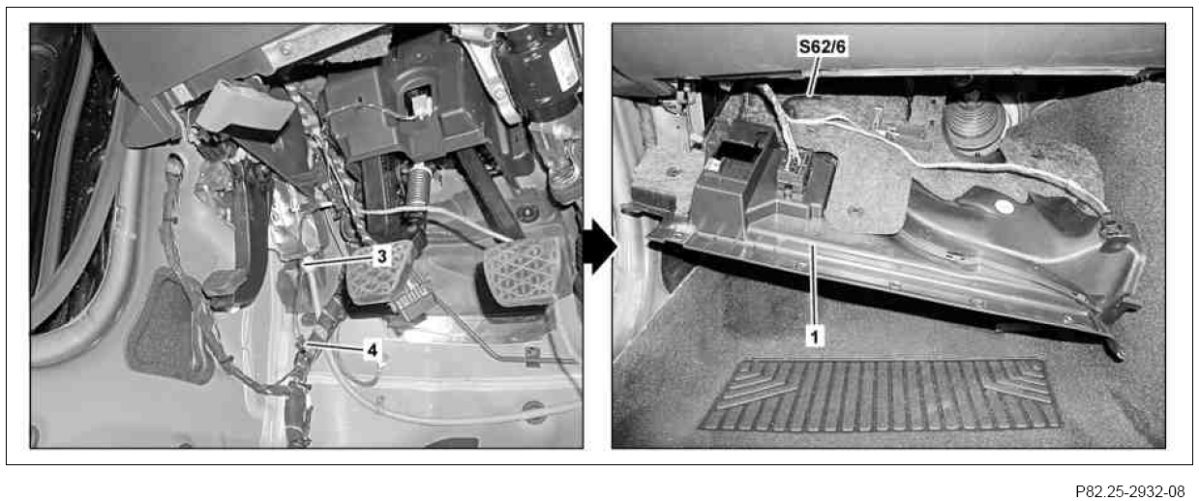

5 Place cover under left instrument panel (1) into driver footwell.
6 Connect black, 2-pin coupling (4) of taxi/rental vehicle wiring harness (3) to black, 2-pin connector of the taxi emergency alarm system "trigger" button (S62/6).
The cover below the left instrument panel (1) is fitted later on.
