AN82.25-P-1000-03EW Retrofit Special Vehicle Multifunction Control Unit (SVMCU)

AN82.25-P-1000-03EW Retrofit Special Vehicle Multifunction Control Unit (SVMCU)
- 212.0## 1#

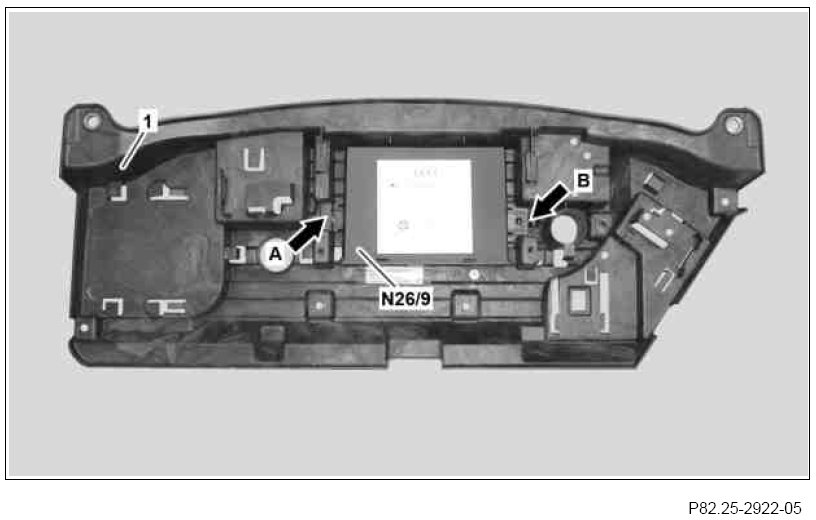

1 Hook special vehicle multifunction control unit (N26/9) in cutout (arrow A) of carrier plate (1).
On vehicles with code (228) Stationary heater and with code (386) Comfort telephony, the carrier plate (1) is already installed in the trunk.

2 Clip special vehicle multifunction control unit (N26/9) into lock (arrow B) of carrier plate (1).

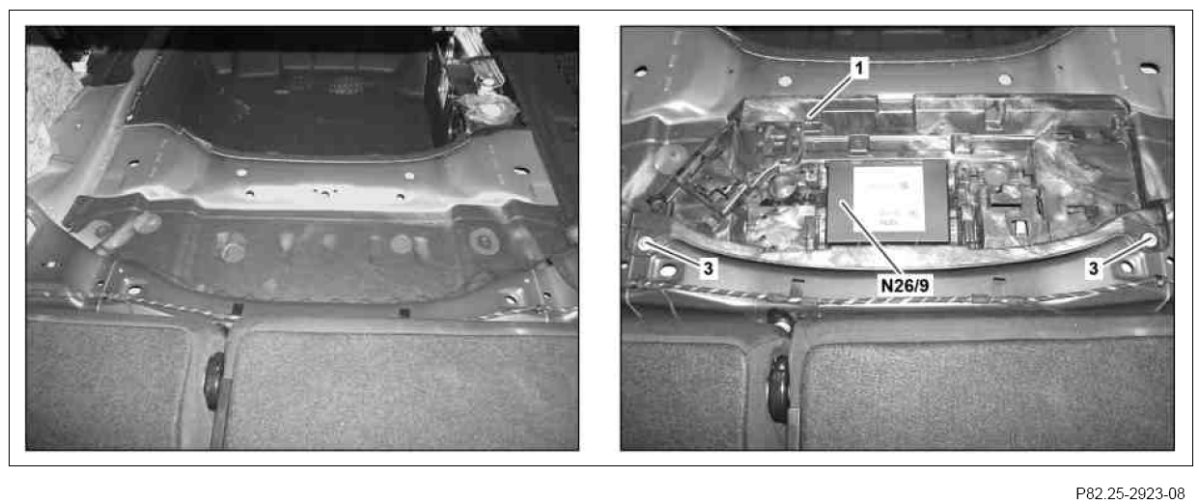

3 Place carrier plate (1) with special vehicle multifunction control unit (N26/9) in trunk and align with attachment points.
Only on vehicles without code (228) Stationary heater and without code (386) Comfort telephony.

4 Tighten carrier plate (1) with special vehicle multifunction control unit (N26/9) using screws/bolts (3).
Only on vehicles without code (228) Stationary heater and without code (386) Comfort telephony.
