Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Night Vision System >> Service and Repair >> Removal and Replacement

Removal and Replacement



AR54.30-P-3100EW Remove/install Night View Assist Control Unit
- with CODE (610) Night vision assist

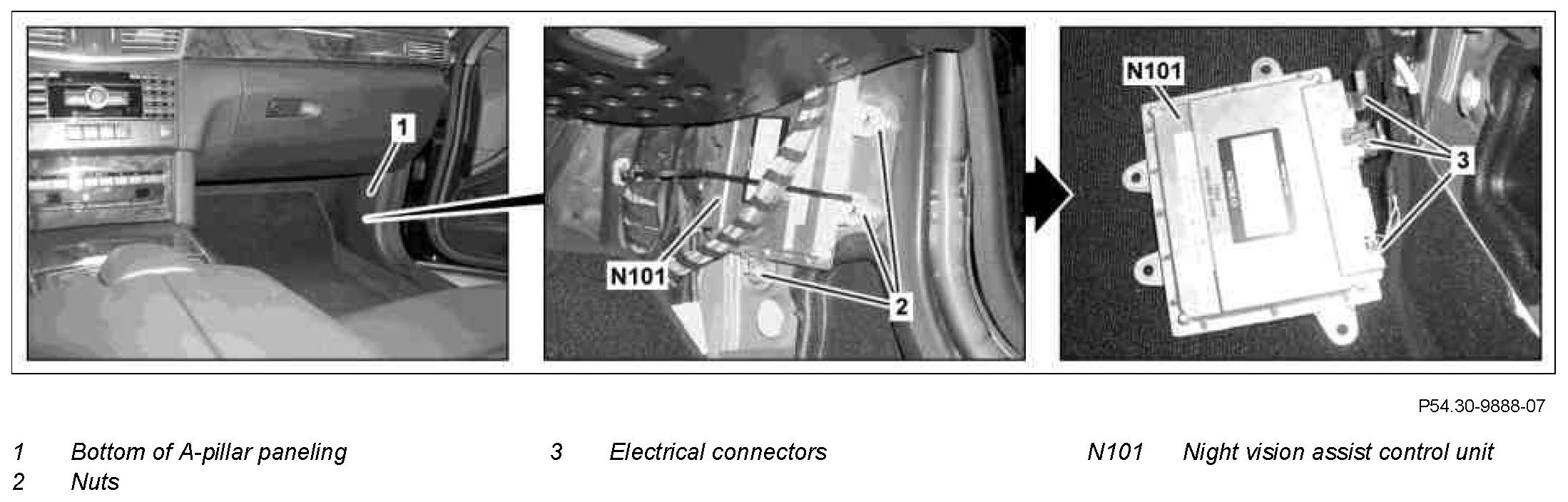

Component Identification:

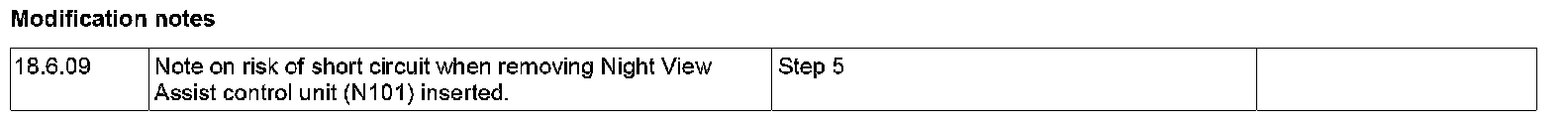

Modification Notes:

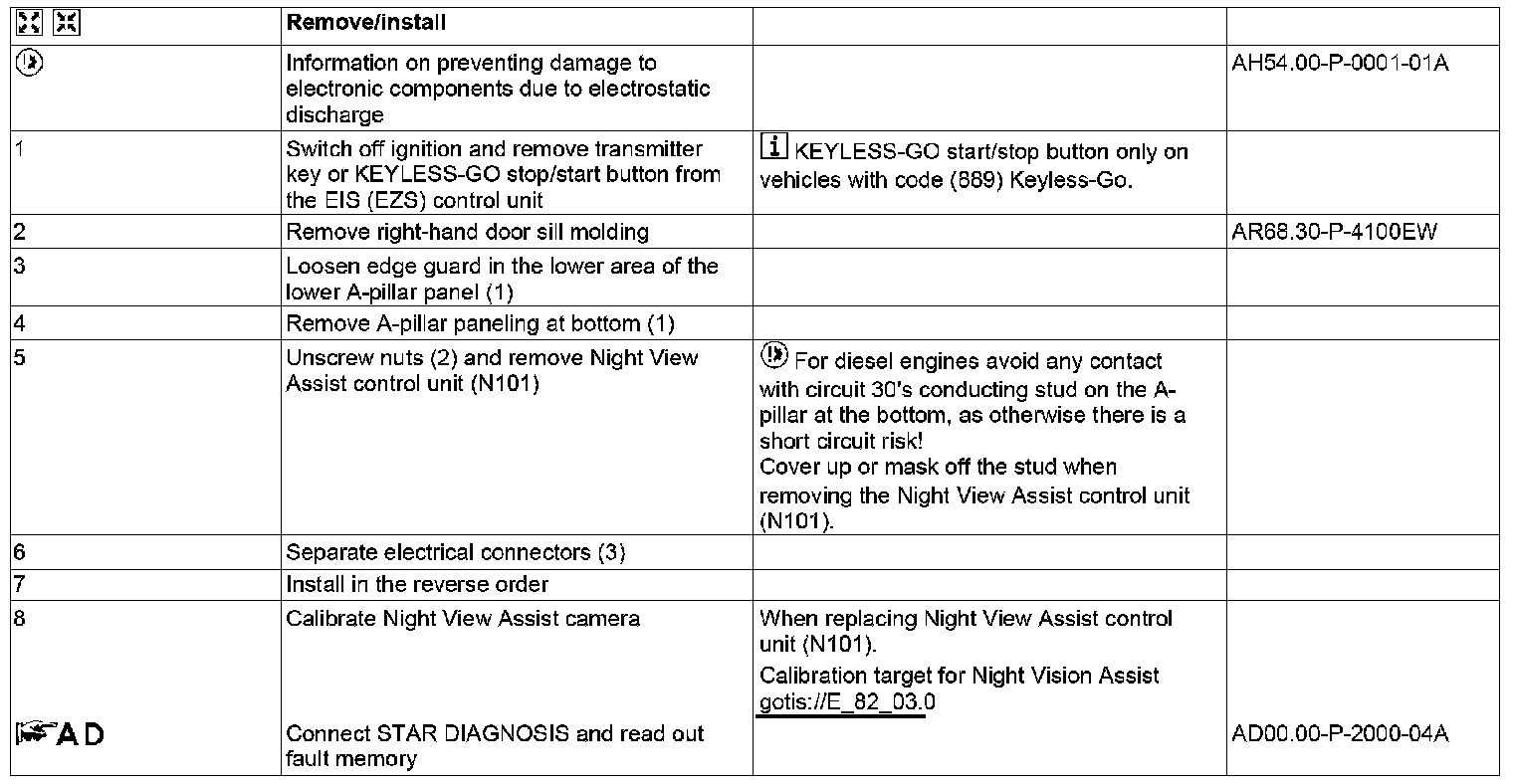

Steps 1-8:
