Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Night Vision System >> Service and Repair >> Procedures >> AN54.30-P-0001EW Retrofit Night View Assist

AN54.30-P-0001EW Retrofit Night View Assist



AN54.30-P-0001EW Retrofit Night View Assist
- with CODE (512) COMAND APS with DVD changer
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (608) Adaptive high beams assist

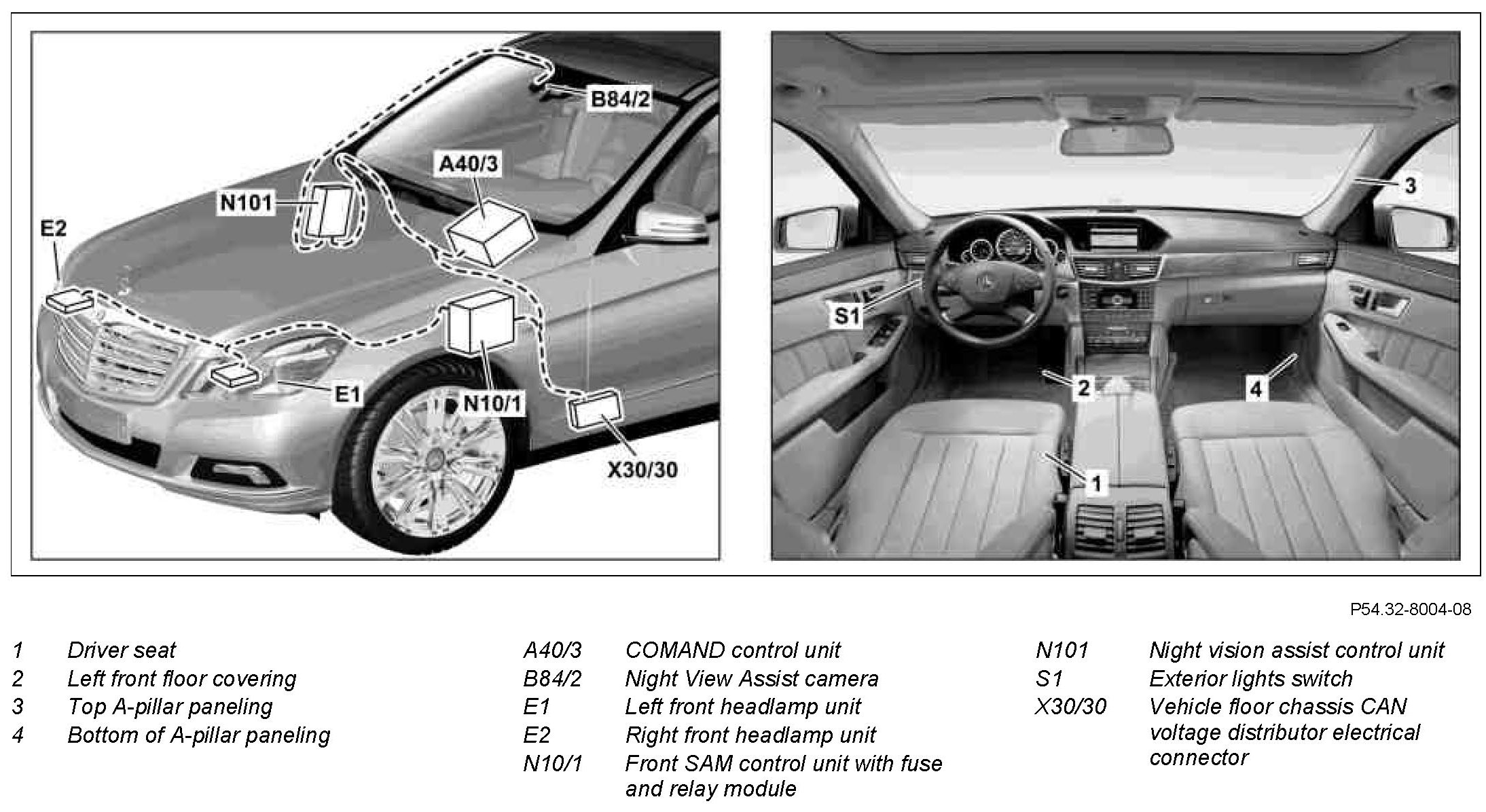

Component Identification:

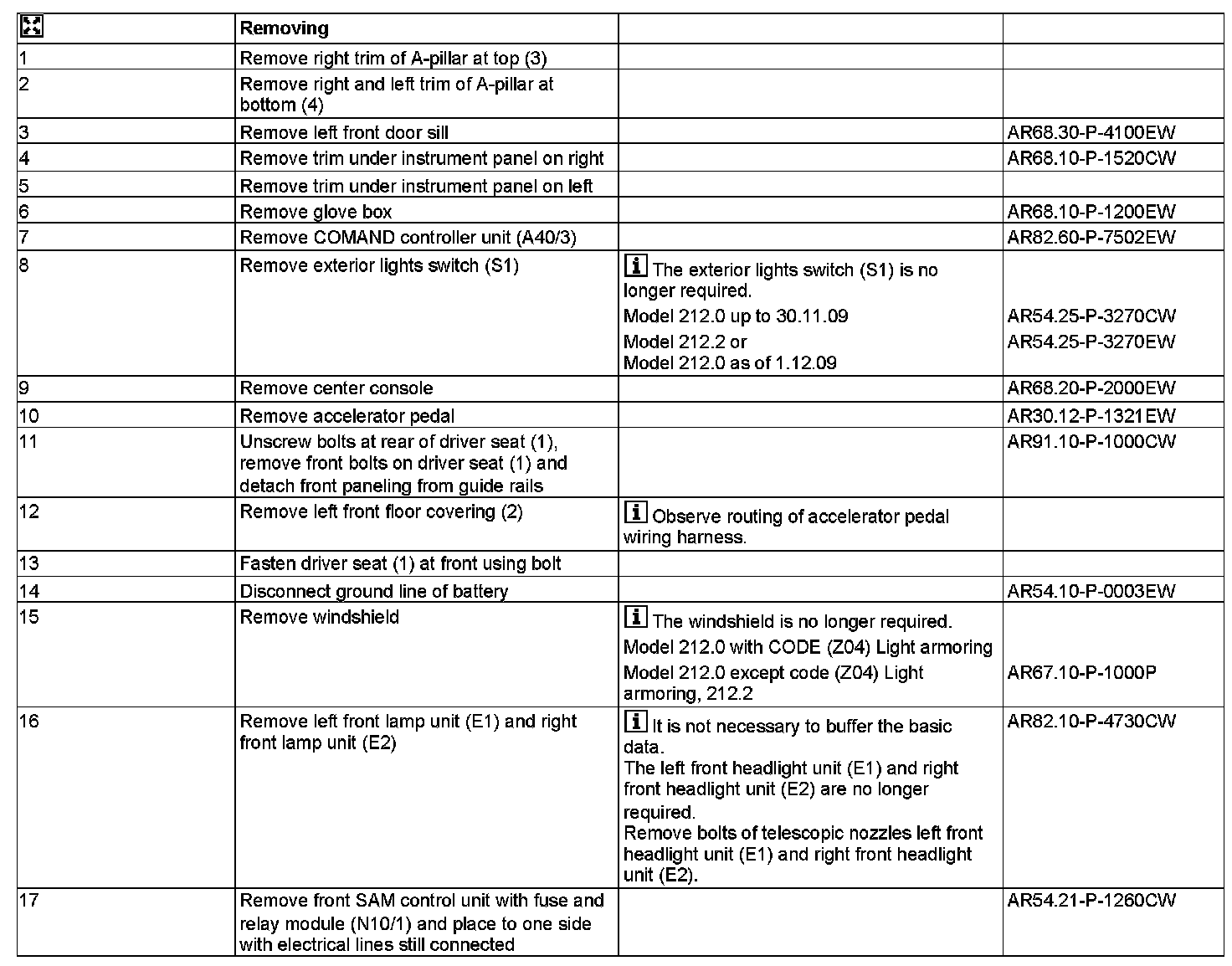

Steps 1-17:

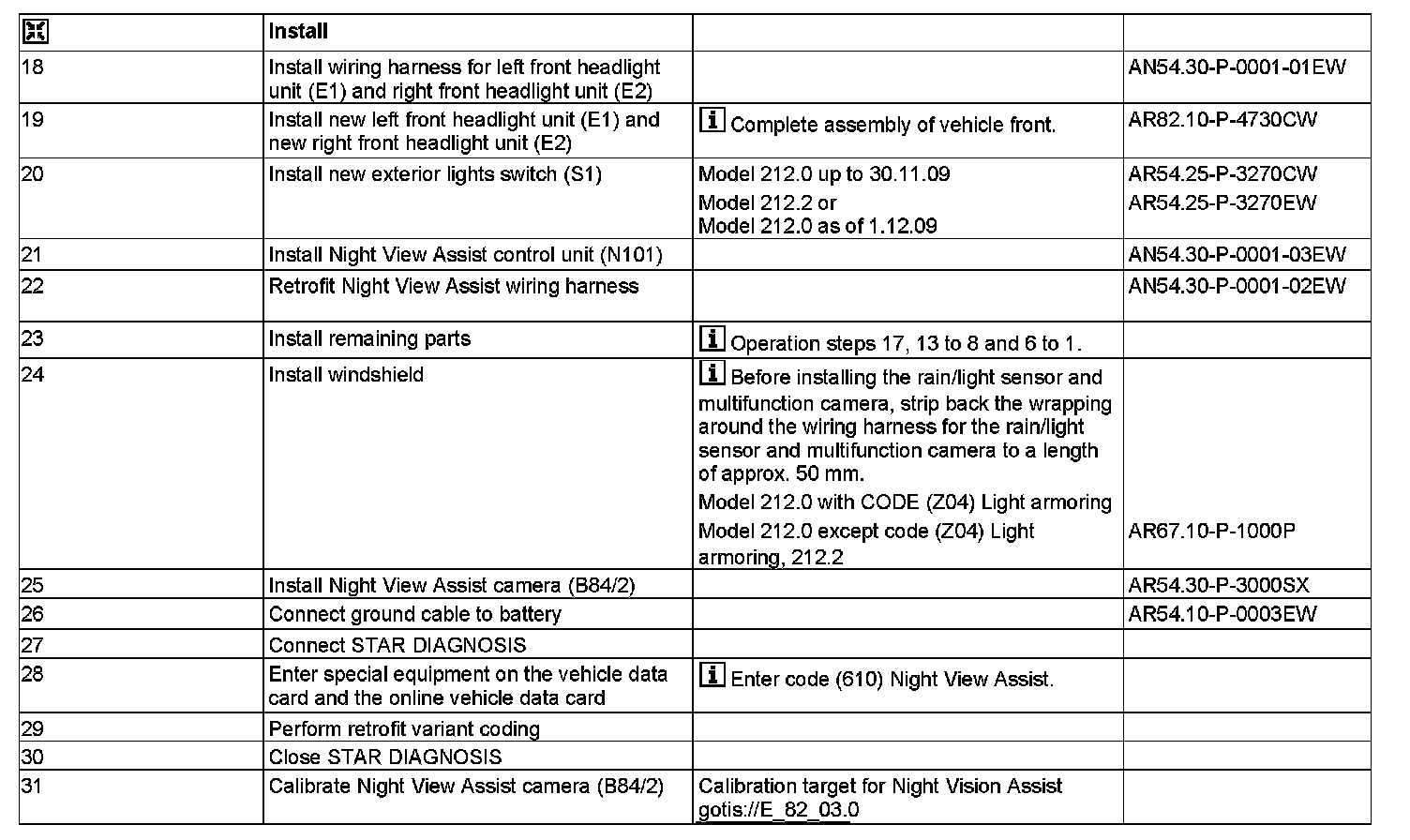

Steps 18-31:

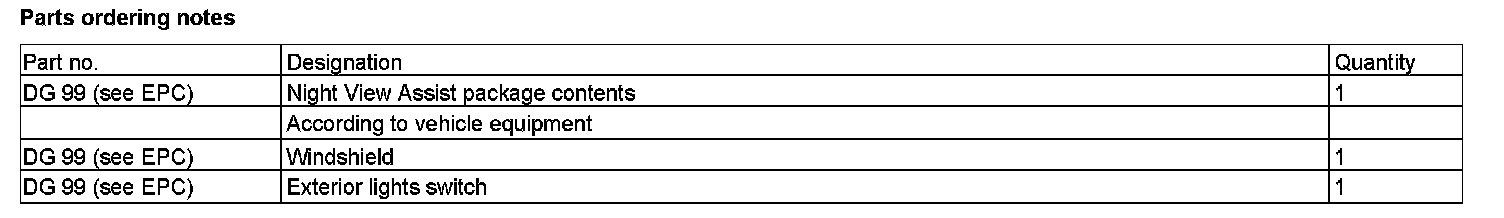

Parts Ordering Notes:
