AN54.30-P-0001-03EW Retrofit Night View Assist control unit

AN54.30-P-0001-03EW Retrofit Night View Assist Control Unit

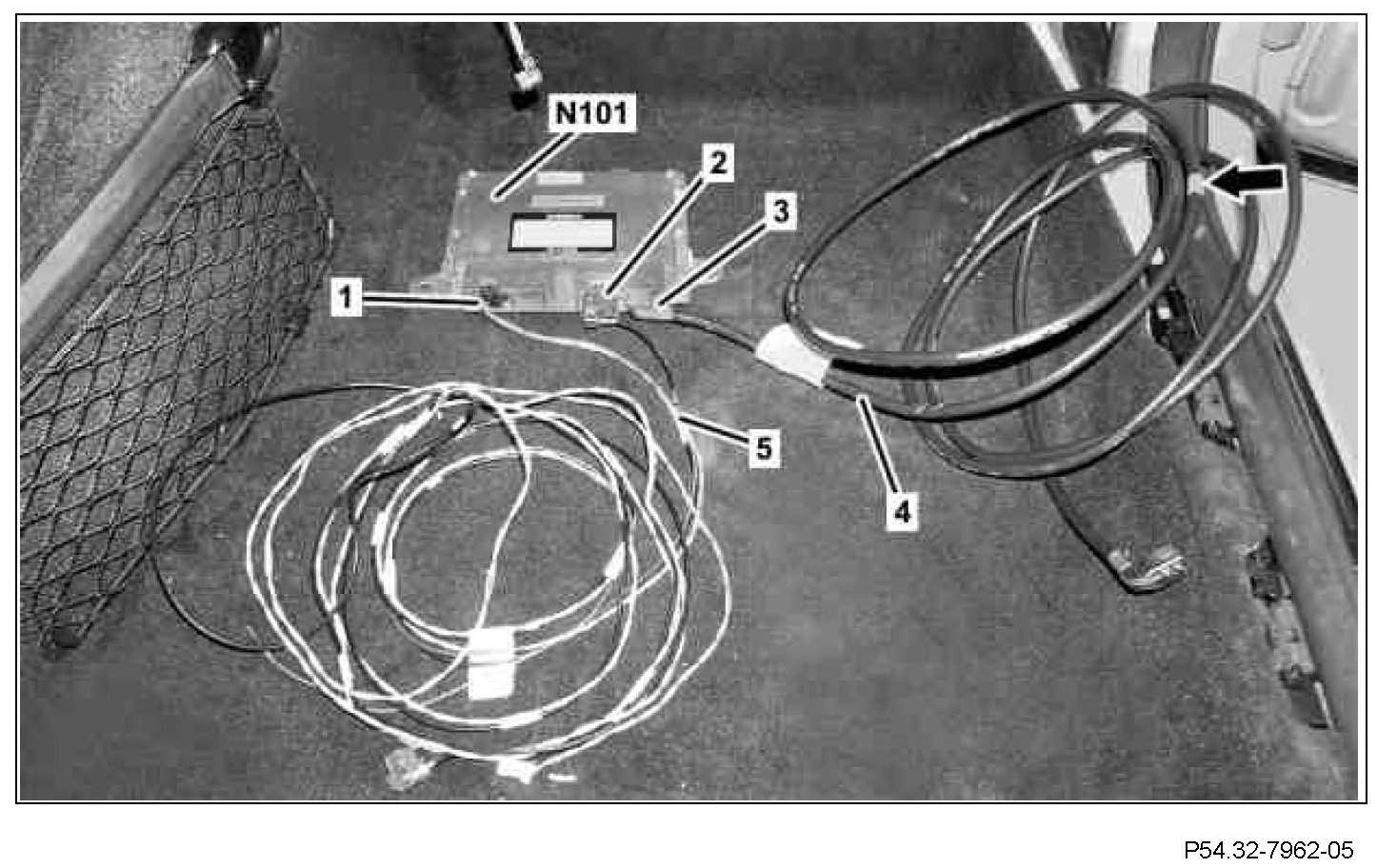

1. Connect black 6-pin connector (1) of wiring harness for power supply (5) to Night View Assist control unit (N101).
2. Connect violet 2-pin connector (2) of wiring harness for power supply (5) to Night View Assist control unit (N101).
3. Connect silver 10-pin connector (3) of low voltage differential signal (LVDS) line (4) to Night View Assist control unit (N101).
The silver 10-pin connector (3) of the LVDS line (4), which is located in the vicinity of the white length reference marking (arrow), is to be used.

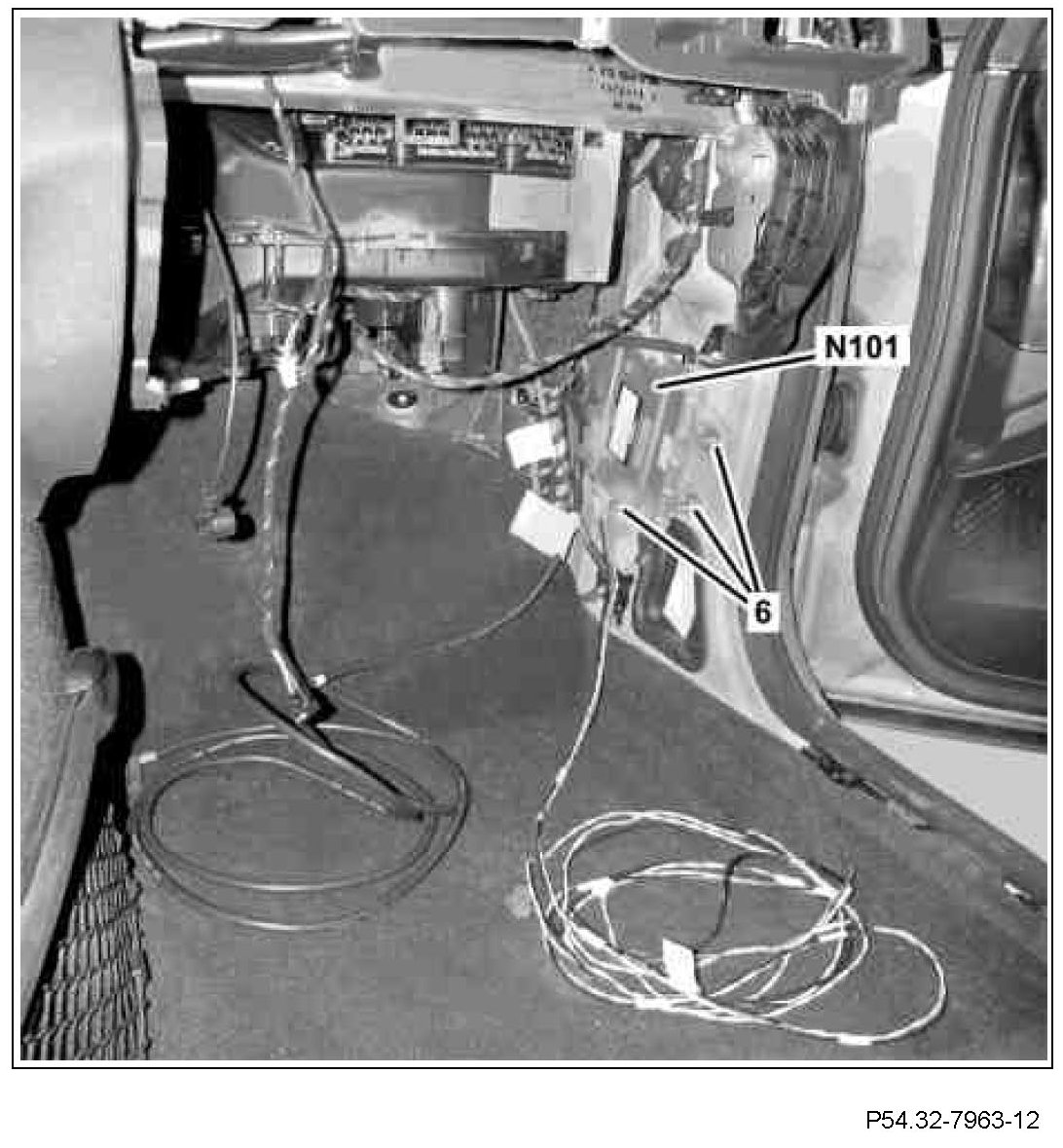

4. Position Night View Assist control unit (N101) to supports in area of right A-pillar and fasten in place using sheet metal nuts (6).
