AN82.61-P-0001-06EWA Retrofit MOST Fiber Optic Cable Wiring Harness



AN82.61-P-0001-06EWA Retrofit MOST Fiber Optic Cable Wiring Harness
- with CODE (537) Digital radio
- with CODE (810) Sound system
- with CODE (863) Digital/analog TV tuner

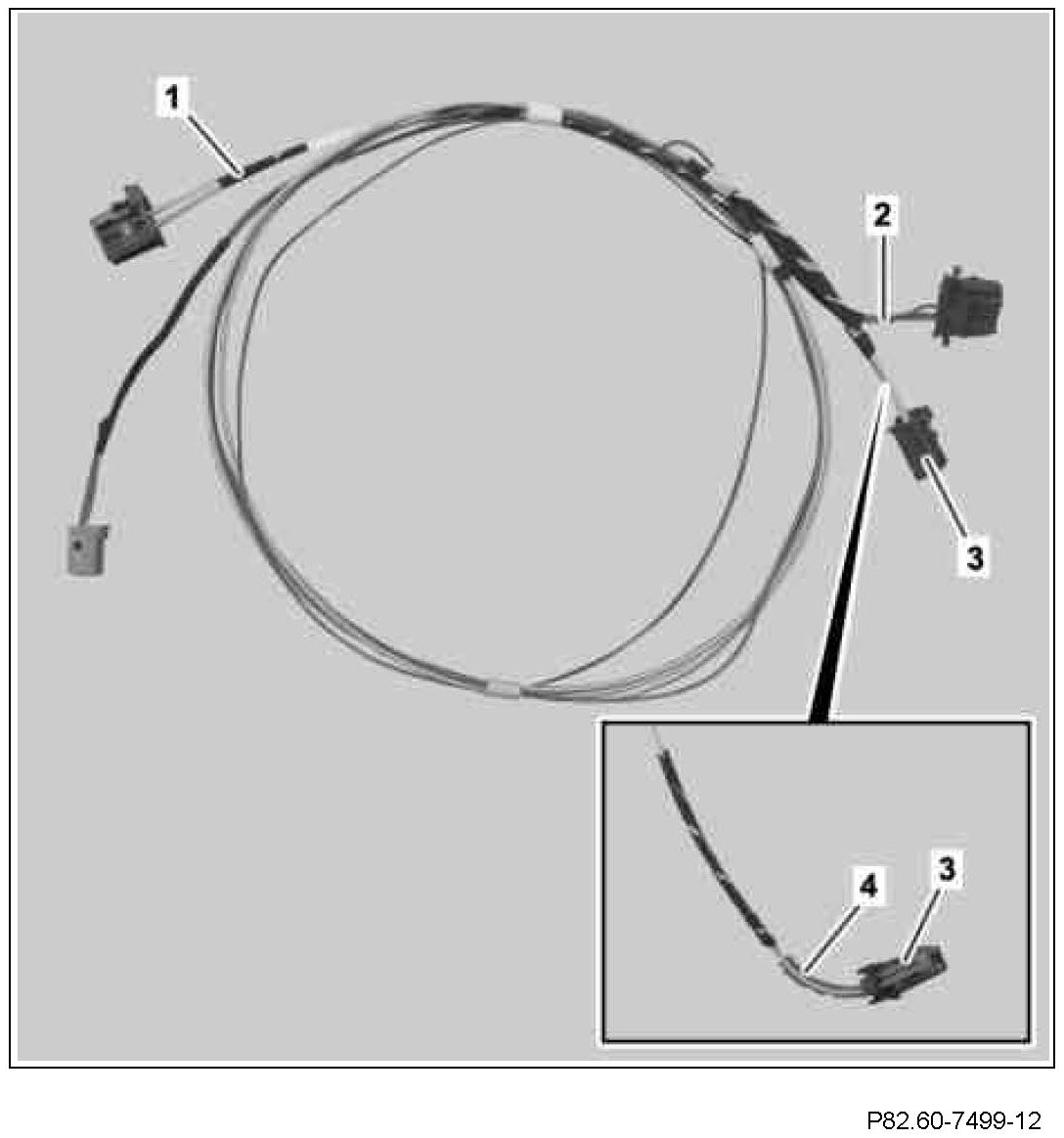

1 Remove optical fiber (1) from power supply wiring harness (2).

Observe installation position of optical fiber (1). The coupling (3) will be attached to the media interface control unit at a later time.

2 Attach protective sheaths (4), as shown, in area of coupling (3) at optical fiber (1).

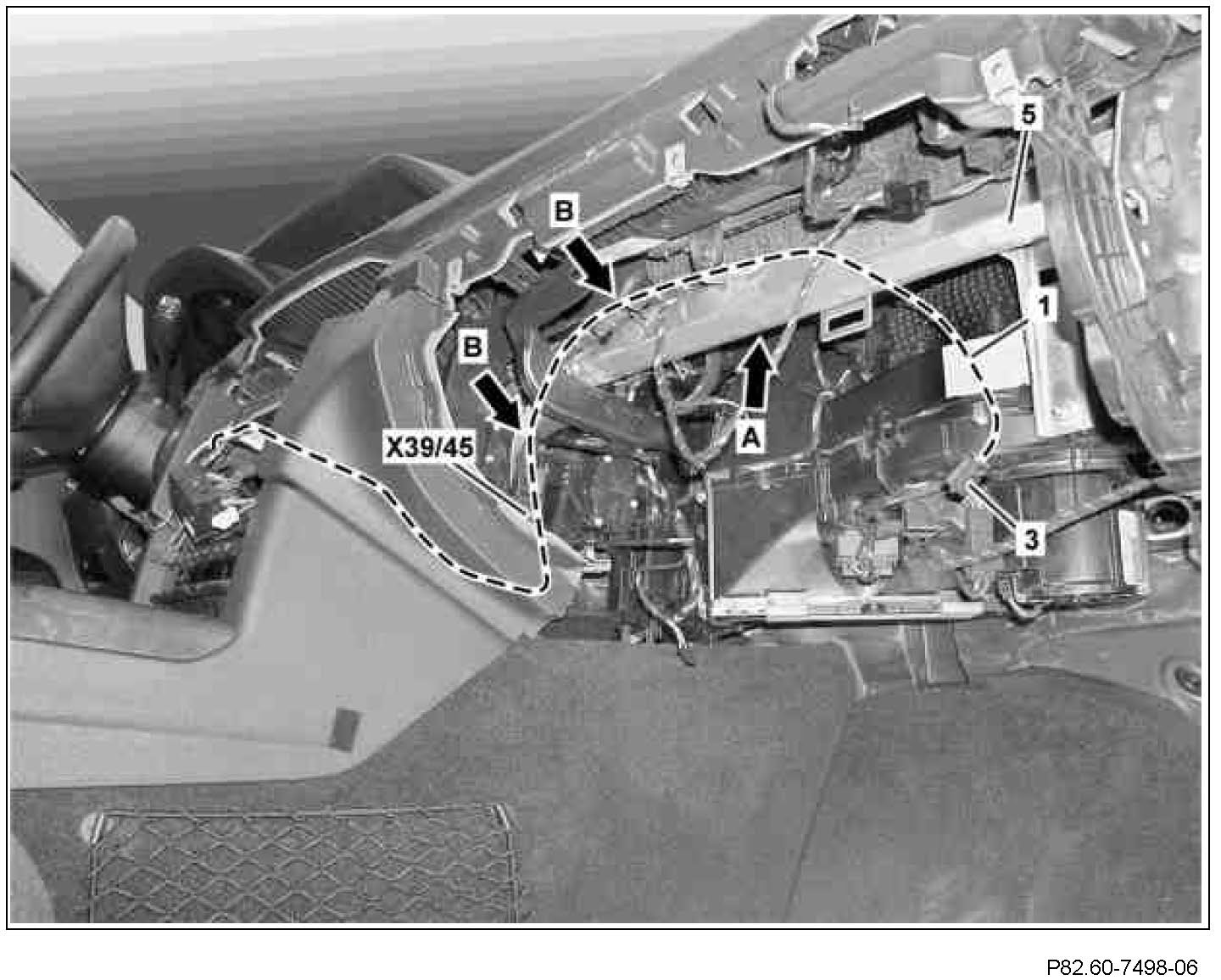

3 Route optical fiber (1) along broken line from installation location (arrow A) of media interface control unit into slot of audio equipment.

Route optical fiber (1) behind crossmember (5).
The coupling (3) must be routed from the installation location (arrow A) of the media interface control unit.

4 Wrap felt tape around wiring harness of AUX connection electrical connector (X39/45).
5 Fix wiring harness of AUX connection electrical connector (X39/45) and optical fiber (1) in place with cable tie at vehicle wiring harness (arrows B).

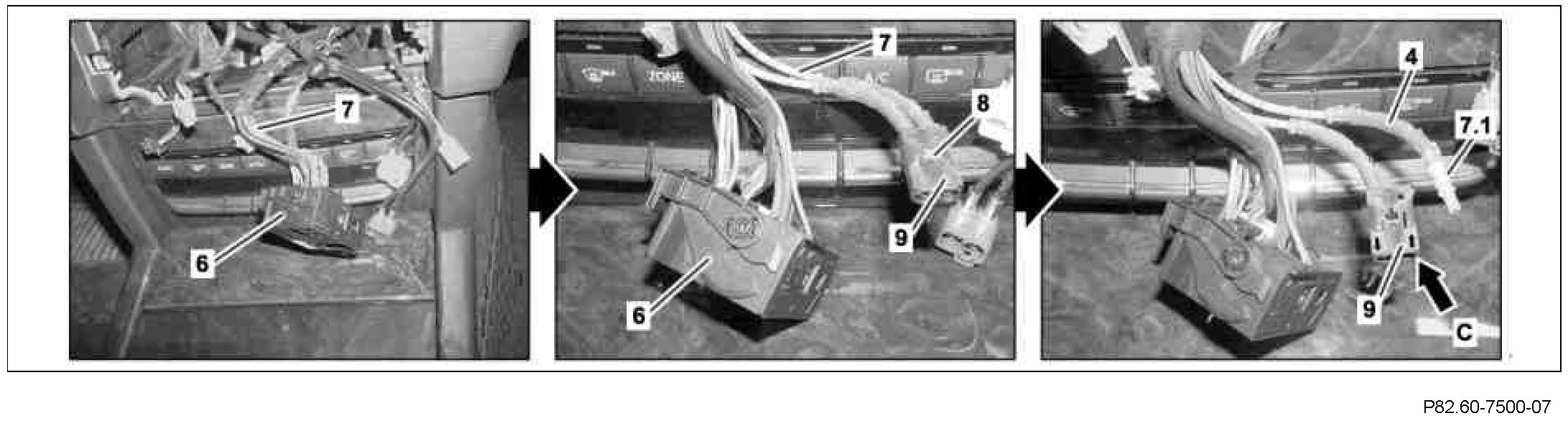

6 Remove coupling (9) of vehicle's own optical fiber (7) from black 34-pin coupling (6).
7 Remove blue fuse (8) from coupling (9) of vehicle's own optical fiber (7).
8 Remove optical fiber 3 (7.1) of vehicle's own optical fiber (7) from input contact cavity (arrow C) of coupling (9).

Observe arrows on coupling (9).

9 Remove protective sheath (4) from optical fiber 3 (7.1).

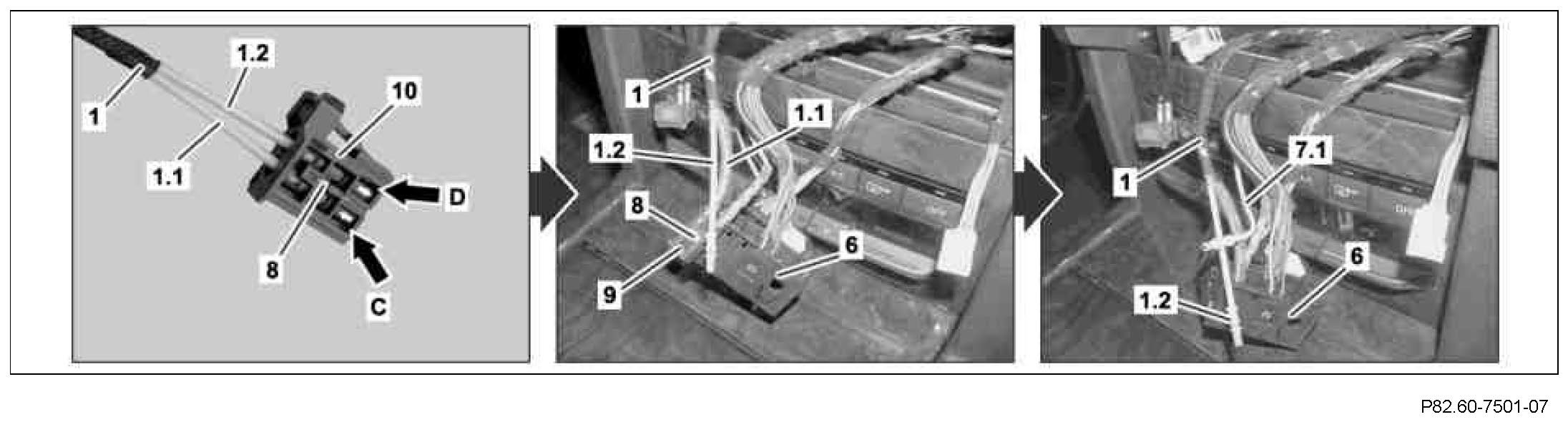

10 Remove blue fuse (8) from coupling (10).
11 Remove optical fiber 1 (1.1) from input contact cavity (arrow C) of coupling (10).

Observe arrows on coupling (10).

12 Install optical fiber 1 (1.1) in free contact cavity of coupling (9).
13 Install blue fuse (8) in coupling (9).
14 Attach protective sheath of optical fiber 3 (7.1) to optical fiber 1 (1.1).
15 Remove optical fiber 2 (1.2) from output contact cavity (arrow D) of coupling (10).
16 Install coupling (9) in outer slot at black 34-pin coupling (6).

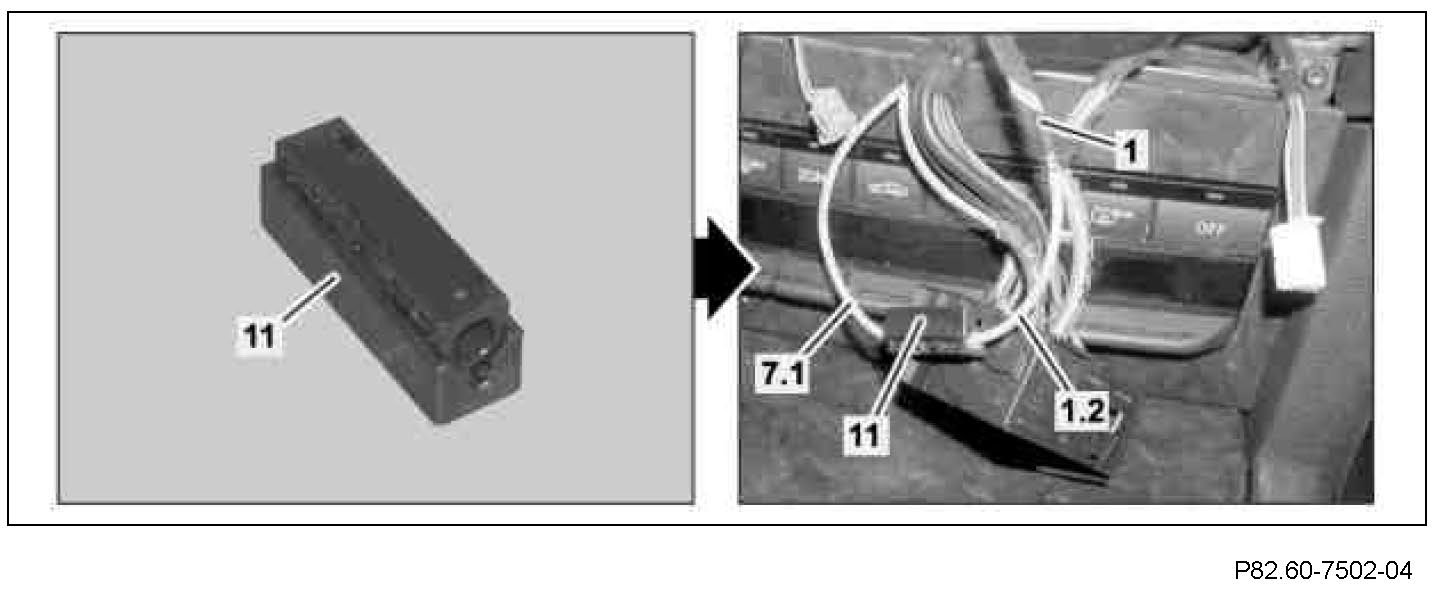

17 Connect optical fiber 3 (7.1) and optical fiber 2 (1.2) with connection piece (11).

The connection piece (11) is an adapter for reclosing the ring of the optical fiber.
Optical fiber 3 (7.1) and optical fiber 2 (1.2) must audibly engage.

18 Lock connection piece (11) by pressing it together.
