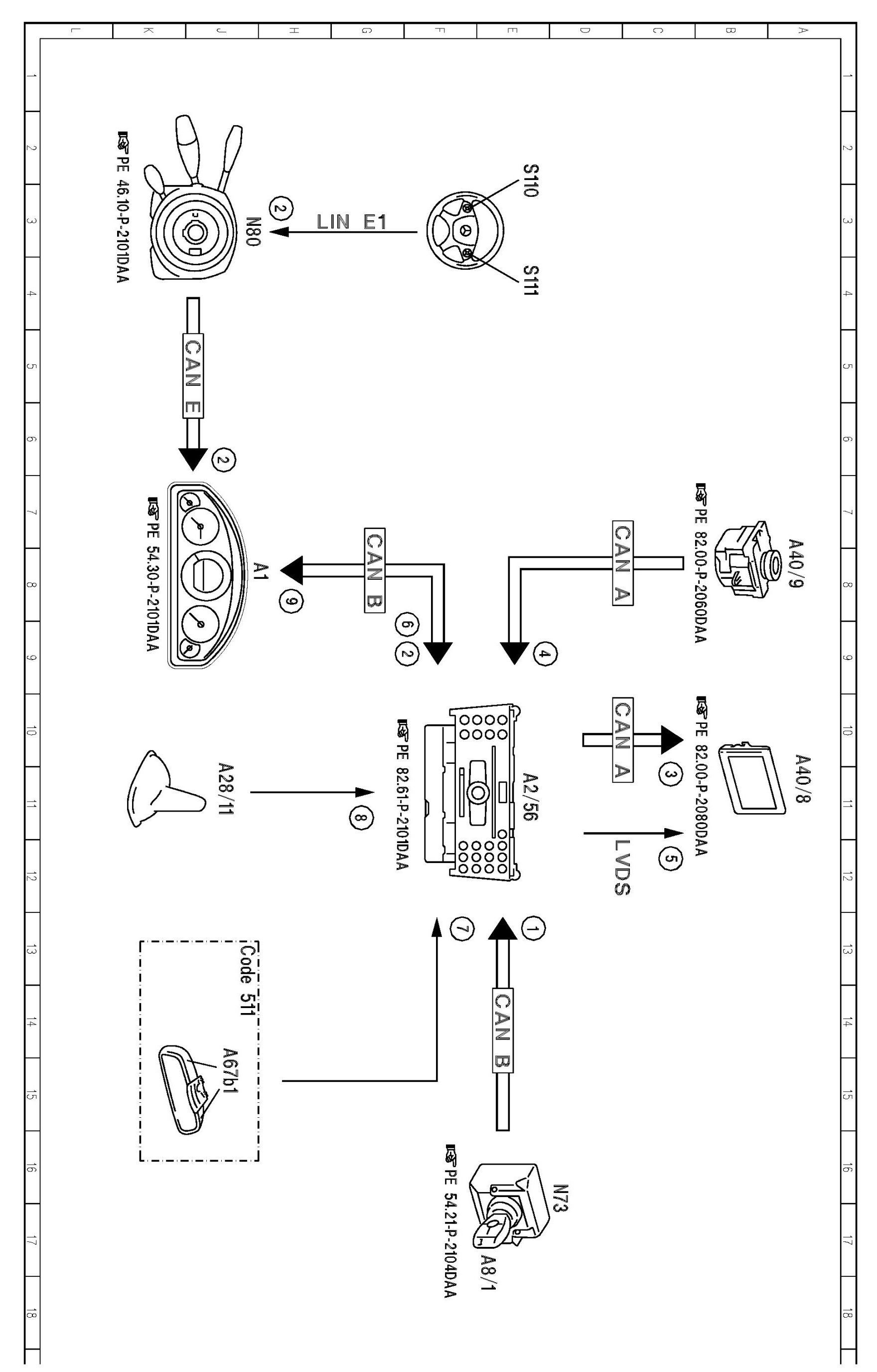

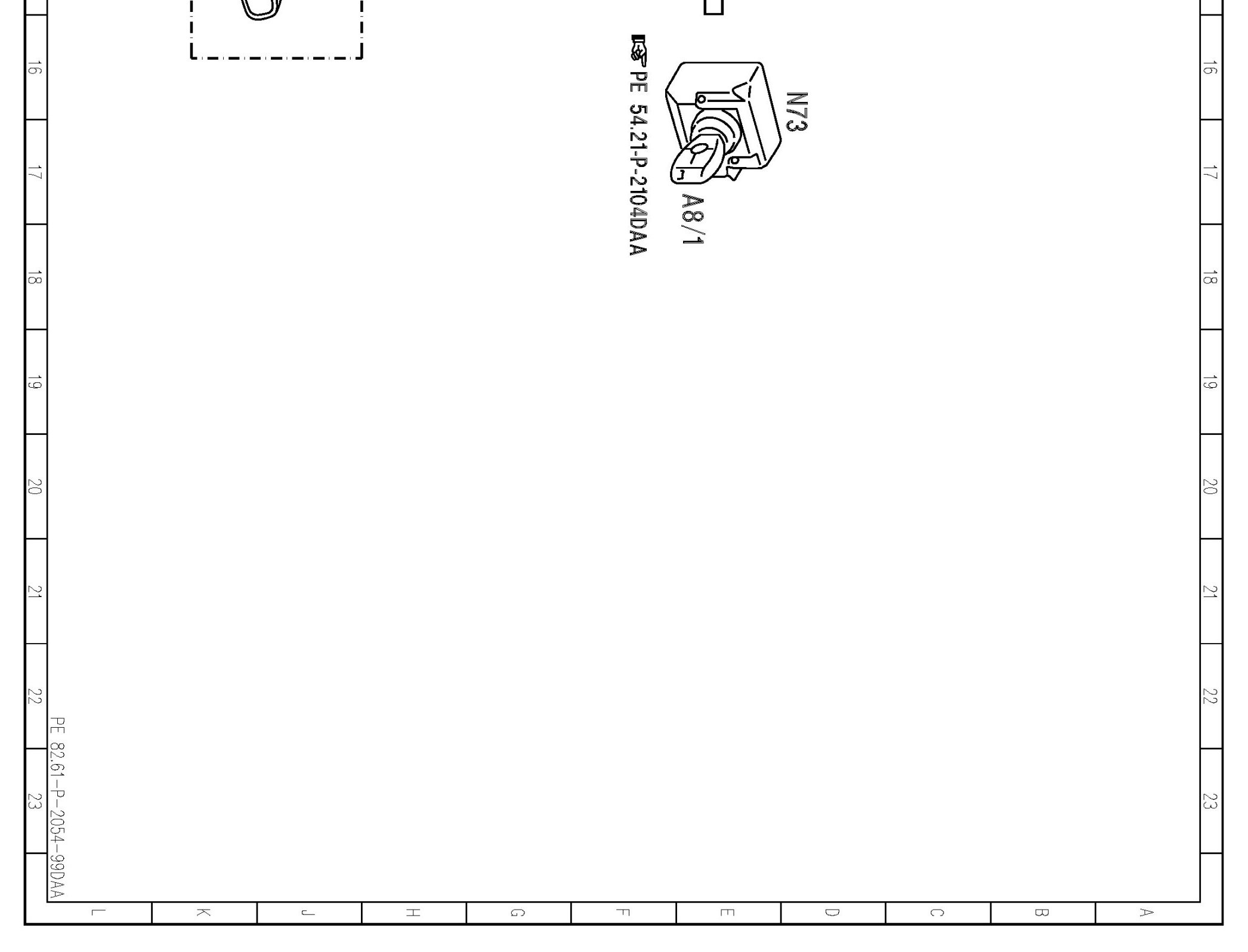

PE82.61-P-2054DAA Electrical Function Diagram For Navigation Mode (APS), Function

PE82.61-P-2054DAA Electrical Function Diagram For Navigation Mode (APS), Function
MODEL 212.0 /2
- with CODE (525) MB Audio 50 APS radio
MODEL 212.0 /2
- with CODE (511) Audio 50 APS with DVD changer






































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
