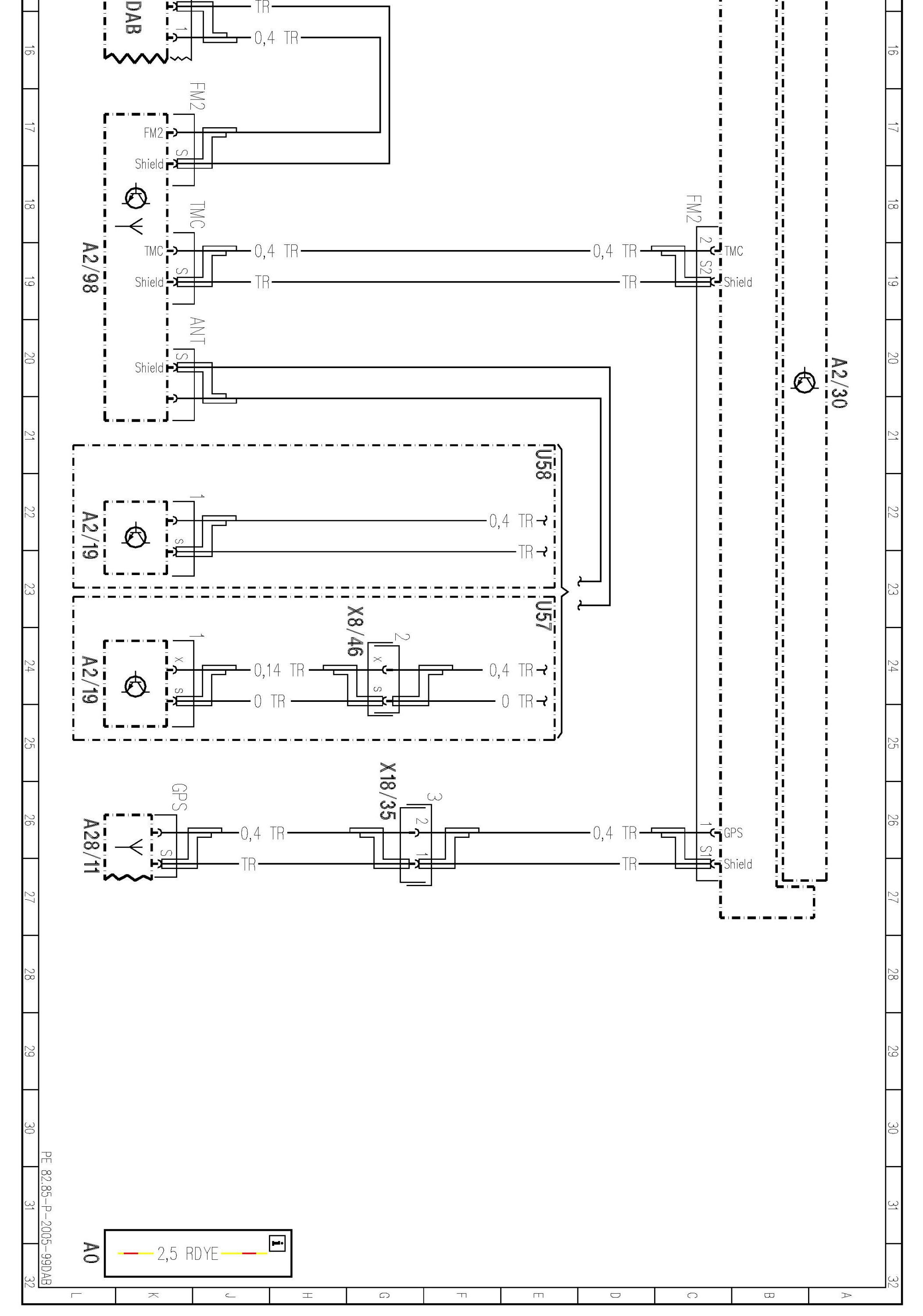

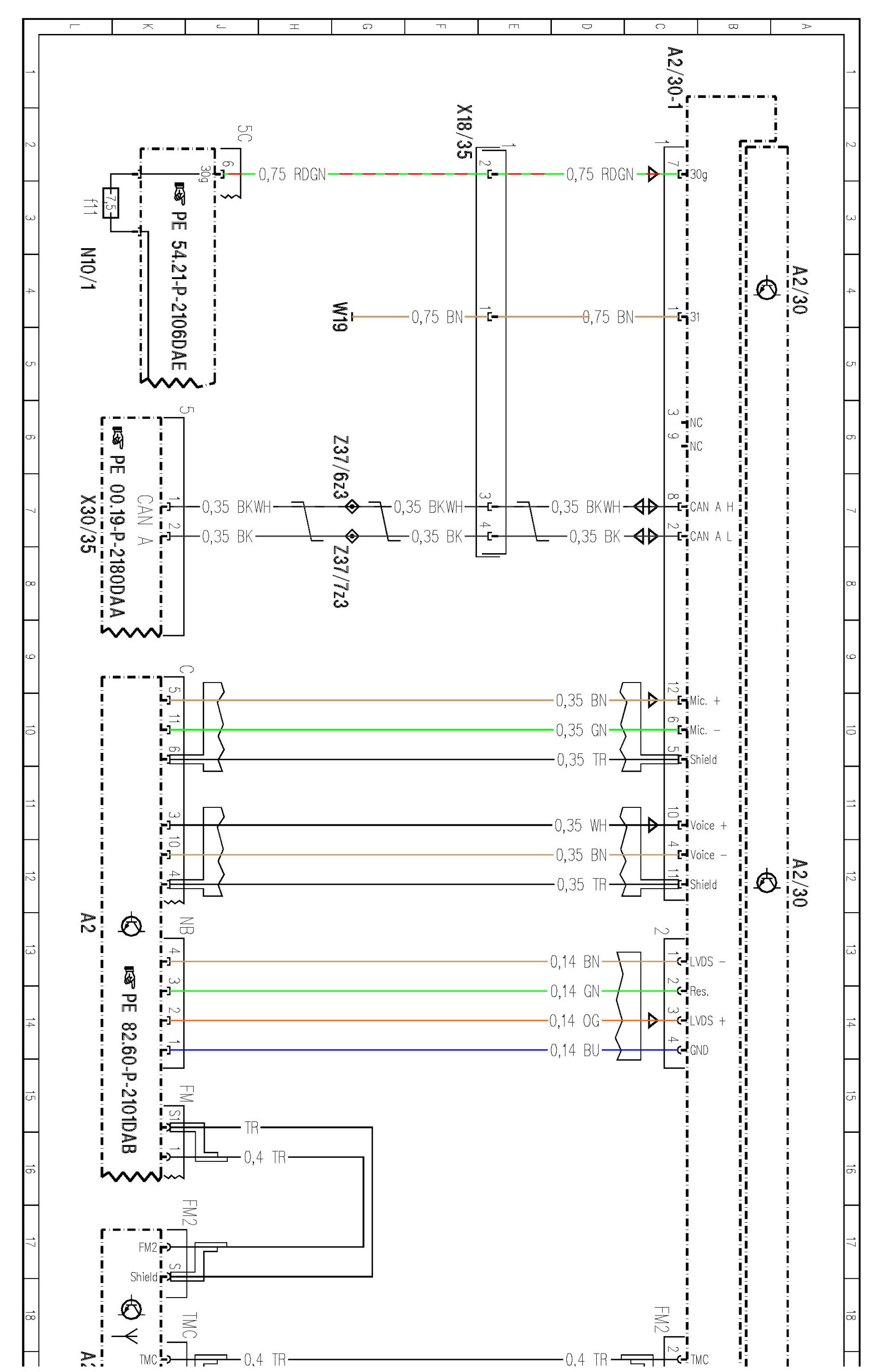

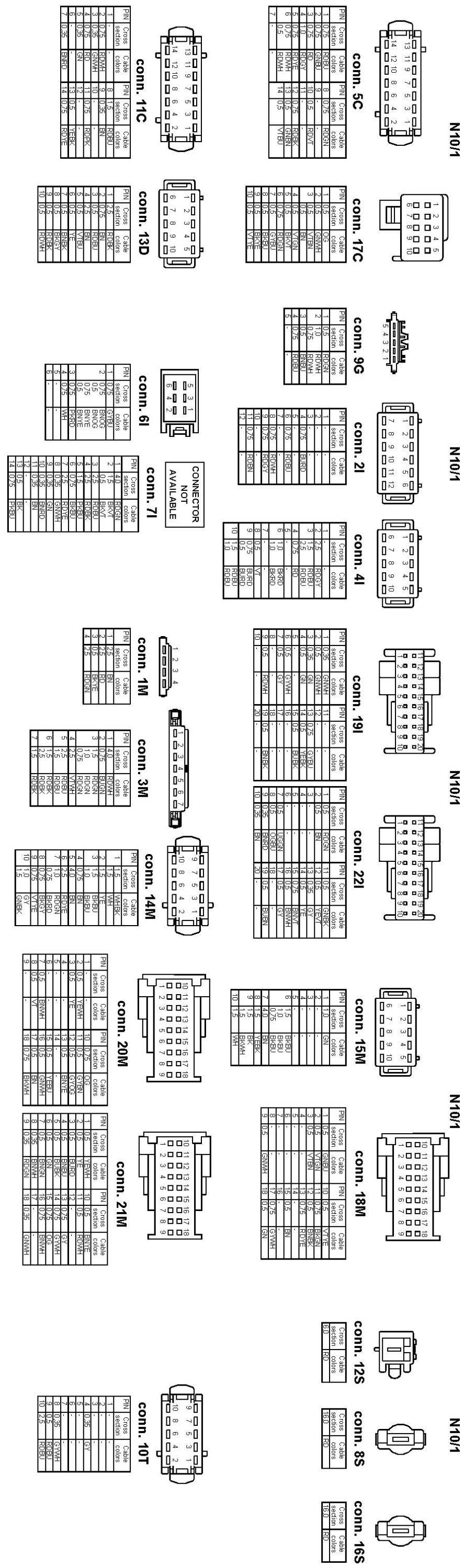

PE82.85-P-2005DAB Navigation System

PE82.85-P-2005DAB Navigation System
MODEL 212
- with CODE (508) Navigation box preinstallation
- with CODE (509) Navigation box
- Control unit A2/30-1






































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
