Removal and Replacement



AR82.85-P-7366EW Remove/Install TV Tuner
- with CODE (863) Digital/anlog TV tuner
- with CODE (498) Japan version

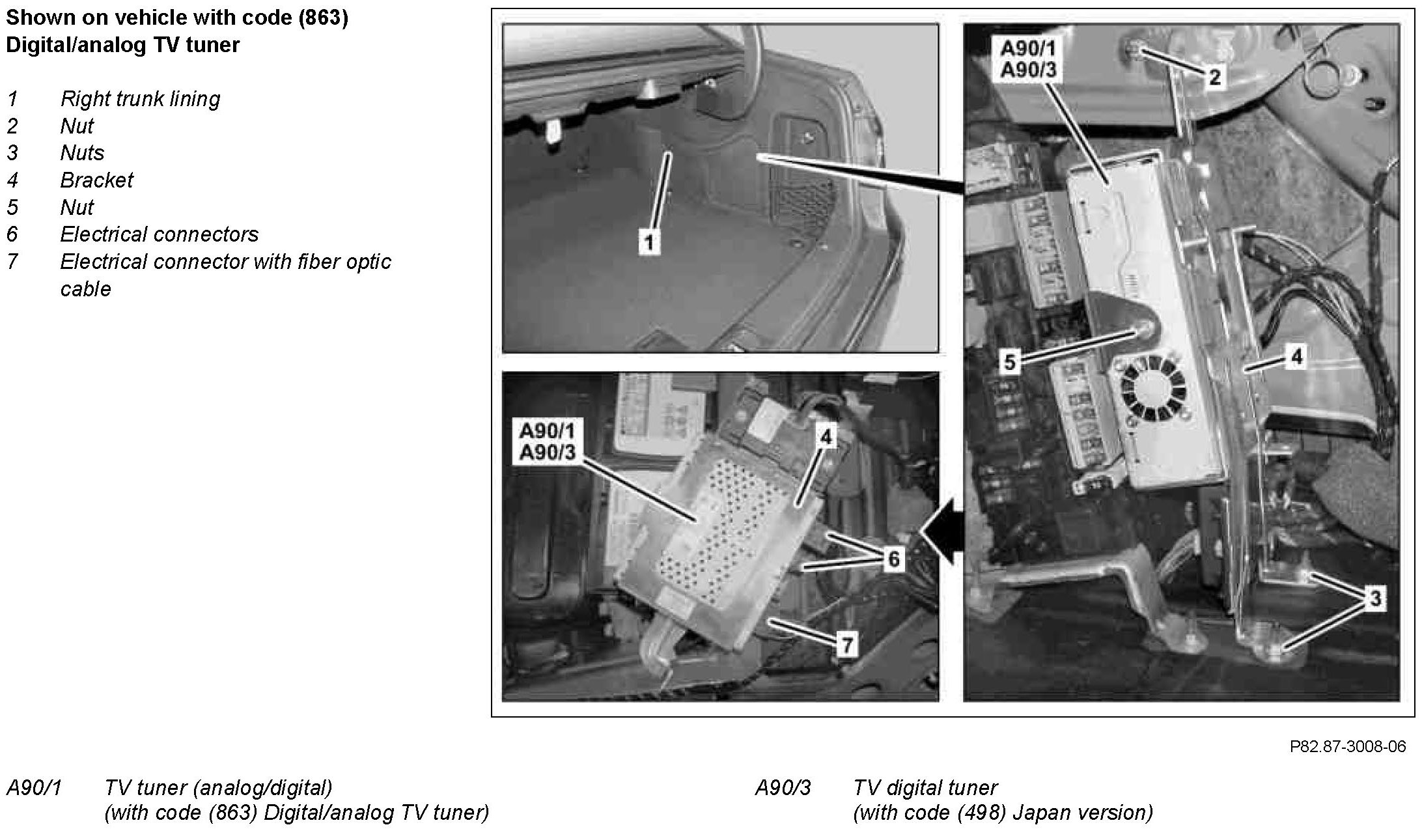

Component Identification:

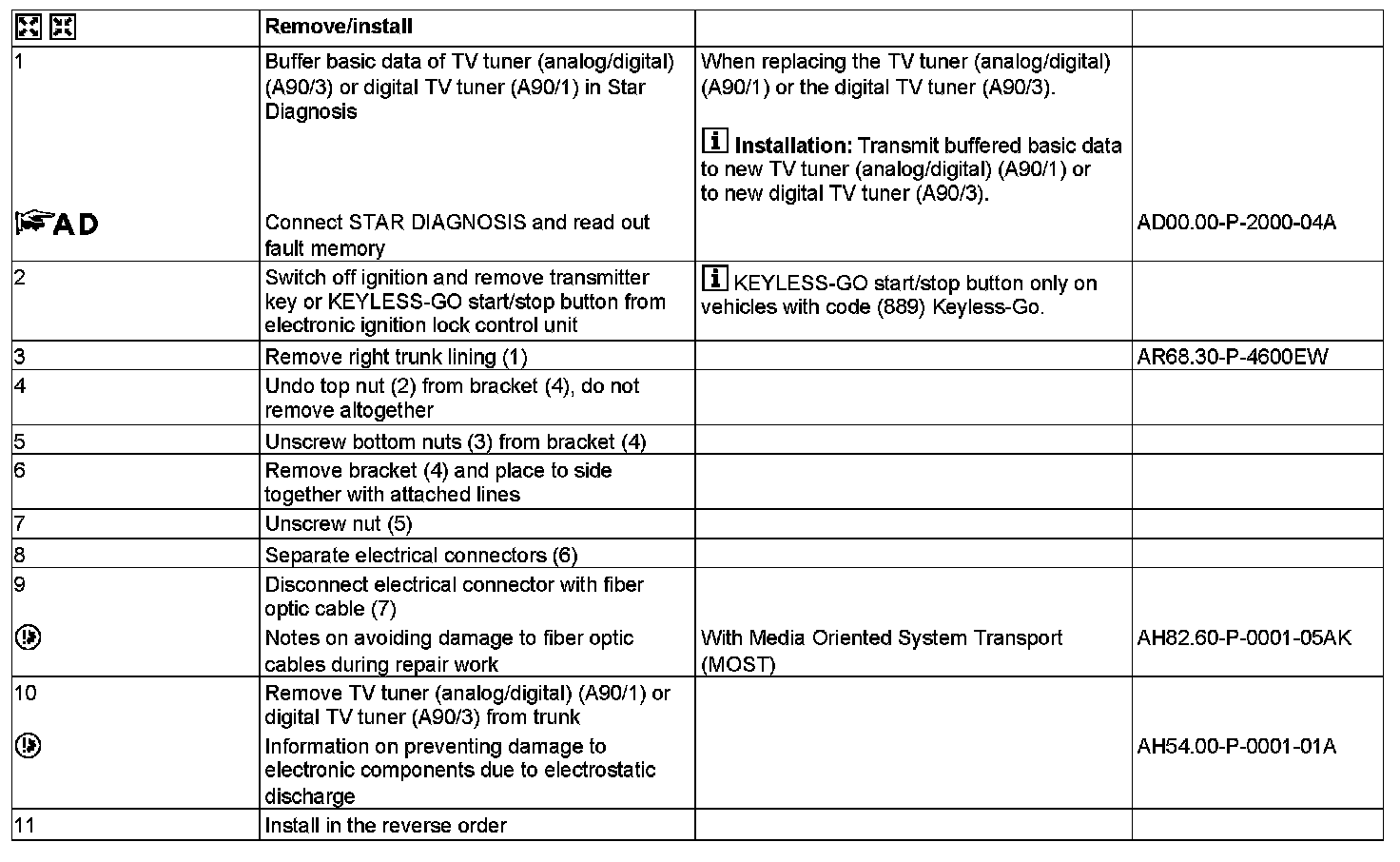

Steps 1 - 11:
