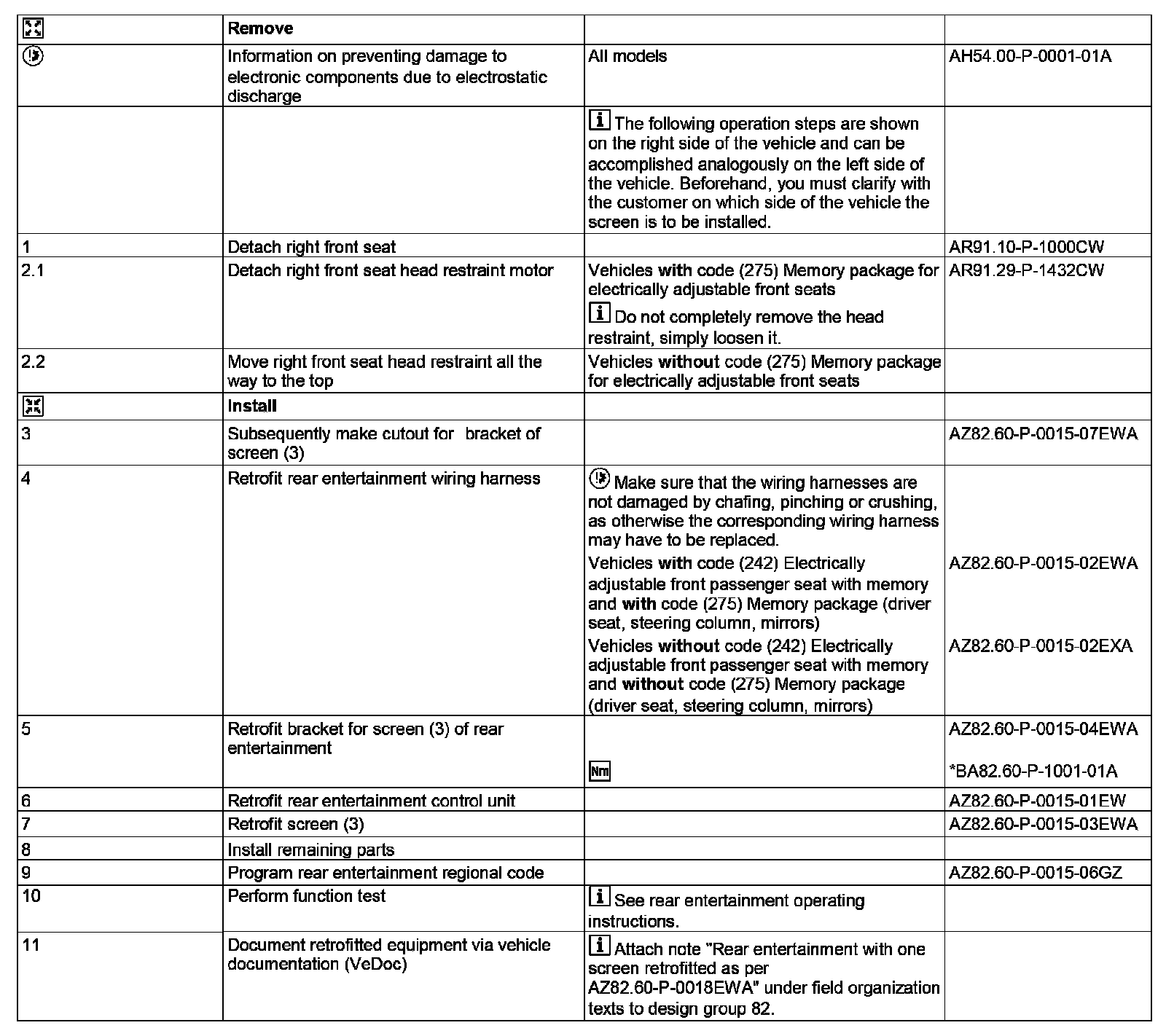

AZ82.60-P-0018EWA Retrofit Rear Entertainment With One Screen




AZ82.60-P-0018EWA Retrofit Rear Entertainment With One Screen
- MODEL 212.0## /2## 1#
- except CODE (432) Left and right dynamic multicontour seat
- except CODE (864) Rear entertainment system

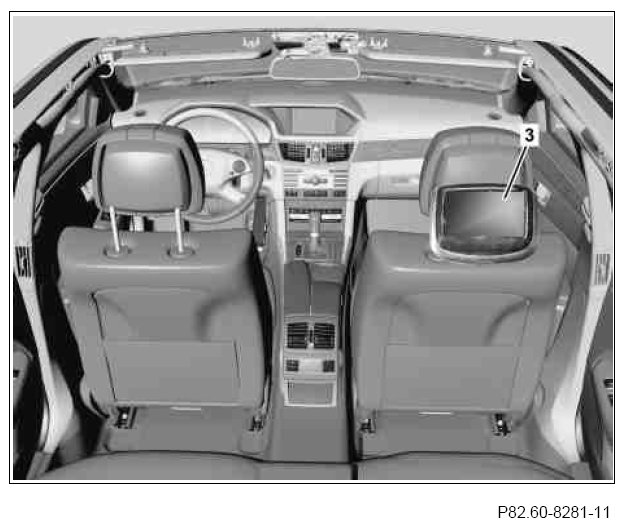

3 Screen
