AZ82.60-P-0015EW Retrofit Rear-Entertainment With Two Screens



AZ82.60-P-0015EW Retrofit Rear-Entertainment With Two Screens
- except CODE (432) Left and right dynamic multicontour seat
- except CODE (864) Rear entertainment system

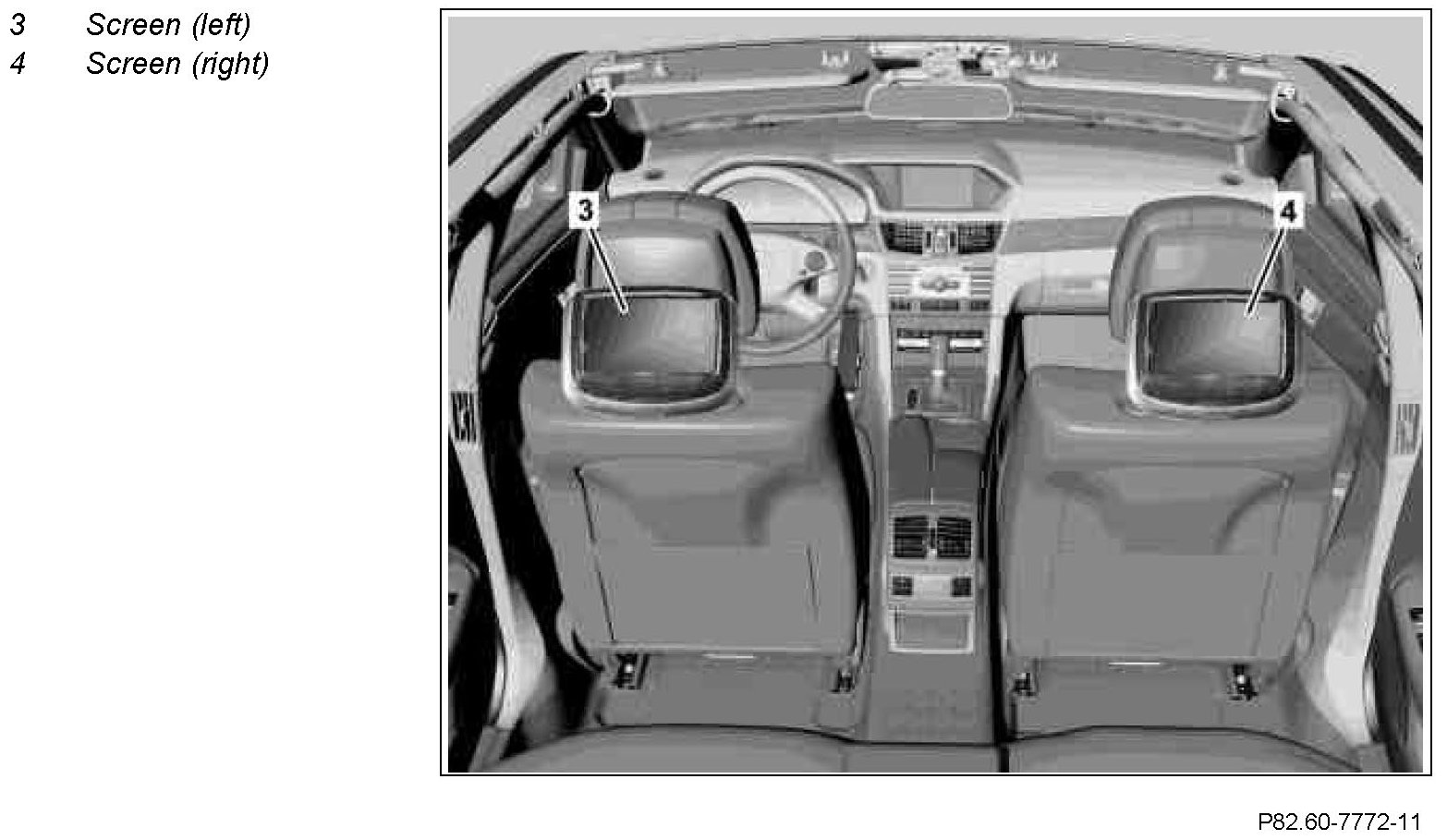

Component Identification:

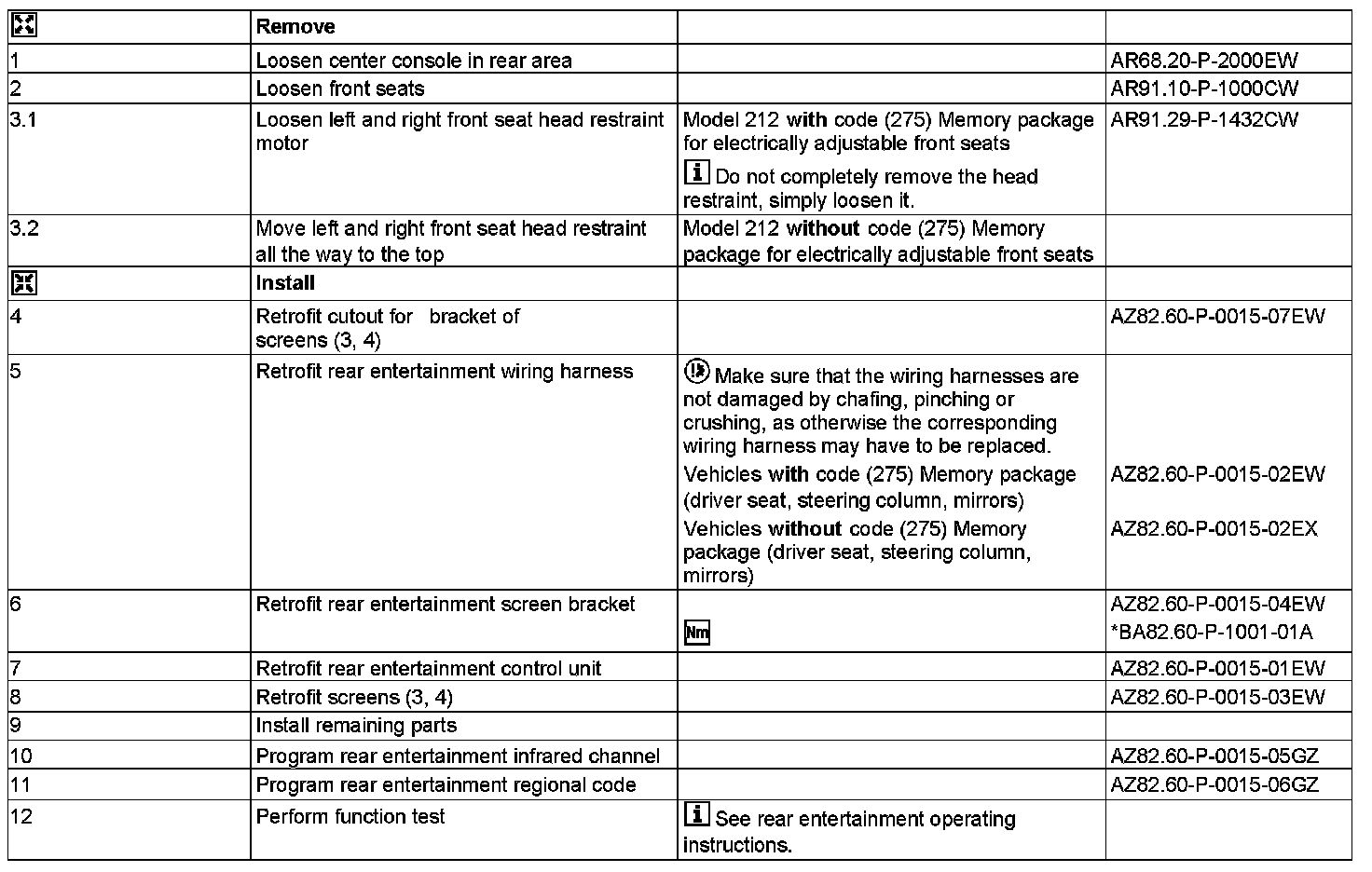

Steps 1 - 12:

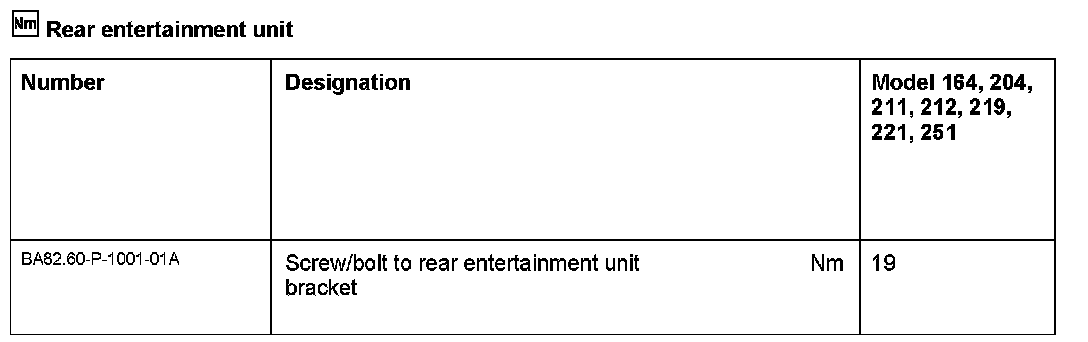

Rear Entertainment Unit:

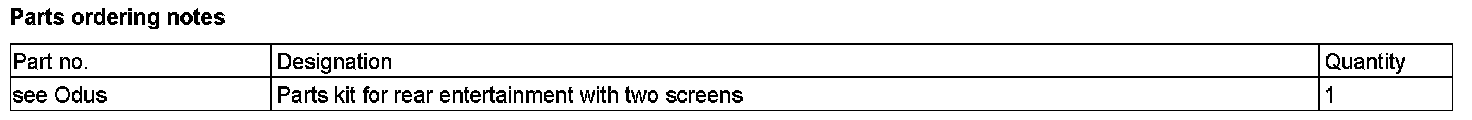

Parts Ordering Notes:
