AZ82.60-P-0015-07EW Make Cutout For Bracket

AZ82.60-P-0015-07EW Make Cutout For Bracket
- except CODE (864) Rear entertainment system


The following work procedure is shown on the left side of the vehicle. Installation on the right side of the vehicle is performed correspondingly.

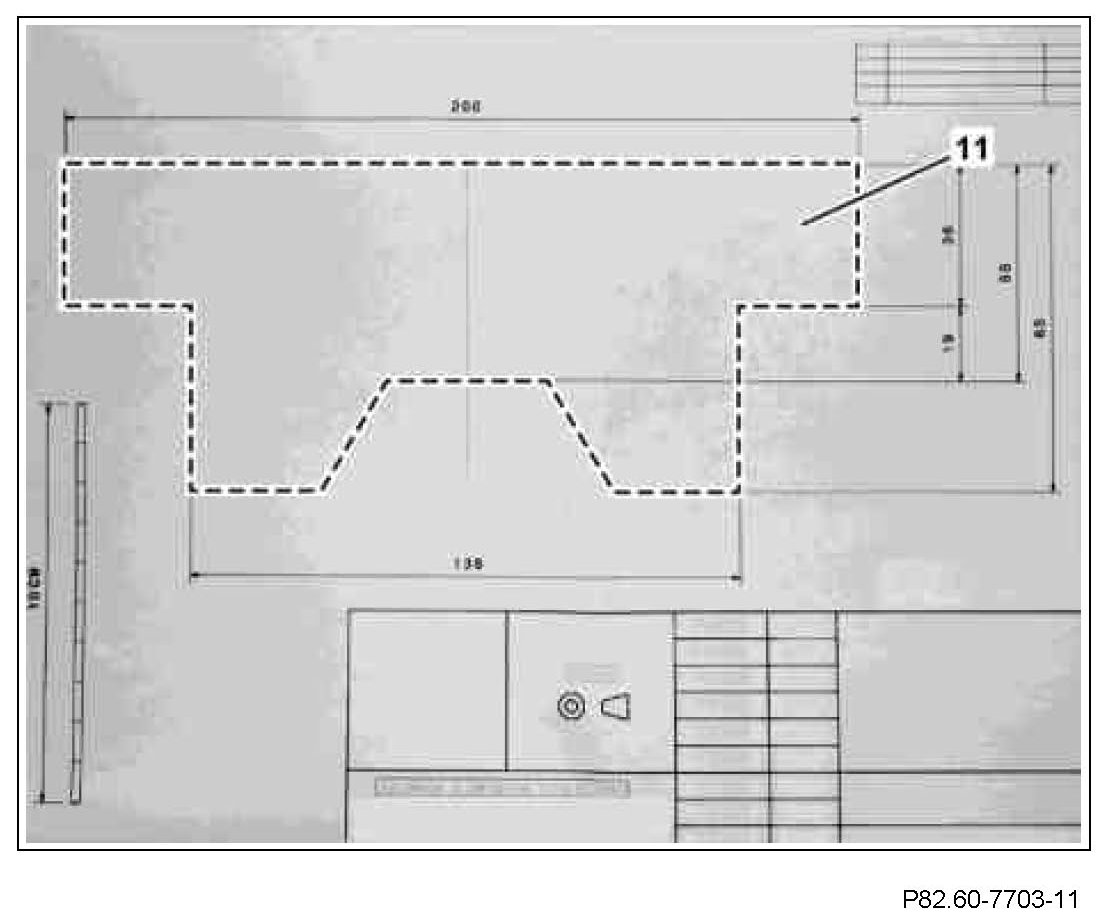

1 Cut out cutting template (11) along broken line.

The cutting template (11) is included in the installation kit.

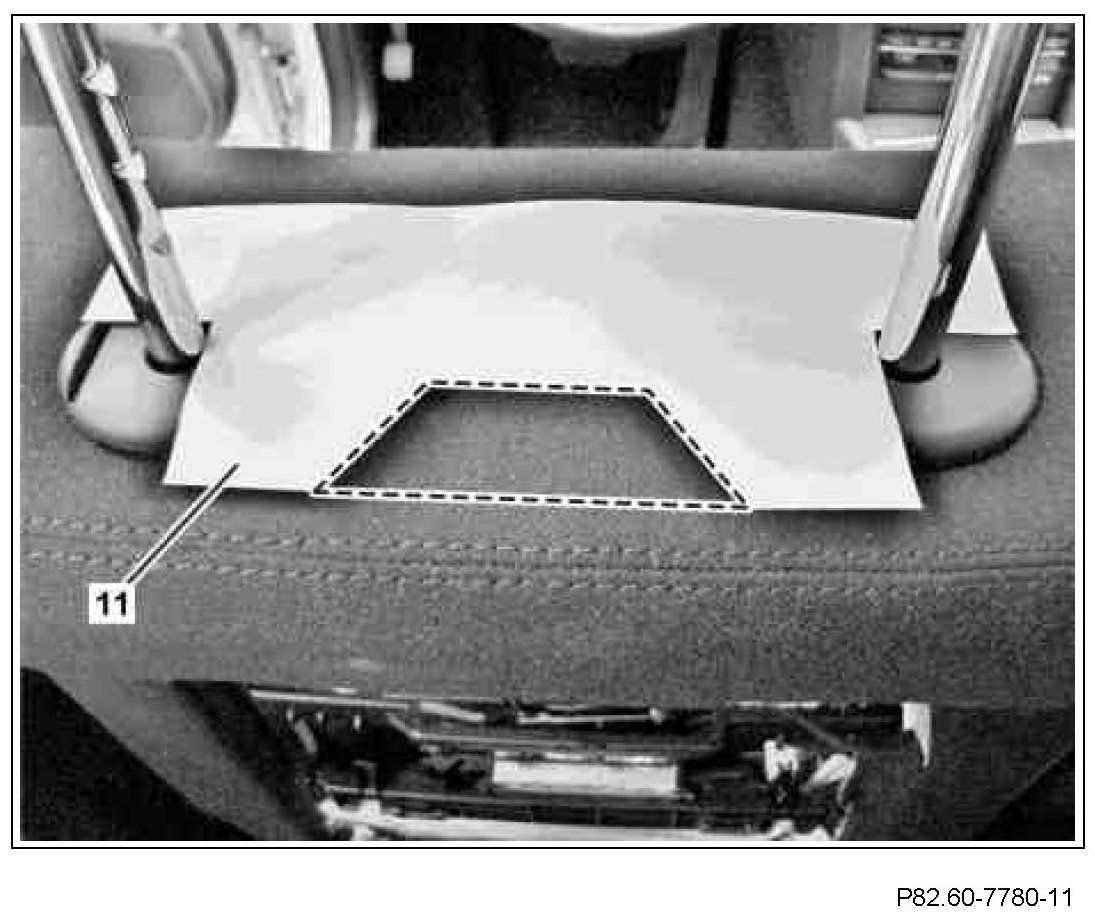

2 Apply cutting template (11) to head restraint and mark separating point (broken line).
3 Remove cutting template (11).

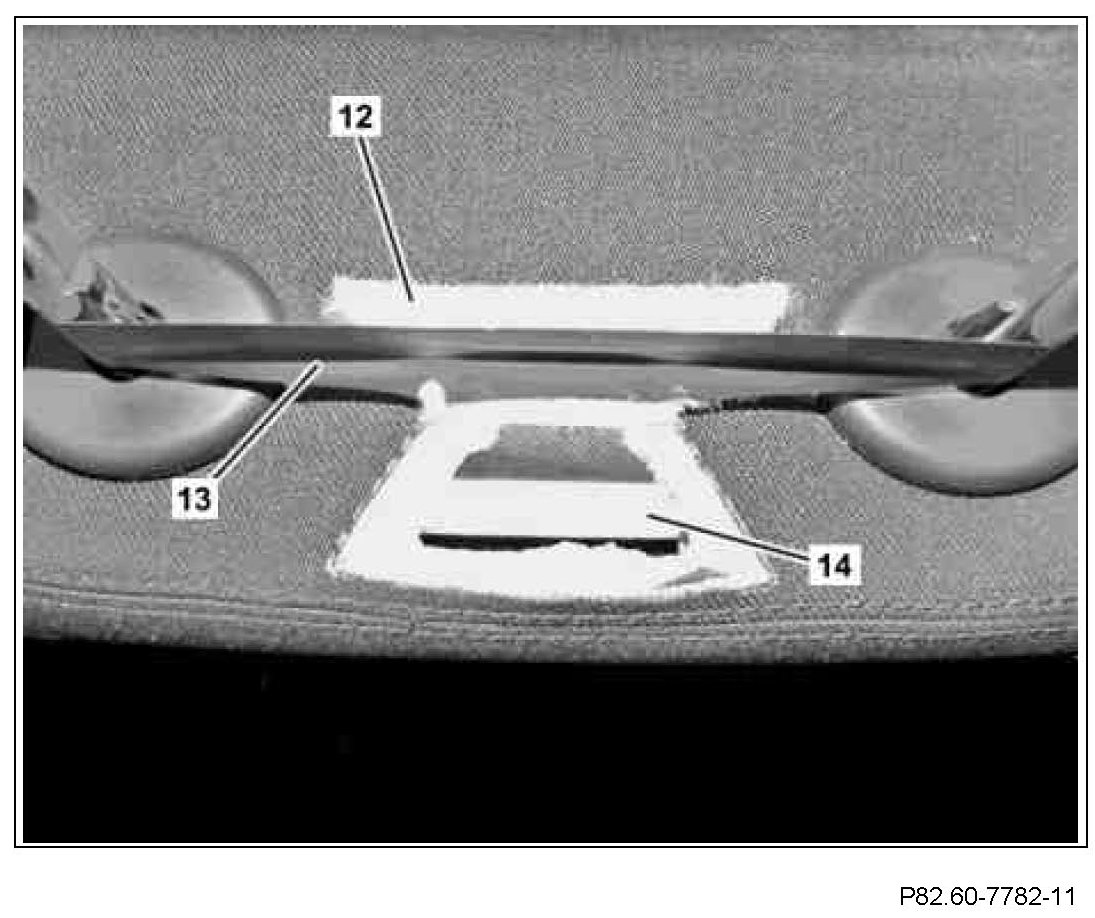

4 Cut seat cover using a knife and fix shackle (12) in place using adhesive tape (13).

Be very careful while cutting, otherwise the seat cover may be damaged.

5 Work out opening in seat cover and remove remaining foam.

Be very careful while cutting, otherwise the seat cover may be damaged.

6 Work out seat core until cross strut (14) of seat is accessible.

Be very careful while cutting, otherwise the seat cover may be damaged.

7 Fold shackle (12) into opening.
