AZ82.60-P-0015-05GZ Program Rear Entertainment Infrared Channel

AZ82.60-P-0015-05GZ Program Rear Entertainment Infrared Channel

Programming the infrared channel is to be performed on the passenger side.

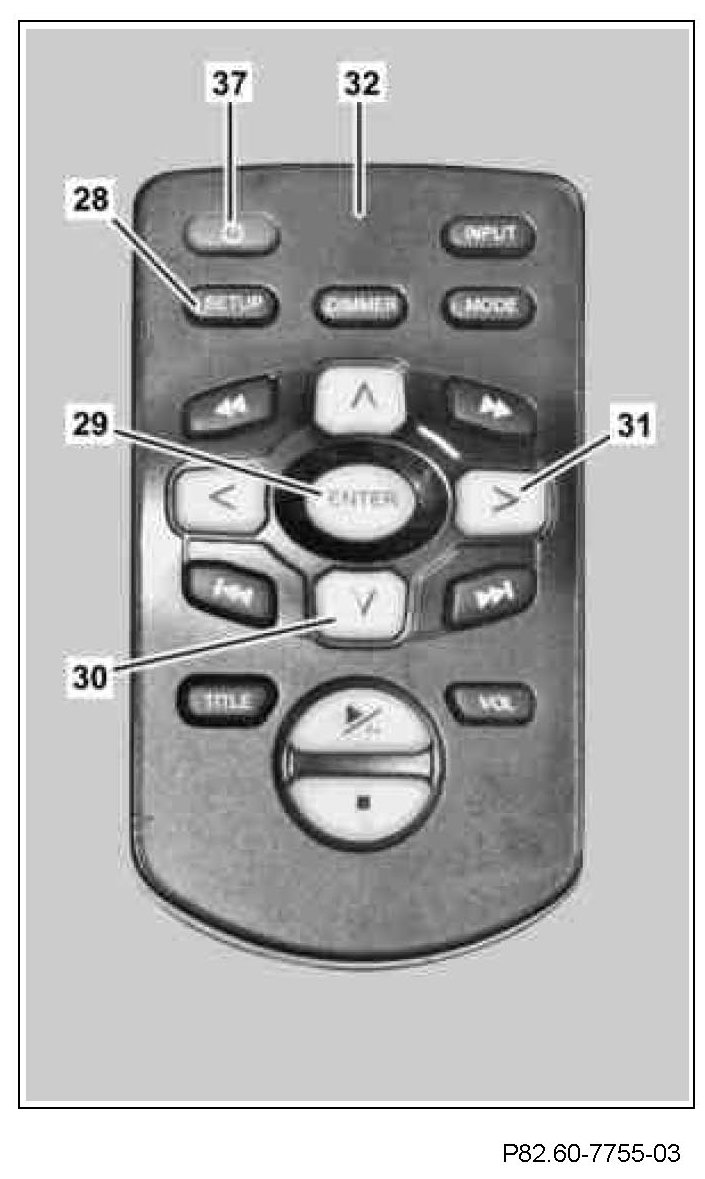

1 Switch on rear entertainment by pressing button (37).
2 Press button (28) on remote control (32).
3 Use button (30) to select "AUDIO" menu item.
4 Confirm "AUDIO" menu item with button (29).
5 Use button (30) to select "IR CHANNEL" menu item.
6 With button (31) select "CHB" menu item.
7 With button (28) close menu by pressing twice.

Do not switch off rear entertainment.
