AZ82.60-P-0015-04EWA Retrofit Rear Entertainment Screen Bracket

AZ82.60-P-0015-04EWA Retrofit Rear Entertainment Screen Bracket
- MODEL 212.0## /2##, 218.3## 1#











1 Insert silver bracket (15) into opening at backrest.
2 Insert black bracket (16) into opening at backrest.
3 Screw bracket (16) to bracket (15) using screw/bolt (17).

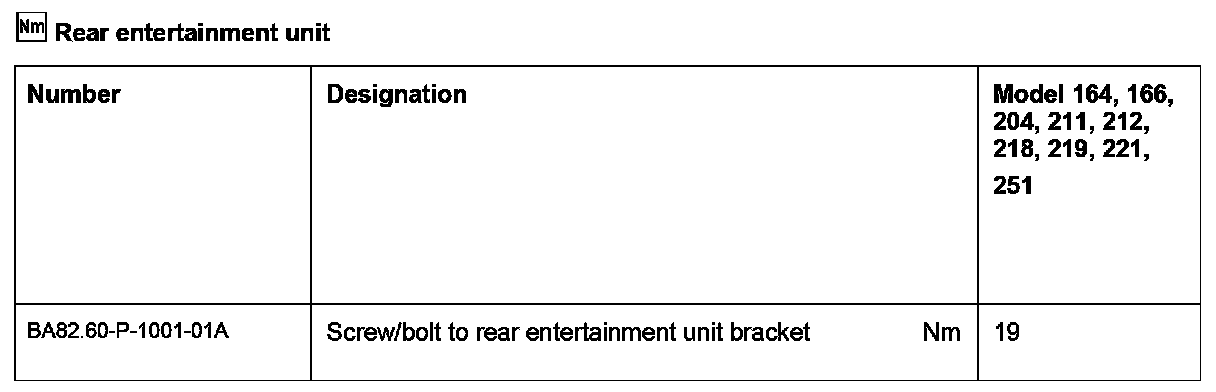

Bracket (16) and bracket (15) are interlocked with the cross strut of the seat by means of the threaded connection. Observe tightening torque.






4 Make a cutout for screw/bolt (18) at plastic reinforcement (20) using side cutting pliers.
5 Tighten bracket with screw/bolt (18) at crossmember of seat.
Use suitable washer and nut from delivery contents. Expose seat cover.
