AZ82.85-P-0005-05EW Retrofit Mercedes-Benz InCar Internet Connecting Cable

AZ82.85-P-0005-05EW Retrofit Mercedes-Benz InCar Internet Connecting Cable
- MODEL 212.0## /2## 1#






1 Open lid of glove box (22).

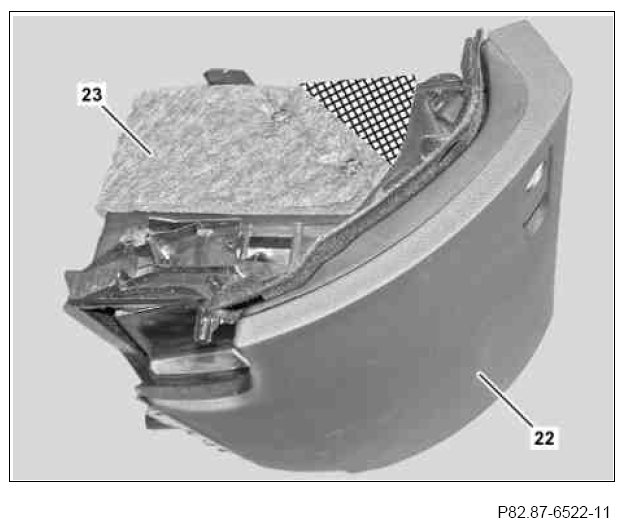

2 Pull insulating felt (23) in cross-hatched area to one side.






3.1 Drill hole (arrow A) with a diameter of 19 mm, as shown, on the glove box (22).
Cordless drill/driver
gotis://G_58.0_01.1
In vehicles without code (518) Media Interface.

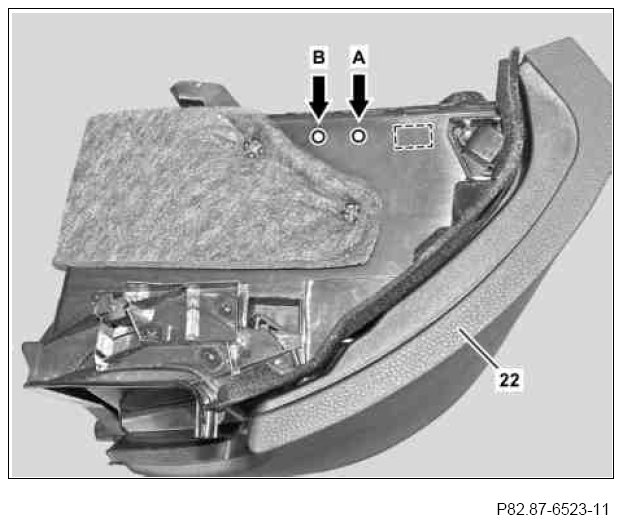

3.2 Drill holes (arrows A and B) with a diameter of 19 mm, as shown, on the glove box (22).
Cordless drill/driver
gotis://G_58.0_01.1
with In vehicles code (518) Media Interface. Note breakthrough for Media Interface electrical connector (broken line).






4.1 Place InCar Internet connecting cable (2) into glove box (22) and route outwards through the previously made hole.
On vehicles without code (518) Media interface.

4.2 Place InCar Internet connecting cable (2) and InCar Internet adapter line (4) into the glove box (22) and route outwards through the previously made hole.
In vehicles with code (518) Media Interface.

5.1 Insert grommet (2.2) into hole.
On vehicles without code (518) Media interface.

5.2 Insert grommets (2.2 and 4.2) into the hole.
In vehicles with code (518) Media Interface.






6.1 Route InCar Internet connecting cable (2) under the insulating felt (23) to the rear of the glove box (22).
On vehicles without code (518) Media interface.

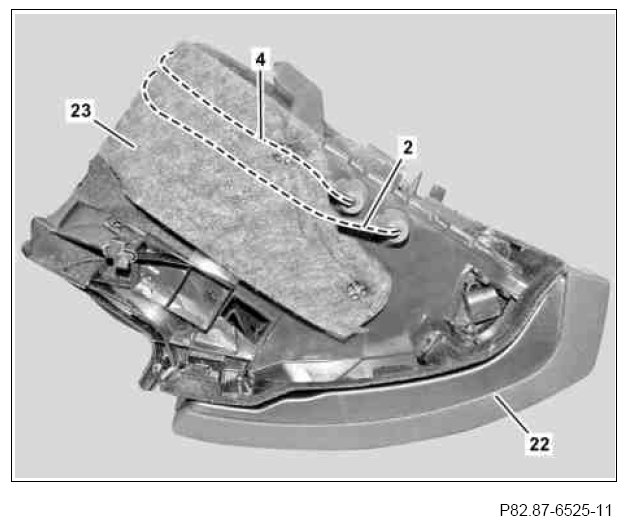

6.2 Route InCar Internet connecting cable (2) and InCar Internet adapter line (4) under the insulating felt (23) to the rear of the glove box (22).
vehicles with code (518) Media Interface.
