AZ82.85-P-0005-04EW Retrofit Mercedes-Benz InCar Internet Control Unit

AZ82.85-P-0005-04EW Retrofit Mercedes-Benz InCar Internet Control Unit
- MODEL 212.0## /2## 1#

Connection diagram with code (518) Media interface






1 InCar Internet control unit
2 Connecting cable
2.1 Blue, 1-pin coupling for connecting cable
3 InCar Internet adapter wiring harness
5 Black 32-pin coupling
14 Media Interface adapter line
15 Low voltage differential signal (LVDS) display wiring harness
15.2 LVDS display wiring harness coupling
16 LVDS head unit wiring harness
16.2 LVDS head unit wiring harness coupling
18 Media Interface adapter line electrical connector
A40/3 COMAND control unit
A40/8 Audio/COMAND display
X18/70 Media interface electrical connector

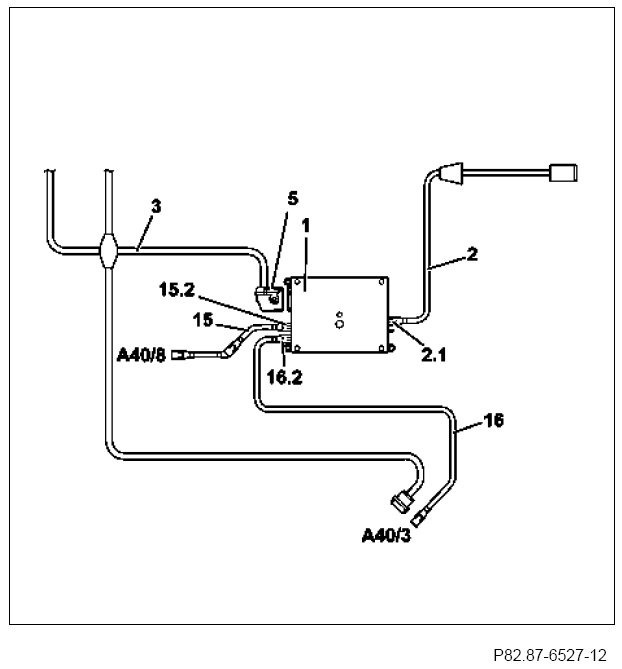

Connection diagram without code (518) Media Interface






1 InCar Internet control unit
2 Connecting cable
2.1 Blue, 1-pin coupling for connecting cable
3 InCar Internet adapter wiring harness
5 Black 32-pin coupling
15 Low voltage differential signal (LVDS) display wiring harness
15.2 LVDS display wiring harness coupling
16 LVDS head unit wiring harness
16.2 LVDS head unit wiring harness coupling
A40/3 COMAND control unit
A40/8 Audio/COMAND display

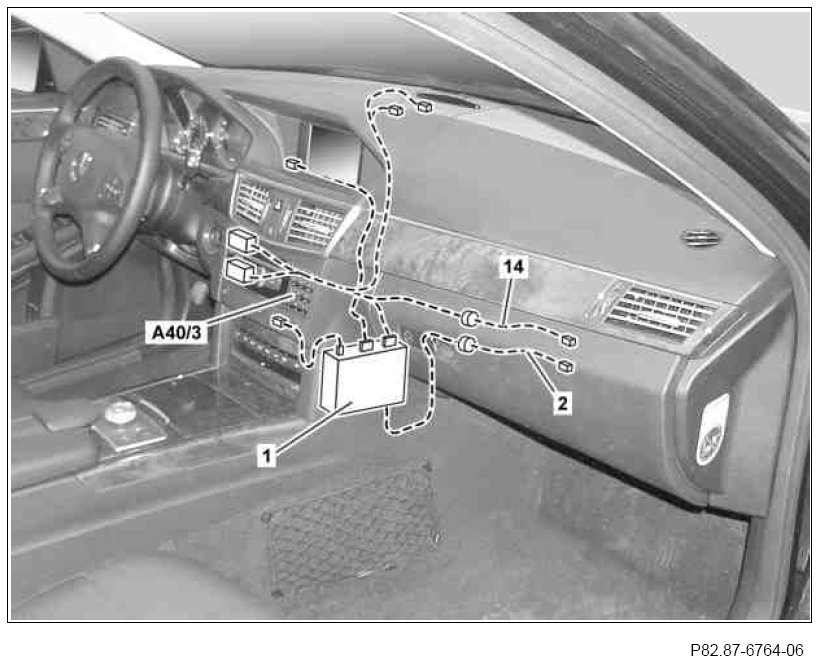

Routing diagram with code (518) Media interface






1 InCar Internet control unit
2 Connecting cable
14 InCar Internet adapter line
A40/3 COMAND control unit

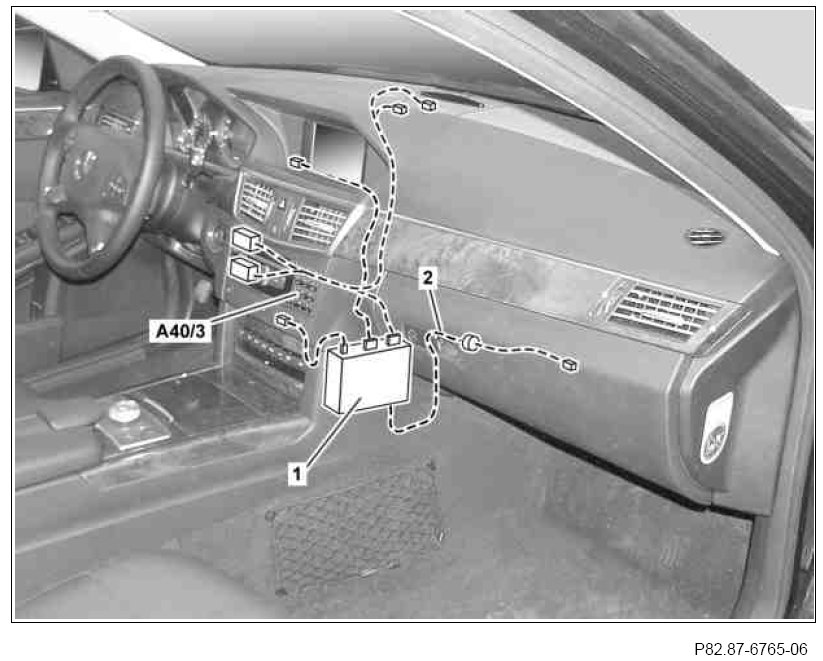

Routing diagram without code (518) Media Interface






1 InCar Internet control unit
2 Connecting cable
A40/3 COMAND control unit






1 Connect black, 32-pin coupling (5) of InCar Internet adapter wiring harness (3), coupling for LVDS display wiring harness (15.2) of LVDS display wiring harness (15) and coupling for LVDS head unit wiring harness (16.2) of LVDS head unit wiring harness (16), as shown, to InCar Internet control unit (1).

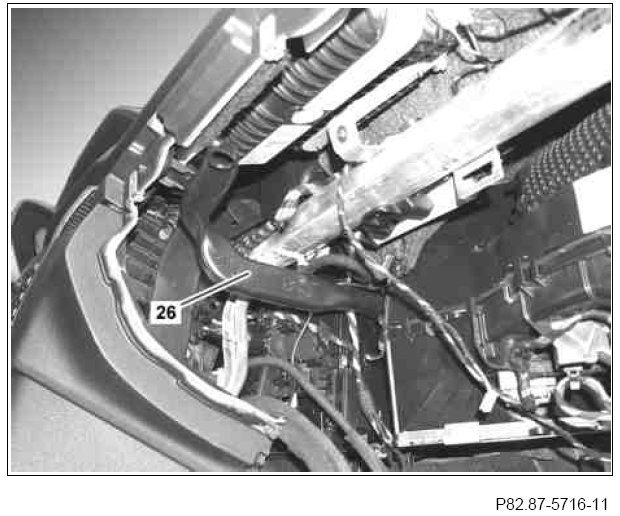

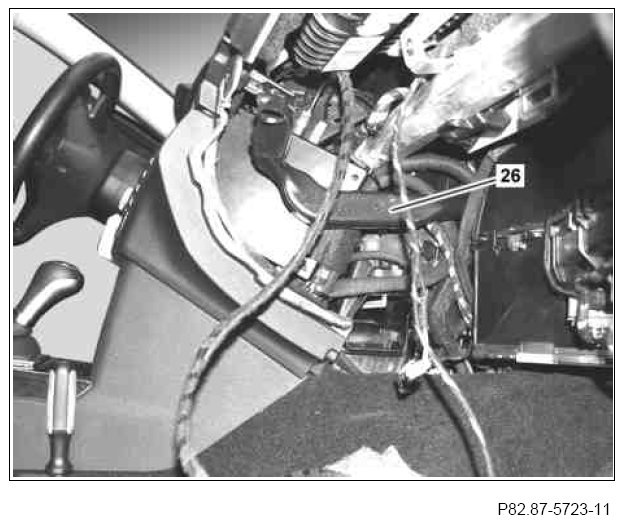

2 Remove air duct (26)

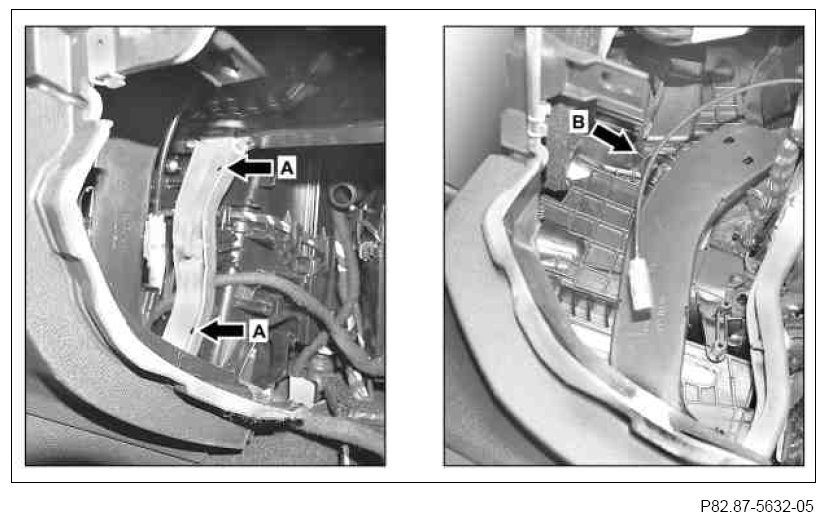

3 Route cable ties through holes (arrows A) and holder (arrow B).
The cable ties are used to fasten the InCar Internet control unit.

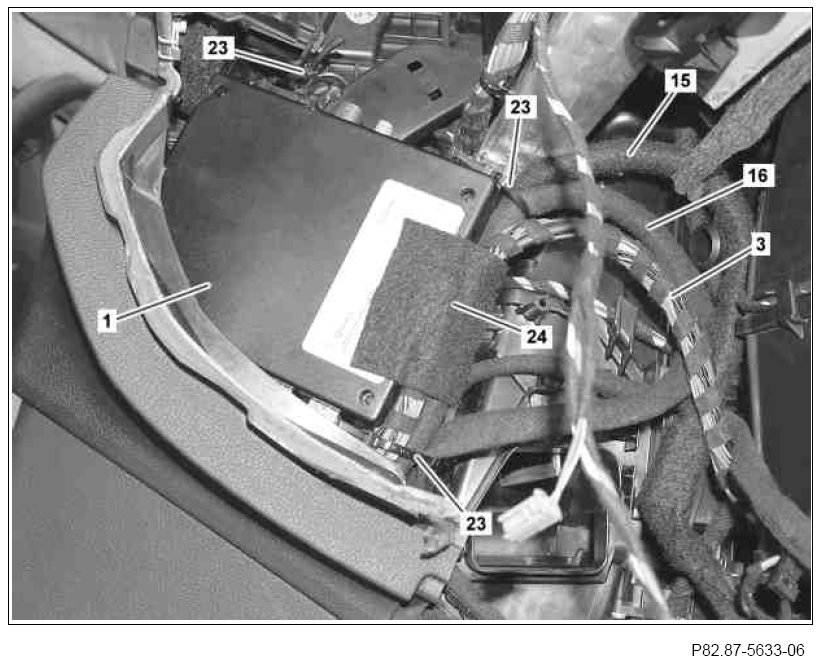

4 Route InCar Internet adapter wiring harness (3), LVDS display wiring harness (15) and LVDS head unit wiring harness (16) to the InCar Internet control unit (1) and fasten in place using felt tape (24) as shown.
5 Install InCar Internet control unit (1), as shown, and fasten in place using previously positioned cable ties (23).
Route cable ties through attachment points on InCar Internet control unit (1) and tighten.
The InCar Internet control unit (1) must be fixed so that any noise development is prevented.

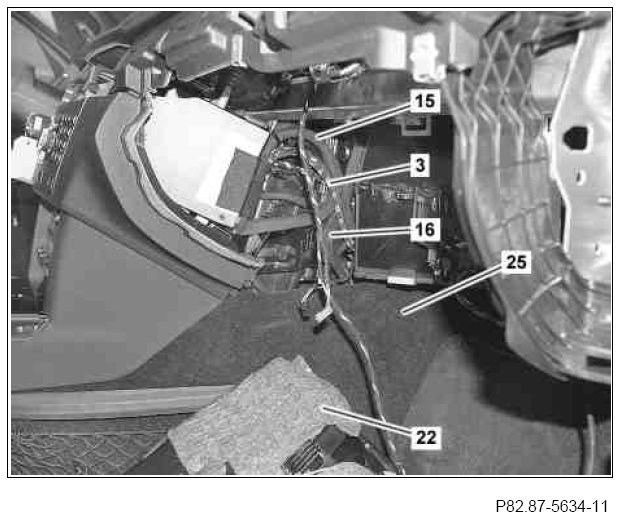

6 Route excess length of InCar Internet adapter wiring harness (3), of LVDS display wiring harness (15) and LVDS head unit wiring harness (16) behind the floor covering on the passengerside (25) in loops.
7 Place glove box (22) into footwell on passenger-side.

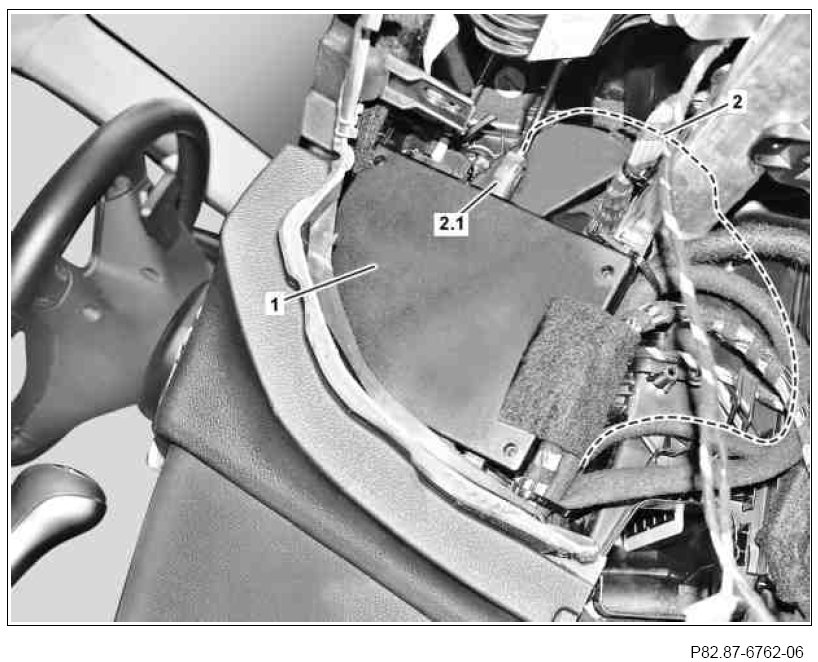

8 Connect blue 1-pin connecting cable coupling (2.1) of connecting cable (2) to InCar Internet control unit (1).

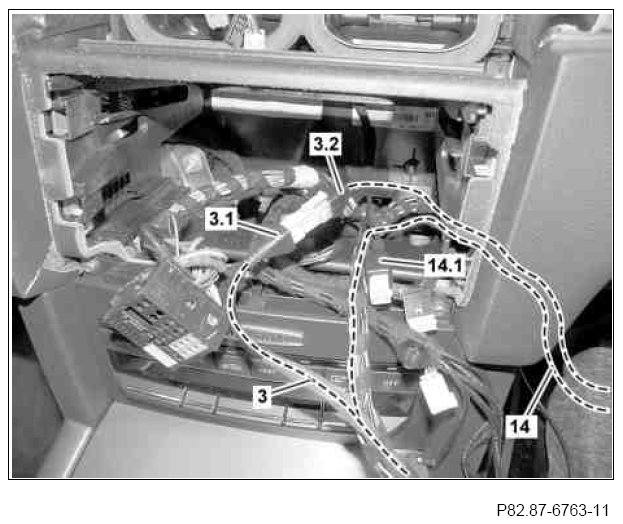

9 Detach white 4-pin coupling (3.1) and white 4-pin connector (3.2) of InCar Internet adapter wiring harness (3).
In vehicles with code (518) Media Interface.

10 Connect white 4-pin coupling (3.1) with white 4-pin connector (14.1) of media interface adapter line (14).
In vehicles with code (518) Media Interface.

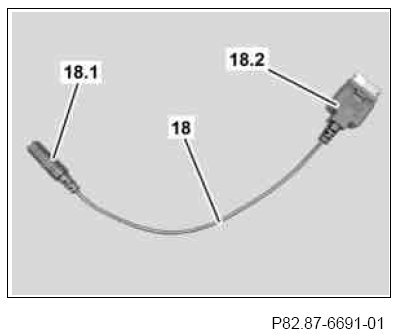

11 Connect black 1-pin coupling (18.1) of media interface electrical connector adapter line (18) to adapter wiring harness for intelligent head unit.
In vehicles with code (518) Media Interface.

12 Connect black 24-pin plug (18.2) with media interface electrical connector.
In vehicles with code (518) Media Interface.






13 Install air duct (26).
