AZ82.80-P-0003-01EW Retrofit Tablet PC Mount Control Unit

AZ82.80-P-0003-01EW Retrofit Tablet PC Mount Control Unit
- MODEL 212.0## /2##, 218.3## 1#
- with CODE (275) Electrically adjustable front seats memory package

The following work procedure is shown on the right side of the vehicle. Installation on the left side of the vehicle is performed correspondingly.

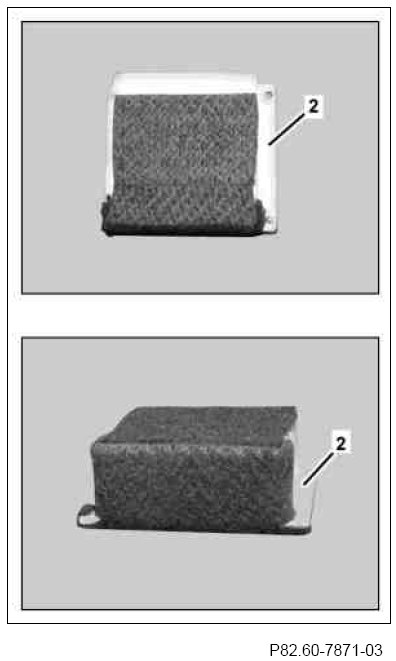

1 Bond felt tape onto Tablet PC mount control unit (2).
Do not bond the bottom of the Tablet PC mount control unit (2).

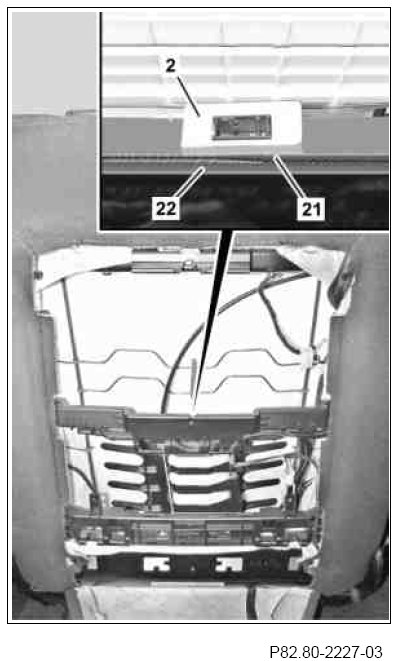

2 Fasten Tablet PC mount control unit (2) to upper cross strut (22) using velcro strip (21).
The bonding areas must be free of dust and grease. This prevents adhesion problems.
