AZ82.60-P-0015-02EW Retrofit Rear Entertainment Wiring Harness

AZ82.60-P-0015-02EW Retrofit Rear Entertainment Wiring Harness
- except CODE (864) Rear entertainment system
- with CODE (275) Memory package (driver seat, steering column, mirrors)

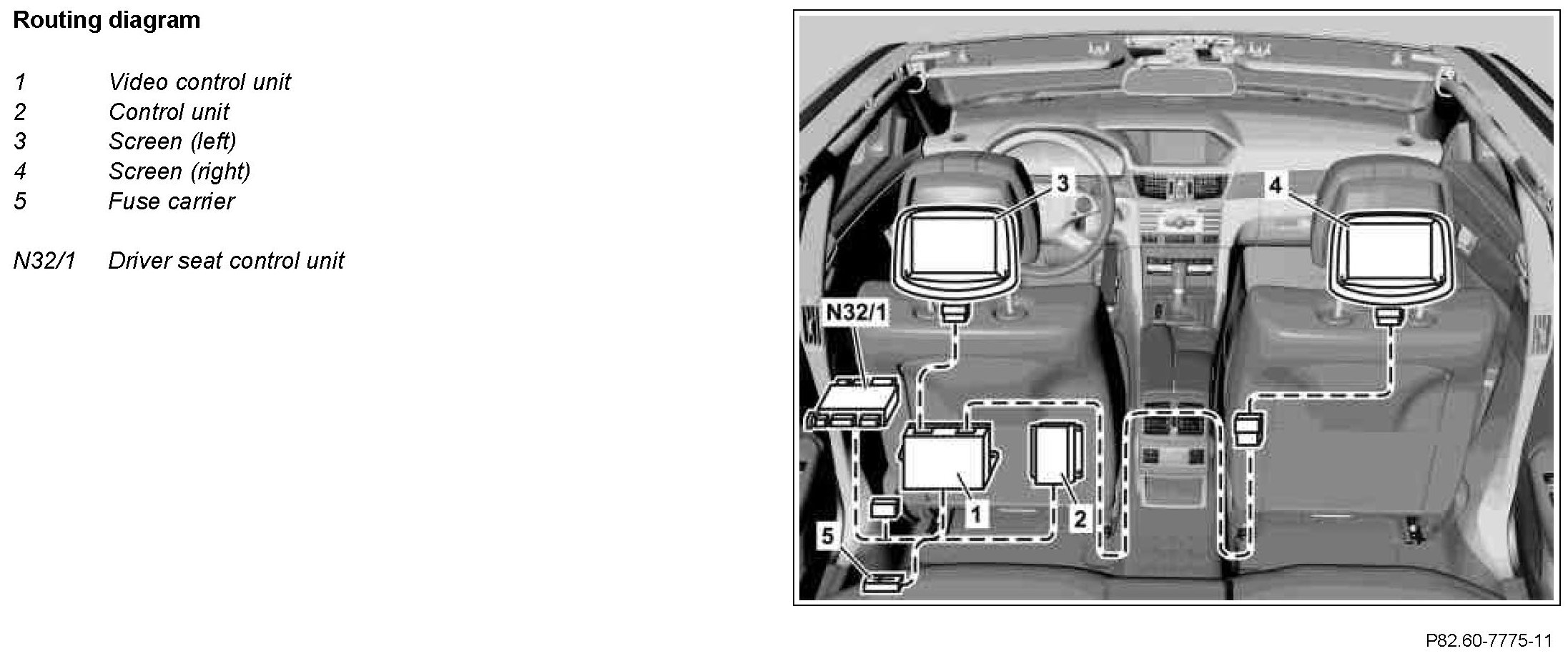

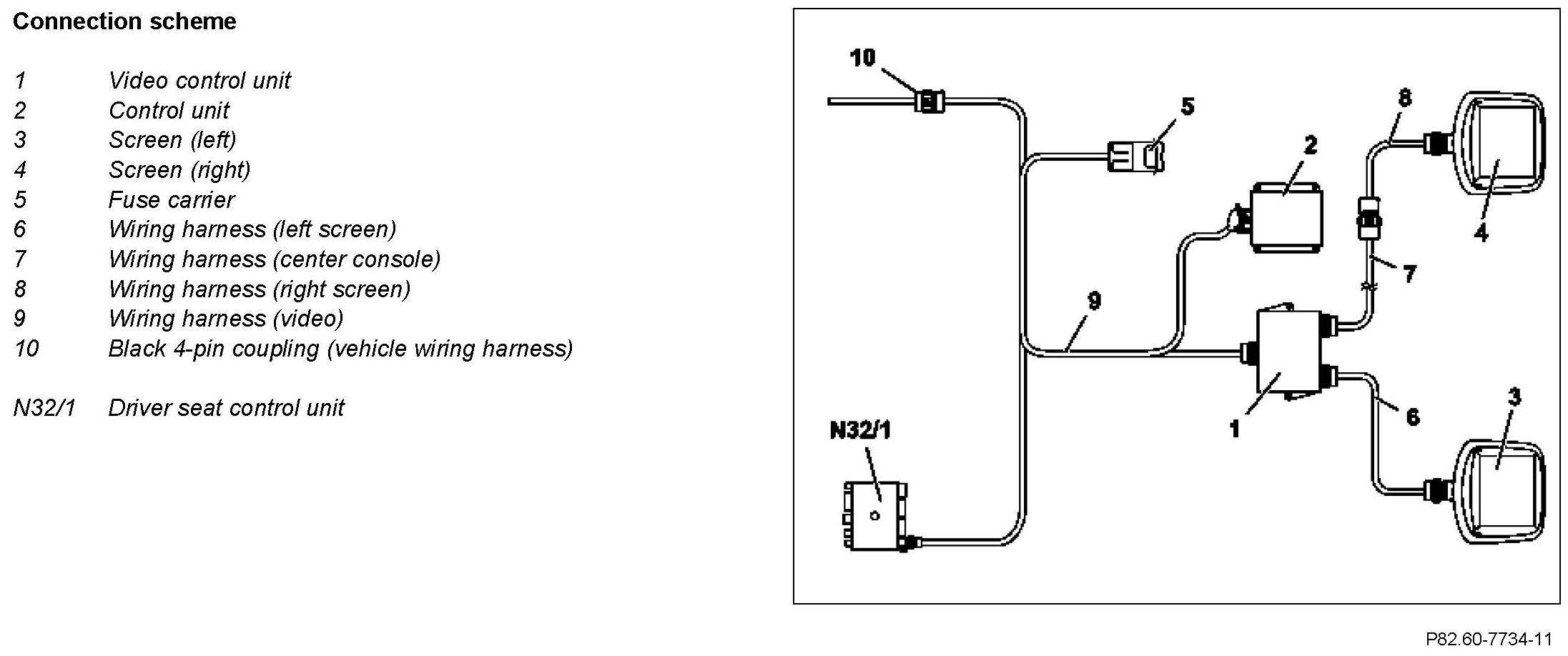

Component Identification:

Ensure that the wiring harnesses are not damaged by chafing or being trapped otherwise the appropriate wiring harness must be replaced.

Because the parts for vehicles with code (275) Memory package (driver seat, steering column, mirrors) and for vehicles without code (275) Memory package (driver seat, steering column, mirrors) are contained in the installation kit, a wiring harness is not installed.

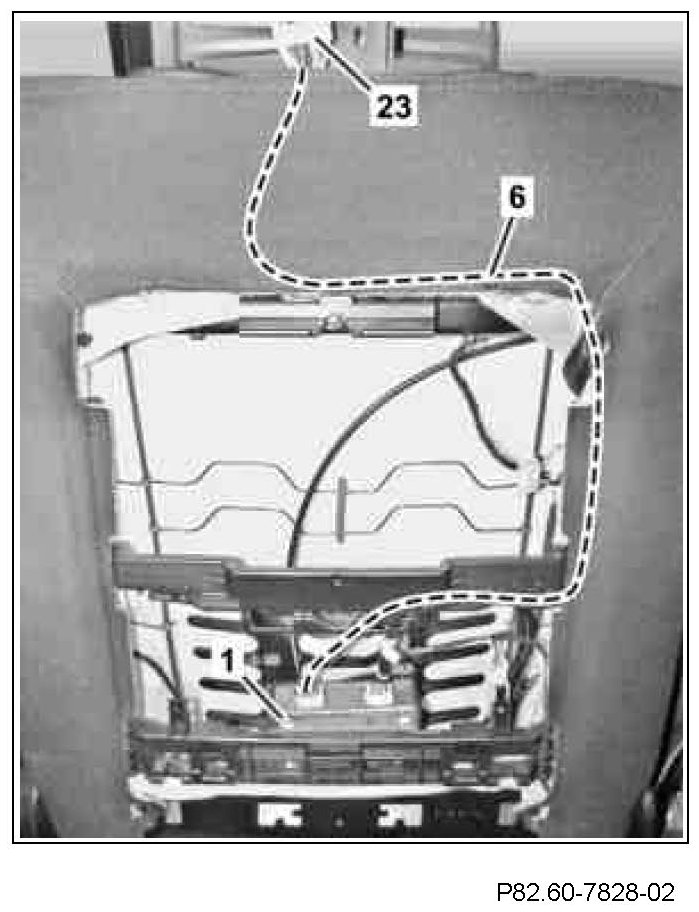

1 Route wiring harness (6) from previously created opening in backrest to video control unit (1).

The video control unit (1) is only placed in the seat and is fastened at a later point.

2 Connect wiring harness (6) to video control unit (1).

The white 12-pin coupling (23) is connected at a later point. The connections at video control unit (1) are coded and cannot be swapped.

3 Fasten wiring harness (6) at seat frame using cable ties.
4 Strap down excess length of line from wiring harness (6) using cable ties.

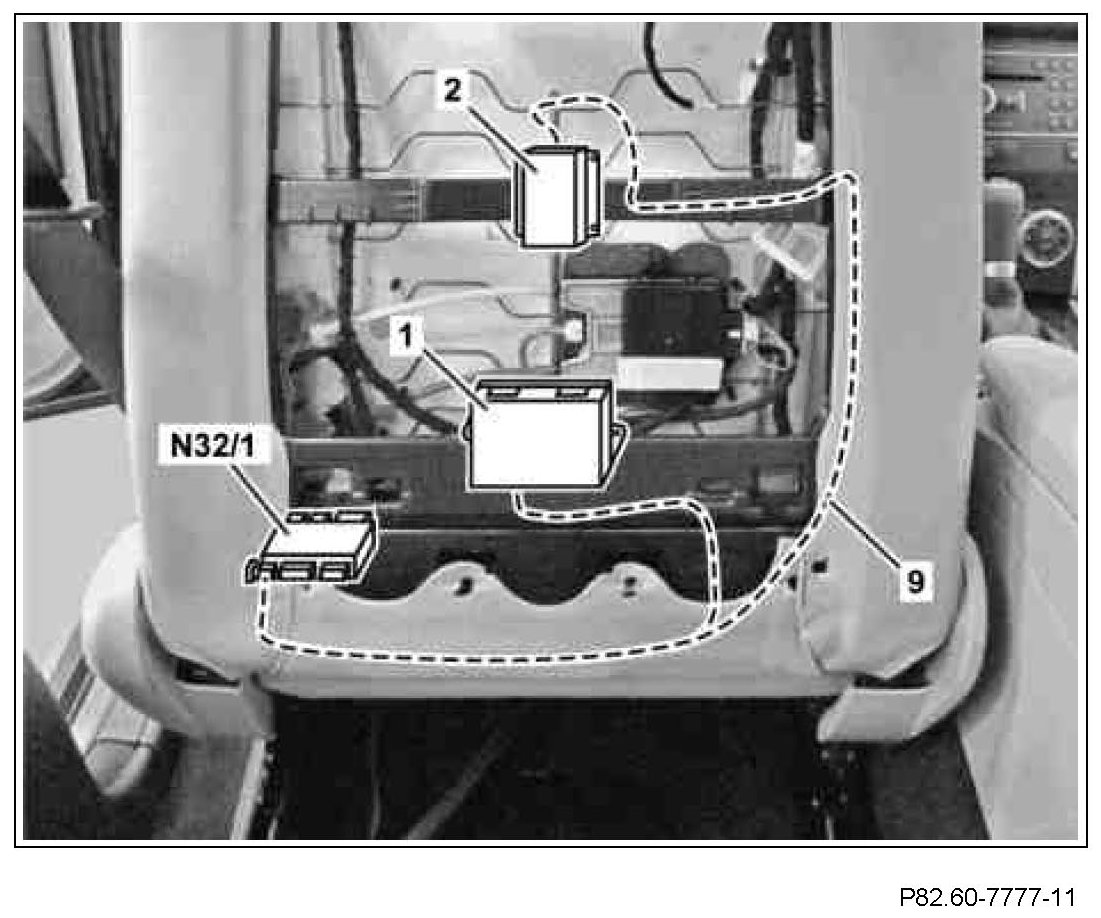

5 Route wiring harness (9) from control unit (2) to driver seat control unit (N32/1).

The control unit (2) is only placed in the seat and is installed at a later point.

6 Connect wiring harness (9) to control unit (2) and to video control unit (1).
7 Fasten wiring harness (9) at seat frame using cable ties.

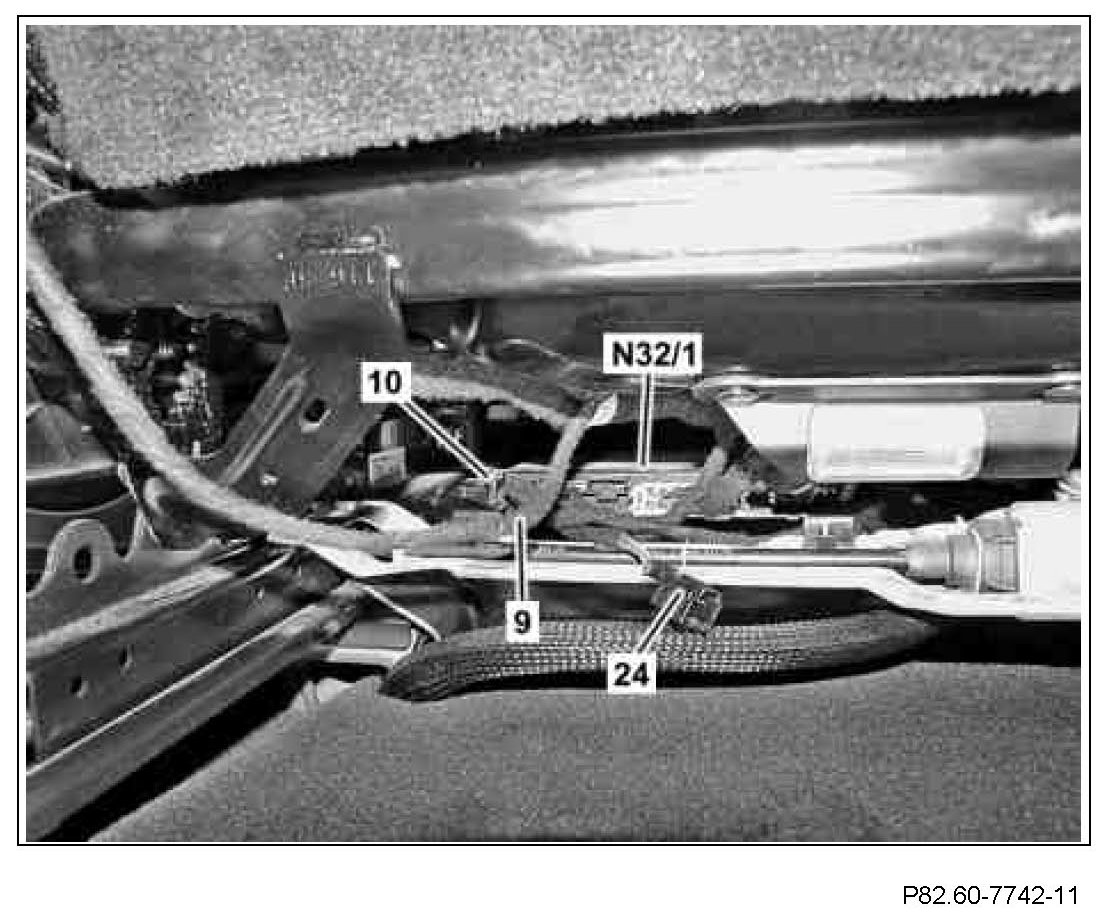

8 Detach black 4-pin coupling (10) of vehicle wiring harness from driver seat control unit (N32/1) and connect with black 4-pin connector (24) of wiring harness (9).
9 Attach black 4-pin coupling of wiring harness (9) at driver seat control unit (N32/1) at outer left slot.
10 Fasten wiring harness (9) at seat frame using cable ties.

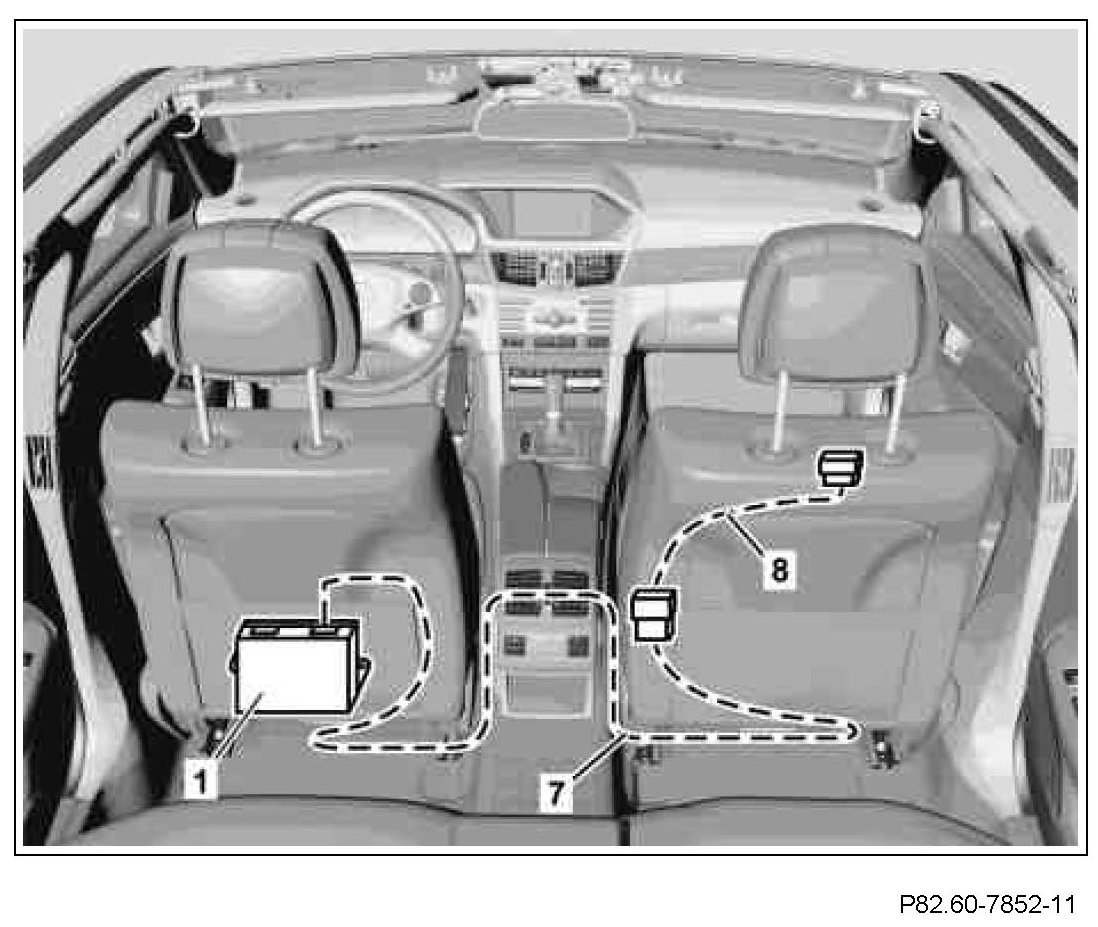

11 Connect wiring harness (7) to video control unit (1) and route to previously created opening in backrest on passenger side.

To ensure a seat adjustment in the longitudinal direction, the wiring harness (7) below the seat must be routed with a loop. Wiring harness (7) is routed below floor coverings. When routing, lift the center console and tilt the seats.

12 Connect wiring harness (7) with wiring harness (8) and fasten wiring harness (8) with cable ties.
