AN82.60-P-0016-04EW Prepare Media Interface Power Supply Wiring Harness

AN82.60-P-0016-04EW Prepare Media Interface Power Supply Wiring Harness

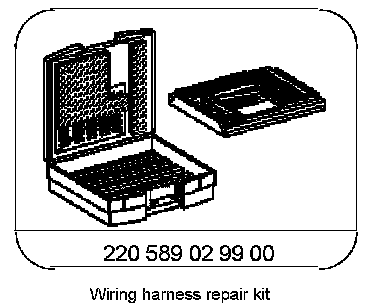

Special Tools:

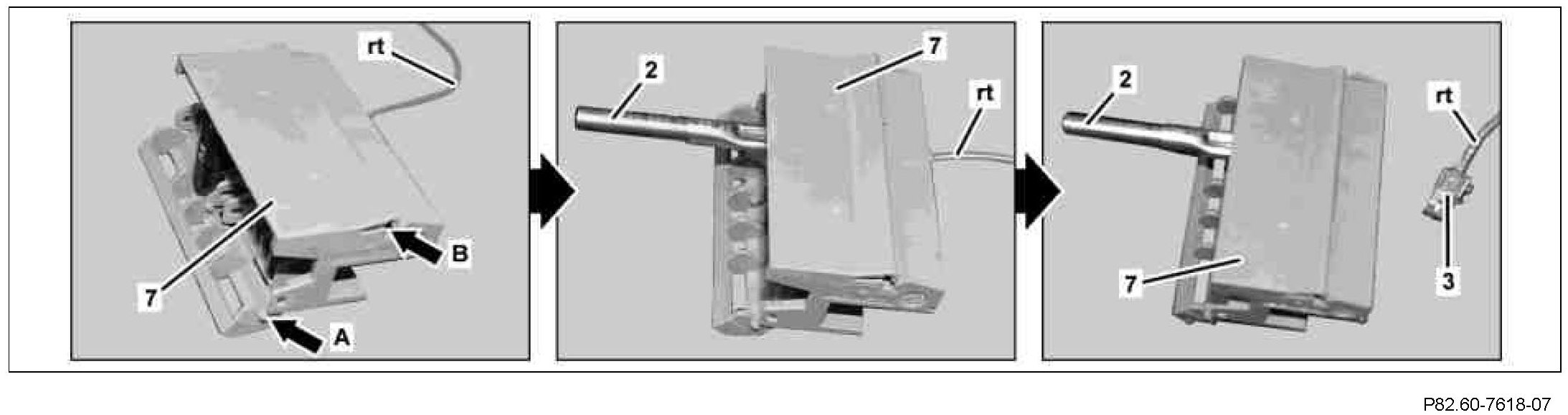

1 Open lock (arrow A) on fuse carrier (7) and remove fuse.
2 Open lock (arrow B) at fuse carrier (7).
3 Remove contact (3) with SLK 2.8 blade (2).
4 Cut off contact (3) from red power supply line (rt).
